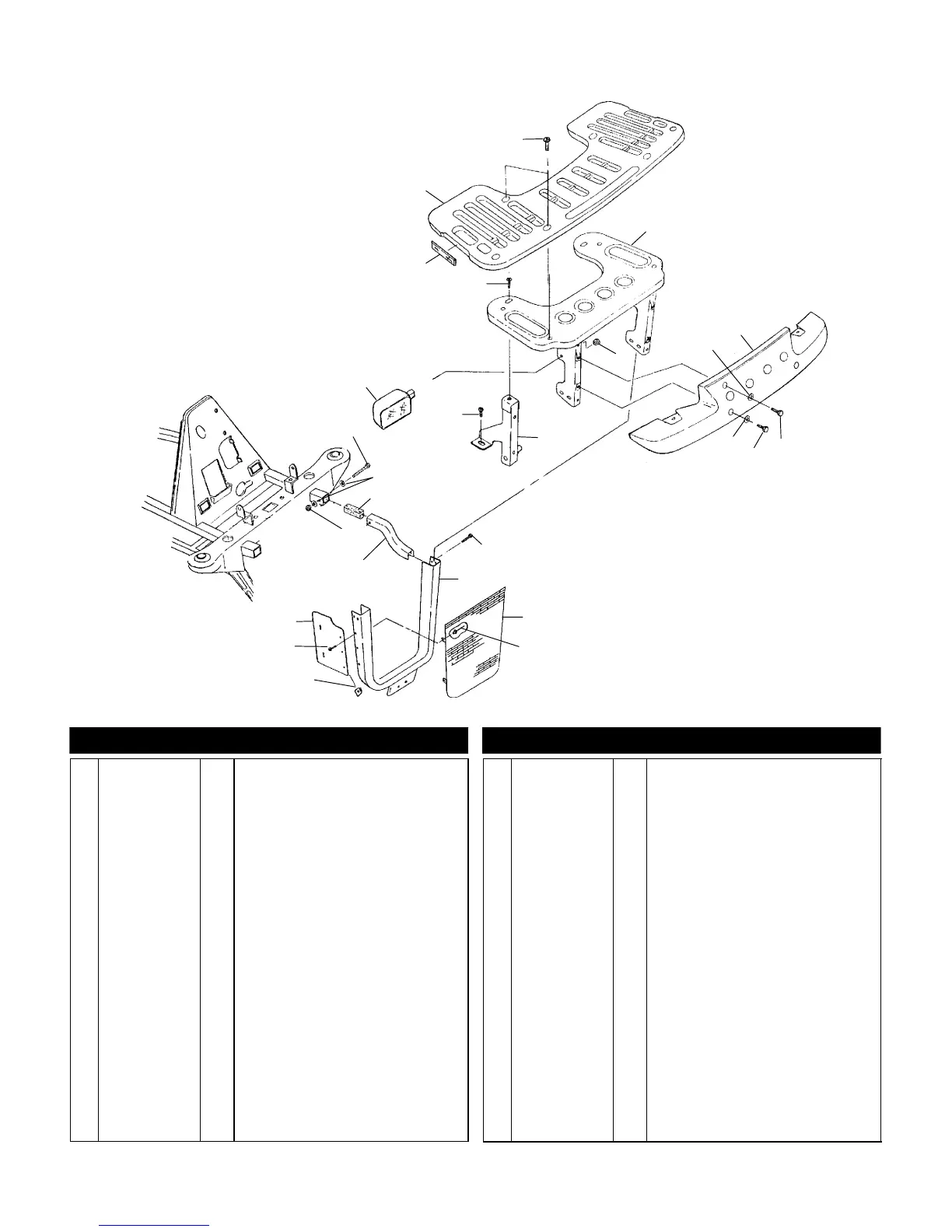

FRONT RACK and BUMPER MOUNTING
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA an d 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
13
14
15
16
17
24
12
6
5
8
9
10
18
19
20
21
22
23
2
3
4
11
4
7
1
6
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7517685 4 Screw
2 2670180 1 Asm., Front Rack
(Incl. Ref. 3 and Warning Decal)
3 2670071 2 Reflector, Amber
4 7515399 6 Screw
5 2200775 1 Kit - Front Rack Mount
6 7542324 4 Nut, Nylok
7 7558403 2 Washer
8 5432155-070 1 Bumper
9 7515391 2 Screw
10 7515390 2 Screw
11 7555954 2 Washer
12 1040554-067
1040555-067
1013210-067
1013211-067
1
1
1
1
Support, Front Rack, LH
(If built before 11/15/99)
Support, Front Rack, RH
(If built before 11/15/99)
Support, Front Rack, LH
(If built after 11/15/99)
Support, Front Rack, RH
(If built after 11/15/99)
13 7517386 4 Screw
14 2431011
2431012
4030059
1
1
2
Headlight, LH
Headlight, RH
Bulb, Replacement, 27W
15 7515382 2 Bolt
16 7558402 4 Washer
17 5810467 1 Plug, Frame
18 5241583-067 1 Guard, Brush
19 5240591-067 1 Grill, Brush Guard
20 7621330 7 Rivet
21 7670094 6 Nut, U-Type
22 7512097 6 Screw
23 5431814
5431815
1
1
Shield, Radiator Side, LH
Shield, Radiator Side, RH
24 5241398-067
5241399-067
5244623-067
5244624-067
1
1
1
1
Extension, Frame, LH
(If built before 12/01/99)
Extension, Frame, RH
(If built before 12/01/99)
Extension, Frame, LH
(If built after 12/01/99)
Extension, Frame, RH
(If built after 12/01/99)
2/00
