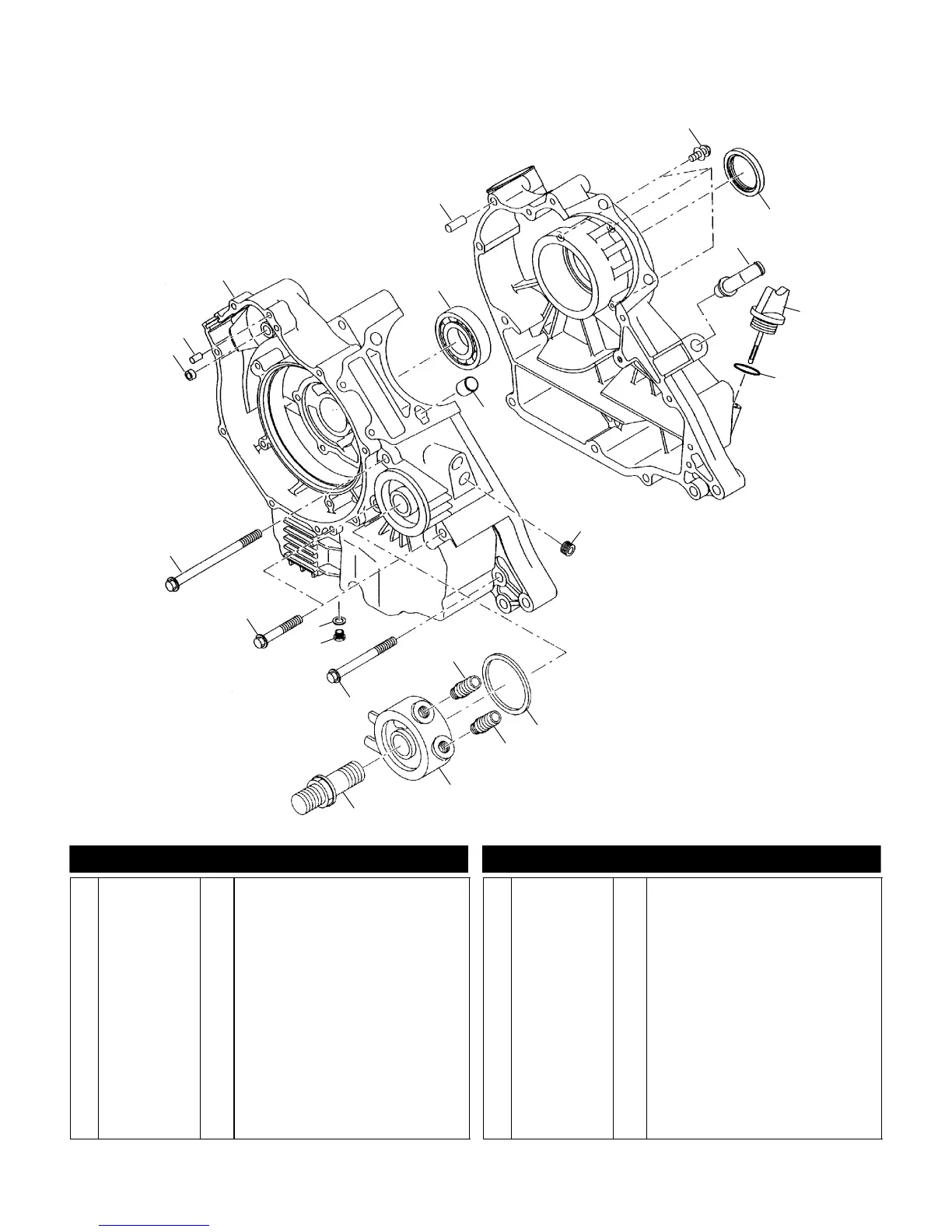

CRANKCASE
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
3
4
1
2
12
7
5
8
18
21
22
19
11
20
14
17
16
15
13
9
10
6
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 3083669 1 Bushing, Starter
2 3080103 2 Pin, Dowel
3 3086394
3086793
1
1
Asm., Crankcase (Incl. 1-5,7,8,12,
18,21,22)(If built before 3/1/99)
Asm., Crankcase (Incl. 1-5,7,8,12,
18,21,22)(If built after 3/1/99)
4 3086395 1 Bearing, Ball
5 3084840 2 Pin, Dowel
6 3084205 3 Screw and Washer
7 3084839 1 Seal, Oil
8 3085850 1 Pipe
9 3086404
3086794
1
1
Gauge, Oil (If built before 3/1/99)
Gauge, Oil (If built after 3/1/99)
10 3086405 1 O-Ring
11 3084838 2 Pin, Straight
12 3086397 1 Plug
13 3084842 1 Union
14 3086400 1 Gasket, Oil Cooler
15 3086403 1 Union
16 3086402 1 Adapter, Oil Cooler (Incl. 13,15)
17 3086401 1 Connector, Oil Cooler
18 3084841 8 Bolt, Flange
19 3083453 1 Plug
20 3082956 1 Gasket
21 3086398 2 Bolt, Flange
22 3086399 1 Bolt, Flange
3/99
