Polaris 325 MAGNUM 4X4 HDS A00CD32FA - Transmission Mounting

D2

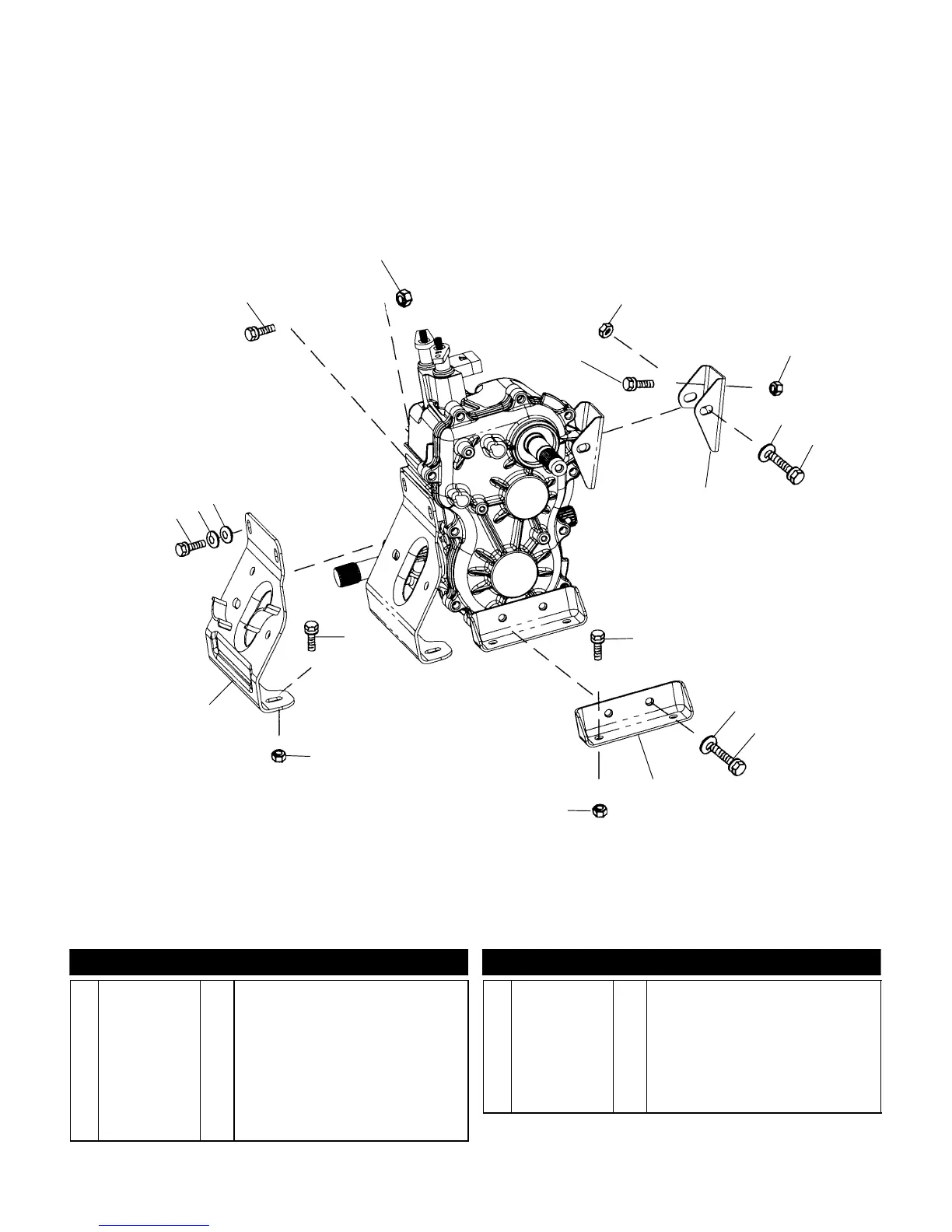

TRANSMISSION MOUNTING
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
1
2
3
4
9
8
7
7
8
9
5
2
1
5
6
10
11
2
2
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
-- -- -- -- -- -- -- 1 Asm., Main Gearcase (See Main
Gearcase Pg. C10 for Details)
1 7515417 2 Screw
2 7547108 6 Nut
3 7515398 2 Screw
4 7542321 2 Nut
5 7555976 3 Washer
6 5242819-067 1 Mount, Rear Transmission
7 7517289 4 Screw
8 7552603 4 Washer
9 7515522 4 Bolt
10 5242820-067 1 Mount, Transmission
11 -- -- -- -- -- -- -- 1 Mount, Engine,Rear
(See Engine Mounting Pg. B2, Ref.
18)
11/98
