Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

B13

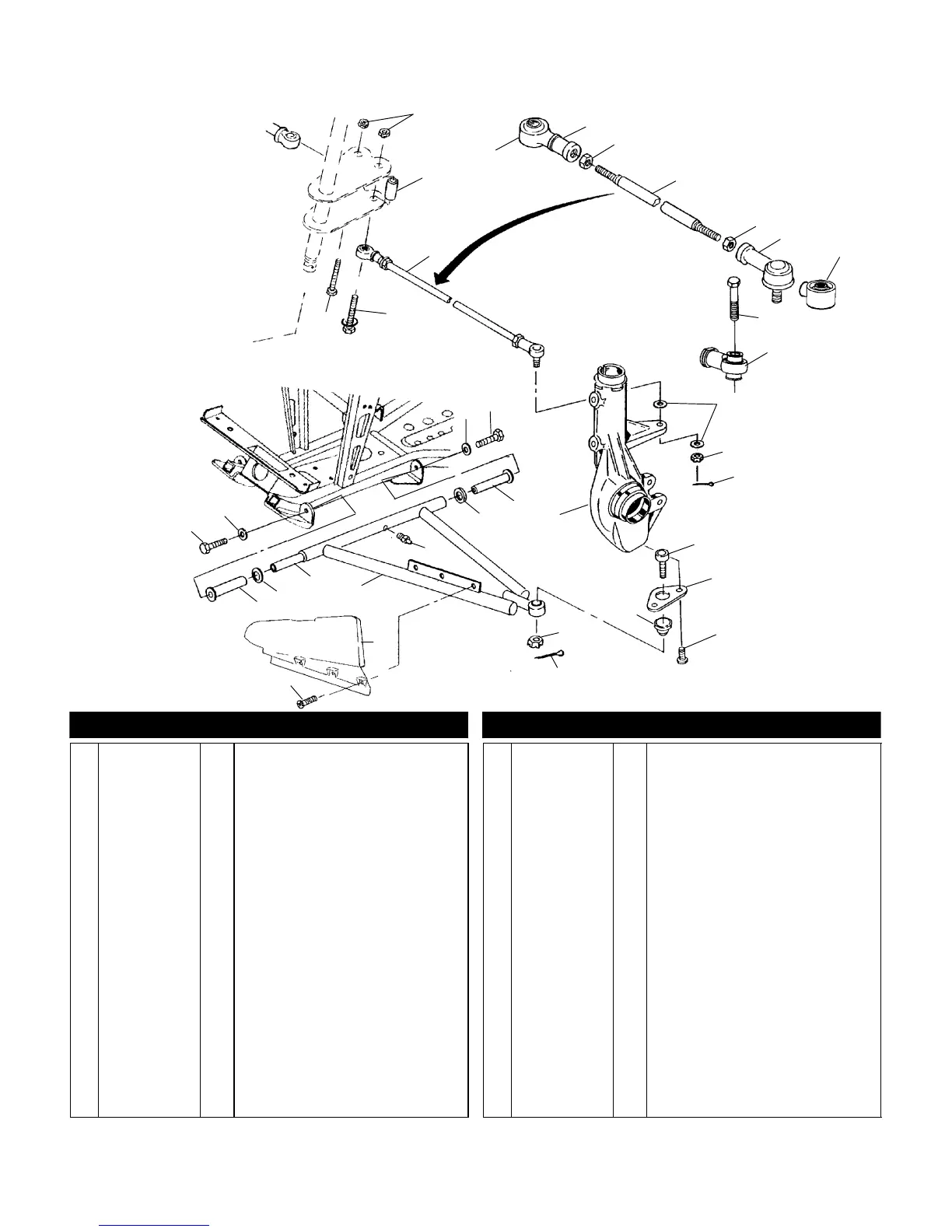

A-ARM/STRUT MOUNTING
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
1
4
5
6
7
8
9
3
12
13
14
27
15
16
18
17
19
21
25
26
24
23
22
28
29
29
28
23
22
20
31
30
2
14
9
11
10
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7542403 2 Nut, FLEXLOC
2 5333367 1 Bushing
3 1820567
1820805
2
2
Asm., Tie Rod
(Incl. 4-9)(If Built before 8/16/99)
Asm., Tie Rod
(Incl. 4-9)(If Built after 8/16/99)
4 5411291 2 Boot, Seal, Rod End
5 7061034 2 Rod End
6 7542711 2 Nut
7 5020926 2 Tie Rod
8 7547028 2 Nut, LH
9 7061033
7061054
2
2
Rod End, LH (If Built before 8/16/99)
Rod End, LH (If Built after 8/16/99)
10 5411920 1 Boot, Seal, Rod End
11 7517674 2 Bolt (If Built after 8/16/99)
12 7555806
7556099
4
4
Washer, Flat (If Built before 8/16/99)
Washer, Flat (If Built after 8/16/99)
13 7546904 2 Nut
14 7661203 4 Pin, Cotter
15 7080927 2 Joint, Ball
16 5211121 2 Bracket, Ball Joint
17 7512284 4 Screw
18 5410548 2 Boot, Rubber
19 7542438 2 Nut, Castle
20 5431150
5431149
1
1
Shield, CV Joint, LH
Shield, CV Joint, RH
21 7517756 6 Screw
22 5433066 4 Bushing, A-Arm, Long
23 5020677 4 Bushing
24 5020681 2 Shaft, A-Arm
25 2201609
2201610
1
1
Kit - A-Frame, LH
Kit - A-Frame, RH
26 7080433 2 Fitting, Lubrication
27 -- -- -- -- -- -- -- -- 1 Asm., Heavy Hubstrut
(See Front Strut Pg. B6, Ref. 15)
28 7512492 4 Screw
29 7552603 4 Washer, Spring Lock
30 7517527 1 Bolt
31 7515415 1 Screw
10/00
