Polaris 325 MAGNUM 4X4 HDS A00CD32FA - Rear Rack Mounting

A8

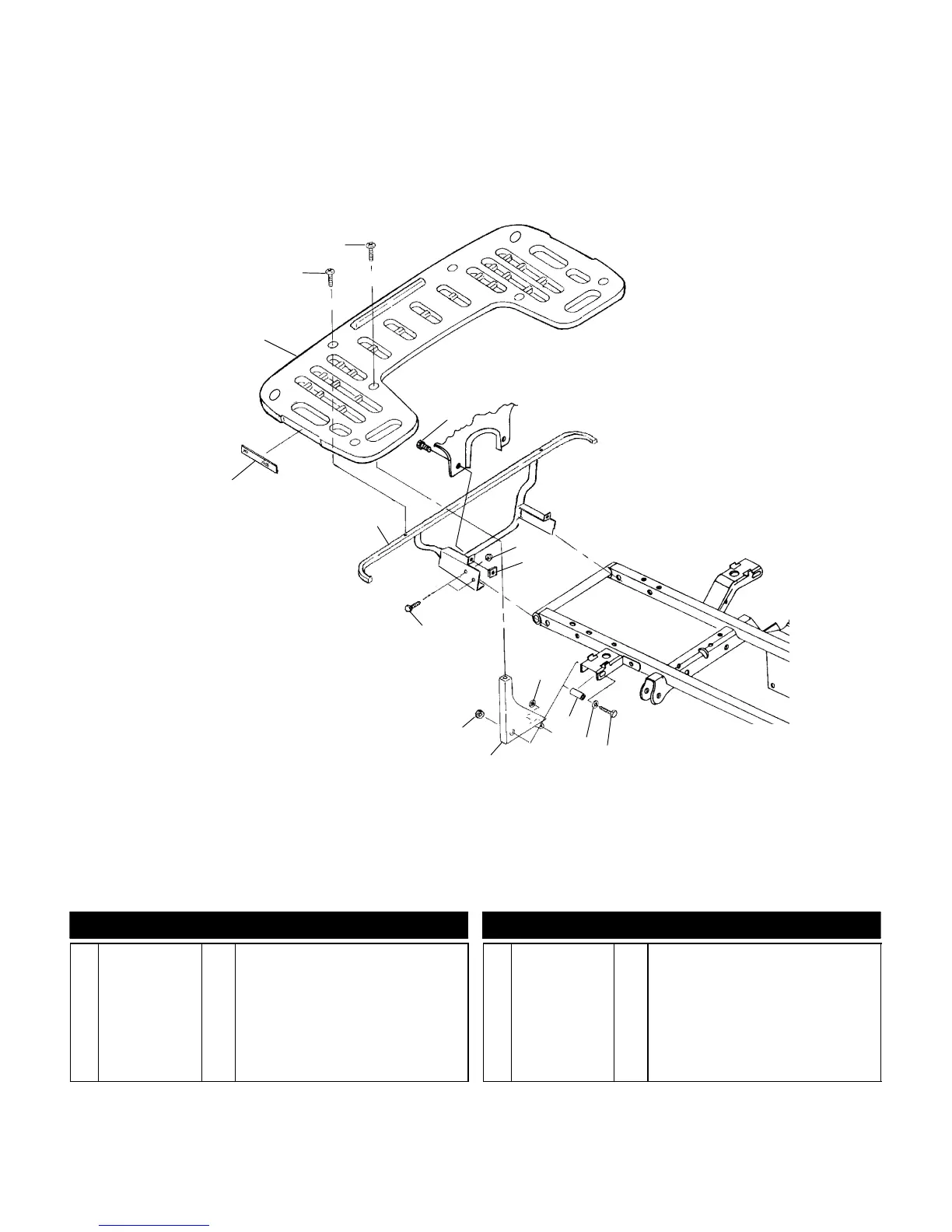

REAR RACK MOUNTING
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA an d 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
4
3
1
2
8
6
9
11
12
10
10
6
5
7
2
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7517685 2 Screw
2 7517686 4 Screw
3 2670174 1 Asm., Rack, Rear
(Incl. Ref. 4 and Warning Decal)
4 2670070 2 Reflector, Red
5 1040490-067 1 Support, Rear Rack
6 7542324 8 Nut, Nylok
7 7670096 2 Nut, Chimney
8 7512329 4 Bolt
9 1040524-067
1040525-067
1
1
Mount, Front, Rear Rack, LH
Mount, Front, Rear Rack, RH
10 7558402 2 Washer
11 5333332-067 4 Spacer
12 7515385 4 Screw
