Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

C3

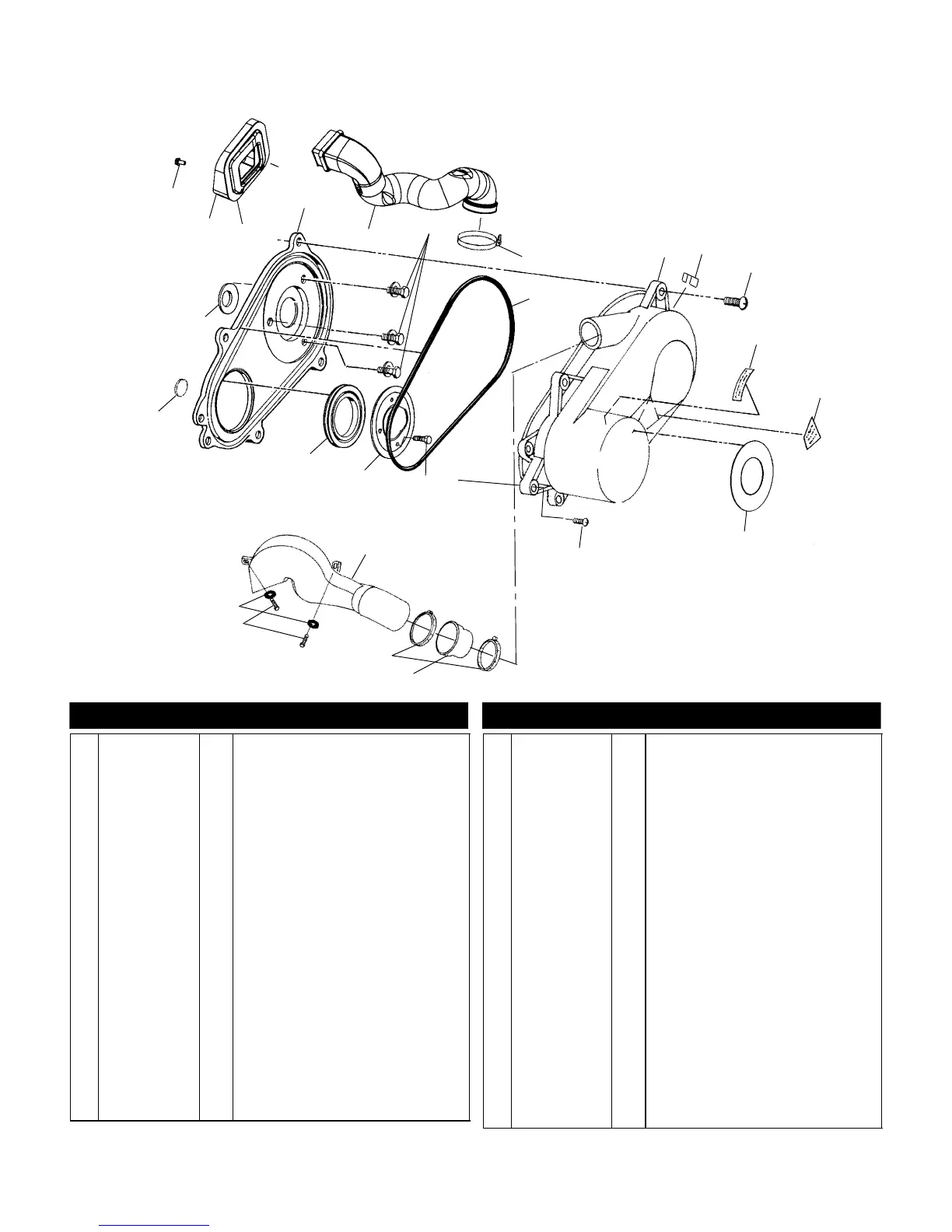

CLUTCH COVER
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
4
25
8
9
11
12
13
14
10
16
21
22
23
5
7
15
6
17
19
20
1
3
2
24
18
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7512232 2 Screw
2 2632116 1 Foam, Clutch Air Inlet
3 5433453 1 Plate, Backing
4 2201520
2201676
1
1
Kit - Inner Clutch Cover (Incl. 8,11,15)
(If built before 1/03/00)
Kit - Clutch Cover, Inner
(If built after 1/03/00)
5 5433363 1 Duct, Inlet, Down Tube
6 7517601
7517599
3
5
Bolt and Washer (If built before
1/03/00)
Bolt and Washer (If built after 1/03/00)
7 7080909 1 Clamp, Narrow Band
8 5521301 1 Seal, Clutch Cover
9 5432849
5433540
5433451-328
1
1
1
Cover, Clutch, Outer
(If built before 2/13/99)
Cover, Clutch, Outer
(If built before 1/03/00)
Cover, Clutch, Outer
(If built after 1/03/00)
10 7670051 1 Clip, Clutch Cover
11 7512093
7512094
5
5
Screw (If built before 1/03/00)
Screw (If built after 1/03/00)
12 7074946
7078689
1
1
Decal - Clutch Cover
(If built before 10/04/99)
Decal - Warning, Clutch Cover
(If built after 10/04/99)
13 7077377 1 Decal - Engine/Clutch Modification
14 7074782
7077666
1
1
Decal - “Automatic Transmission”
(AA)(AC)
Decal - “Automatic/EBS’ (FA)(FB)
15 7512094 9 Screw
16 5411489 1 Boot, Duct
17 7080761 2 Cable Tie
18 7558301 2 Washer, Flat
19 7517386 2 Screw
20 5433172
5433744
1
1
Duct, Air Outlet (If built before 11/05/99)
Duct, Air Outlet (If built after 11/05/99)
21 -- -- -- -- -- -- -- 3 Screw and Washer
(See Crankcase Pg. D3, Ref. 6)
22 5240409-067 1 Bracket, Retainer, Seal
23 5410575 1 Seal, Cover Case
24 5411795 1 Stopper, Inner Clutch Cover
25 5410489
5411901
1
1
Seal, Cover Case (If built before 1/03/00)
Seal, Clutch Cover (If built after 1/03/00)
