B6

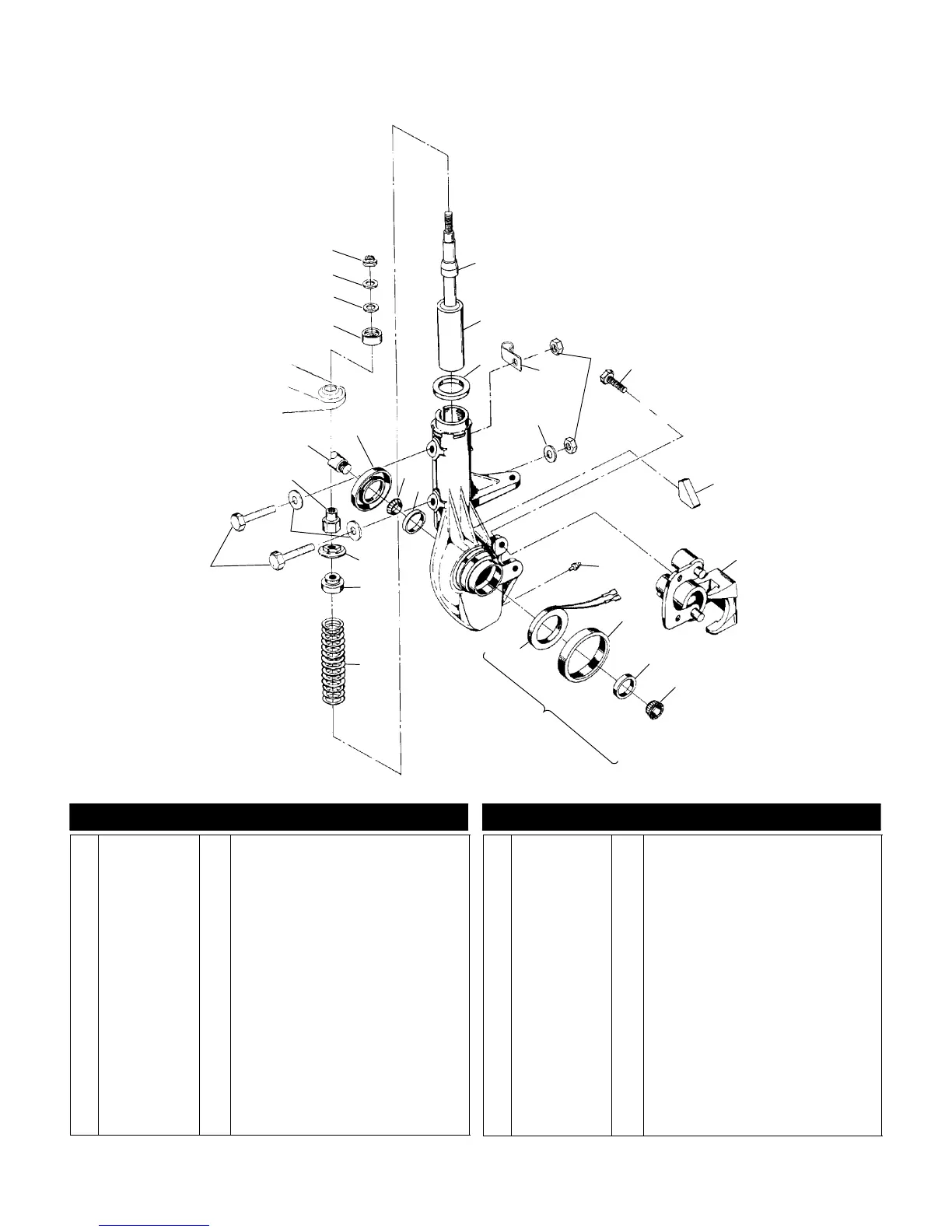

FRONT STRUT
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
2
3
5
6
7
8
9
10
11
12
14
15
13
16
17
18
20
4
19
21
22
23
24
25
26
10
11
4
1
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 5411608 2 Bumper
2 7041761 2 Strut, Front
3 5211115 2 Washer
4 7558402 6 Washer
5 7080573 2 Clamp, Rubber Coated
6 7542303 4 Nut
7 7517445 4 Screw
8 5810439 2 Retainer, Strut Casting Wire
9 -- -- -- -- -- -- -- 1 Asm., Front Brake Caliper, RH (See
Front Brake Pg. B8 for Details)
10 3554509 4 Bearing, Tapered Roller
11 3554507 4 Bearing, Tapered Roller Cup
12 5222193 2 Sleeve, Hubstrut Seal
13 7080306 2 Fitting, Lubrication
14 2410133 2 Coil, Magnetic
15 2201311
2201312
1
1
Asm., Hubstrut, LH (32mm)
(Incl. 8,11-14,2 2)
Asm., Hubstrut, RH (32mm)
(Incl. 8,11-14,2 2)
16 7041375-067 2 Spring, Coil
17 5243364 2 Retainer, Spring
18 5432871 2 Ball, Pivot, Bottom
19 7515339 4 Bolt
20 5132062 2 Spacer
21 -- -- -- -- -- -- -- 1 Kit - Drive Shaft w/Sleeve
(See CV Joint - BTB Pg. B4, Ref. 13)
22 3610028 2 Seal, Hubstrut
23 5432872 2 Ball, Pivot, Top
24 5810291 2 Spacer, Rubber
25 7555749 2 Washer
26 7547104 2 Nut
