Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

D6

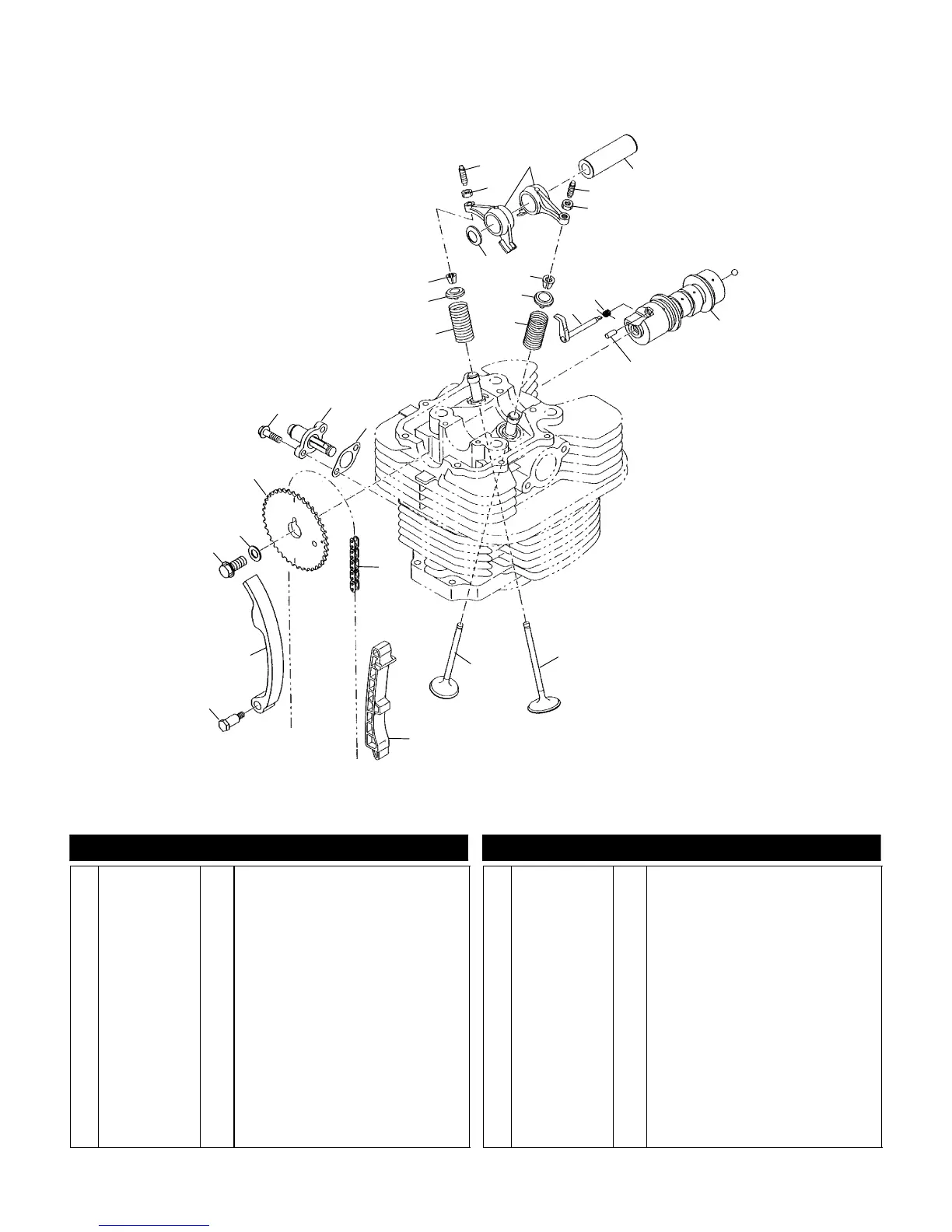

INTAKE and EXHAUST
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
11
12
19
9
10
13
14
8
7
6
4
2
16
20
2
15
23
18
17
21
22
24
1
3
1
7
6
8
5
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 3084911 2 Screw, Adjusting
2 3084912 2 Nut
3 3084910 2 Asm., Rocker Arm (Incl. 1,2)
4 3086442 1 Shaft, Rocker
5 3085836 1 Washer
6 3084908 4 Collet, Valve
7 3084907 2 Retainer, Spring
8 3084906 2 Spring, Valve
9 3086439 1 Lever, Release
10 3086440
3086804
1
1
Spring, Return (If built before 3/1/99)
Spring, Return (If built after 3/1/99)
11 3086438
3086803
1
1
Camshaft (Incl. 9,10,12)(If built before
3/1/99)
Camshaft (Incl. 9,10,12)(If built after
3/1/99)
12 3084899 1 Pin, Dowel
13 3085778 1 Valve, Intake
14 3086441 1 Valve, Exhaust
15 3086445 1 Guide, Chain
16 3086444 1 Chain, Timing
17 3086448 1 Gasket, Tensioner
18 3086493 1 Tensioner
19 3083361 2 Bolt, Flange
20 3086443 1 Sprocket 2
21 3083663 1 Washer
22 3086449 1 Bolt, Flange
23 3086446 1 Lever
24 3084924 1 Bolt, Pivot
7/99
