Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

B8

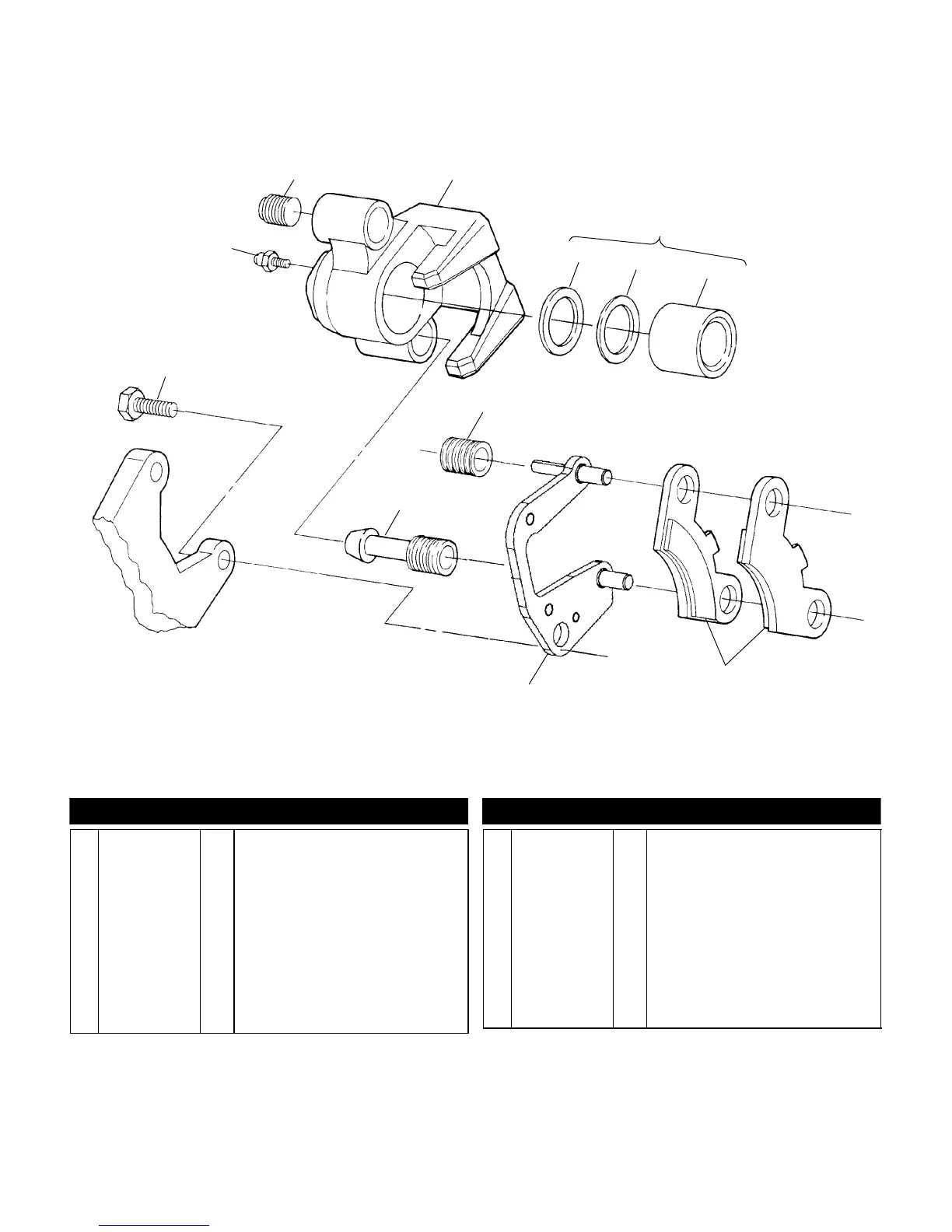

FRONT BRAKE
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
1
2
3
8
9
11
10
12
4
5
6
7
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1910271 1 Asm., Front Brake Caliper, LH
(Incl. 1-7,9,10)
1910264 1 Asm., Front Brake Caliper, RH
(Incl. 1-7,9,10)
1 7080352 1 Screw, Bleeder
2 7515489 1 Screw, Socket Set
3 5131115
5131116
1930642
1
1
1
Caliper,Brake,LH
Caliper,Brake,RH
Kit - Front Brake Boot
4 1930665 1 Kit - Piston and Insulator Seal (Incl. 5-7)
5 5410779 1 Ring, Molded Square (.094)
6 5410780 1 Ring, Molded Square (.103 x .134)
7 5132294 1 Piston, Brake, Long
8 2200465
2200901
2201149
1
1
1
Kit - Front Brake Pad, General Duty
Kit - Front Brake Pad, Severe Duty
Kit - Front Brake Pad, Soft Duty
9 1910265
1910412
1
1
Mount, Caliper (If built before 7/09/99)
Mount, Caliper (If built after 7/09/99)
10 5410495 1 Boot, Bushing
11 5410494 1 Boot, Pin Seal
12 -- -- -- -- -- -- -- 4 Scr ew (See Front Strut Pg. B6, Ref. 7)
