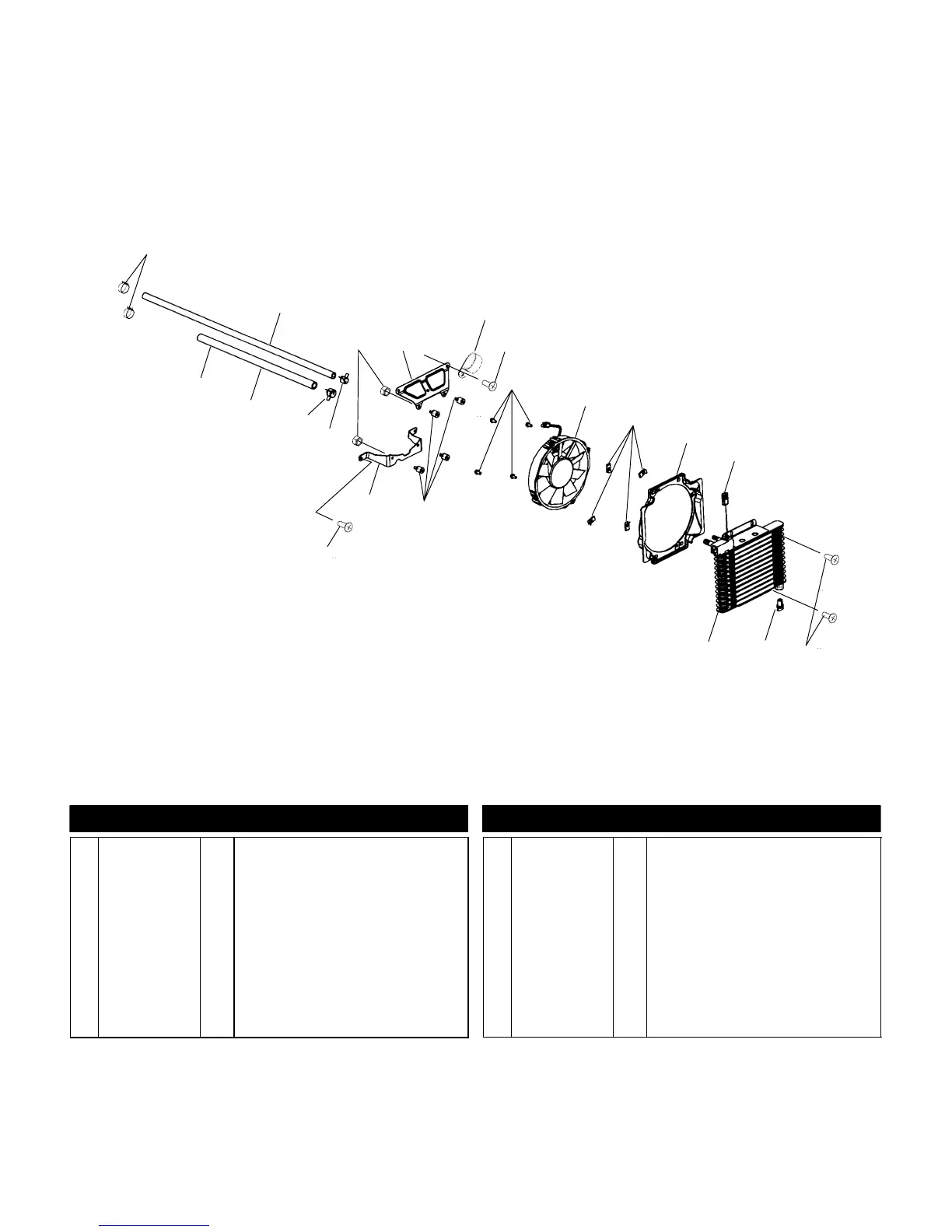

OIL COOLING (If built after 1/01/00)
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA an d 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
11
2
10
8
17
16
5
12
7
9
4
14
13
6
15
1
3
18
6
6
19
Ref. Part No. Qty. Description
Ref. Part No. Qty. Description
1 7080474 2 Clamp, Hose
2 5411813 1 Hose, Inlet
3 7542122 4 Nut
4 5243783-067 1 Bracket, Top
5 7080869 1 Clamp, Rubber Coated
6 7515158 8 Screw
7 7517659 4 Screw
8 2410157 1 Motor, Fan
9 7670111 4 U-Clip
10 5433353 1 Shroud
11 4010274 1 Thermister
12 7052244 1 Plug, Drain
13 1240064 1 Cooler, Oil to Air
14 3021186 4 Mount, Rubber
15 5244069-067 1 Bracket, Bottom
16 7080862 1 Clamp
17 7080866 1 Clamp, Hose
18 5411768 1 Hose, Outlet, Flared
19 8450086-07 AR Tubing, Convoluted
11/99
