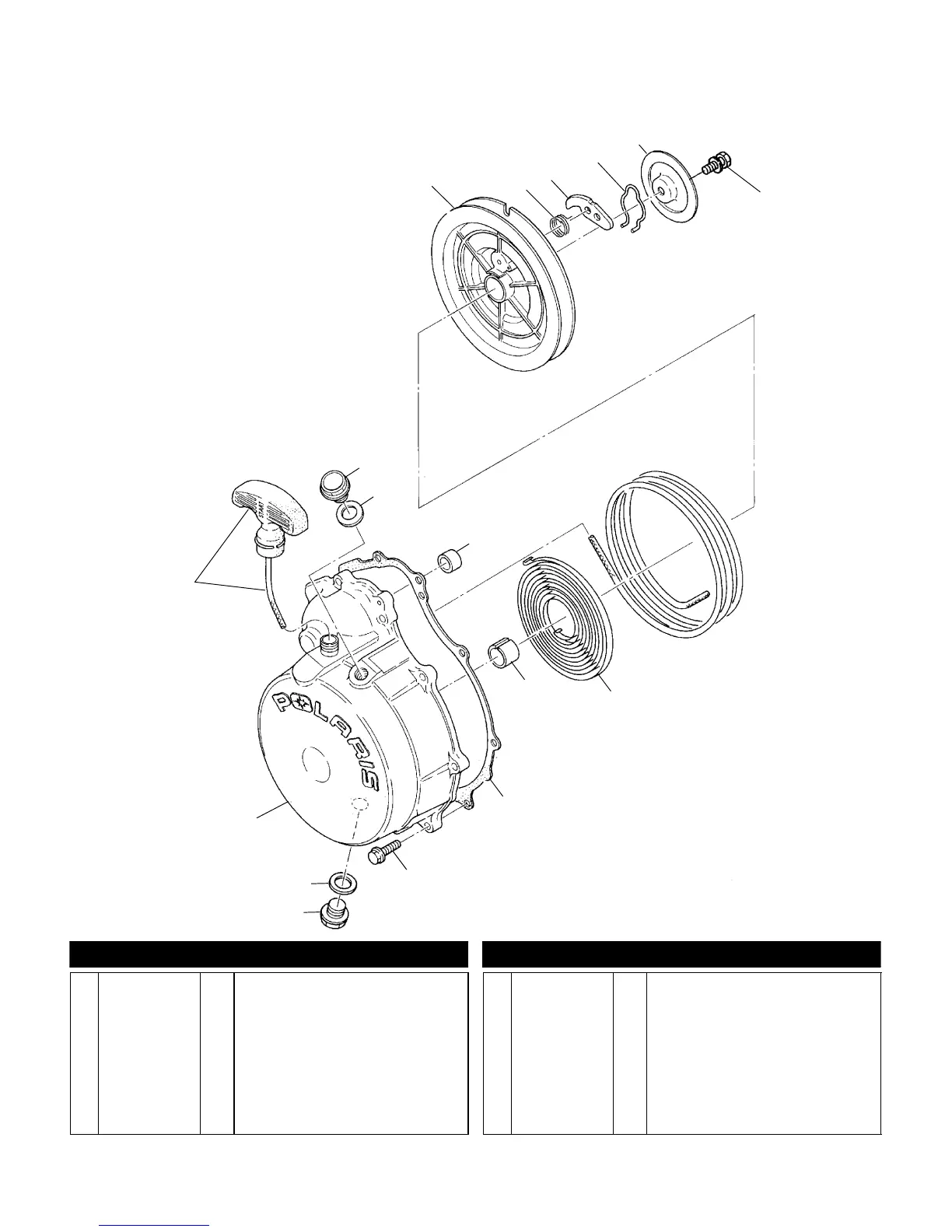

RECOIL STARTER
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
14
6
4
7
10
5
3
1
2
11
8
12
13
15
9
8
7
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 3084822 1 Reel
2 3083463 1 Spring, Return
3 3083378 1 Ratchet
4 3083379 1 Spring, Friction
5 3084744 1 Plate, Friction
6 3085266 1 Bolt and Washer
7 3083453 2 Plug
8 3082956 2 Gasket
9 3083669 1 Bushing, Starter
10 3083185 1 Spring, Spiral
11 3084750 1 Bushing
12 3084933 1 Gasket, Recoil
13 3084877 9 Bolt, Flange
14 3085856
3085943
1
1
Asm., Recoil (Incl. 1-6,9-11,14,15)
Starter Case (Incl. 11)
15 3085083 1 Rope
11/98
