Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

C12

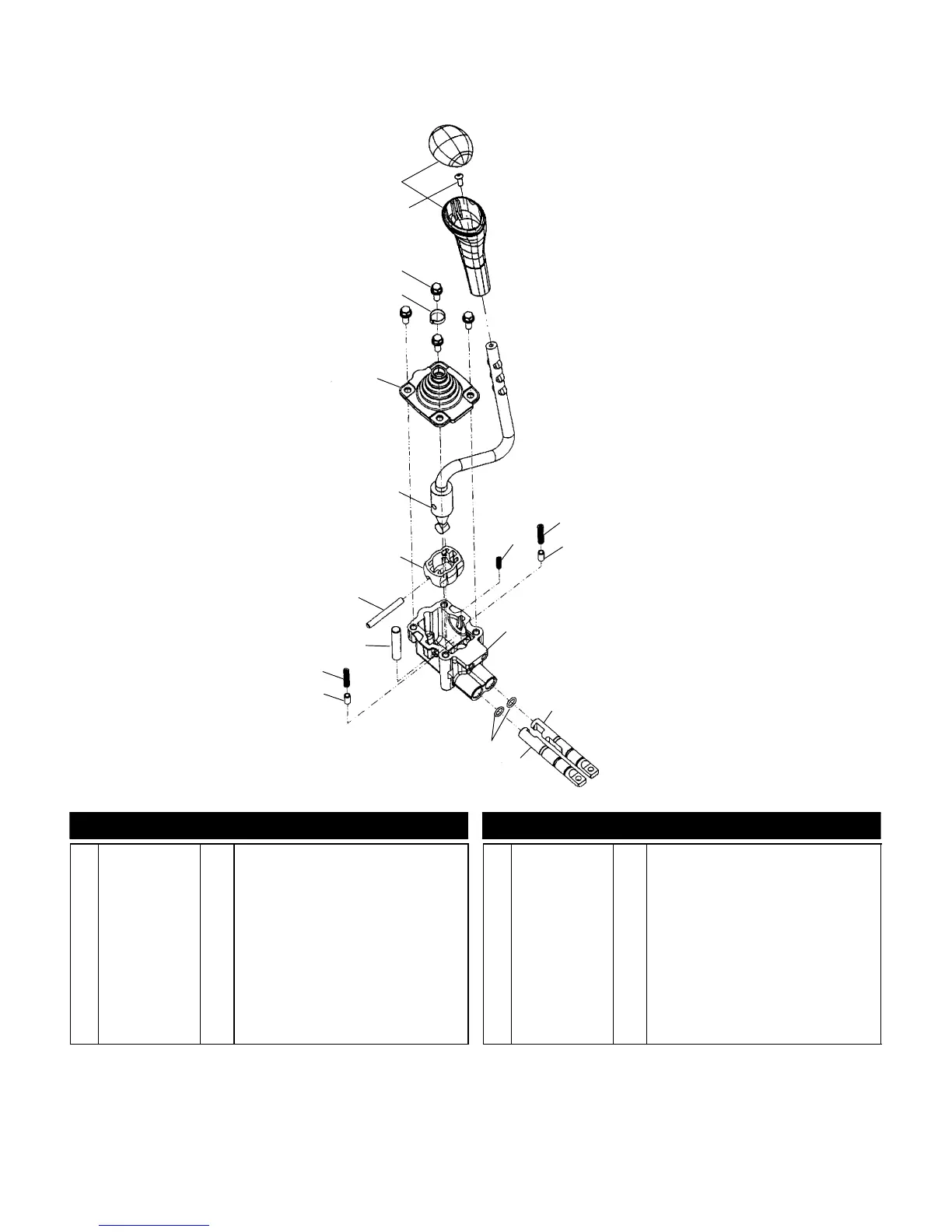

GEAR SELECTOR
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
2
4
3
5
7
8
6
11
16
10
15
1
13
14
9
12
10
11
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1341271
1341337
1
1
Asm., Gear Selector
(Incl. 1-16)(AA)(CA)(FB)
Asm., Gear Selector (Incl. 1-16)(FA)
1 3233195
3233767
1
1
Asm., Knob (AA)(CA)(FB)
Asm., Knob (FA)
2 7512024 1 Screw
3 3233649 4 Screw
4 3233131 1 Strap, Wire
5 3233648 1 Cover, Gear Selector Boot
6 3233658
3233766
1
1
Handle, Gear Selector (AA)(CA)(FB)
Handle, Gear Selector (FA)
7 3233646 1 Sphere, Plastic
8 3233754 1 Pin, Groove
9 3233644 1 Pin, Dowel
10 3233642 2 Spring, Detent
11 3233060 2 Bullet, Detent
12 3233076 2 O-Ring
13 3233639 1 Slide, Low (AA)(CA)(FB)
14 3233640 1 Slide, High/Reverse (FA use Qty. 2)
15 3233641 1 Body, Gear Selector
16 3233643 1 Spring, Centering
