Polaris 325 MAGNUM 4X4 HDS A00CD32FA - Oil Pump and Oil Filter

D8

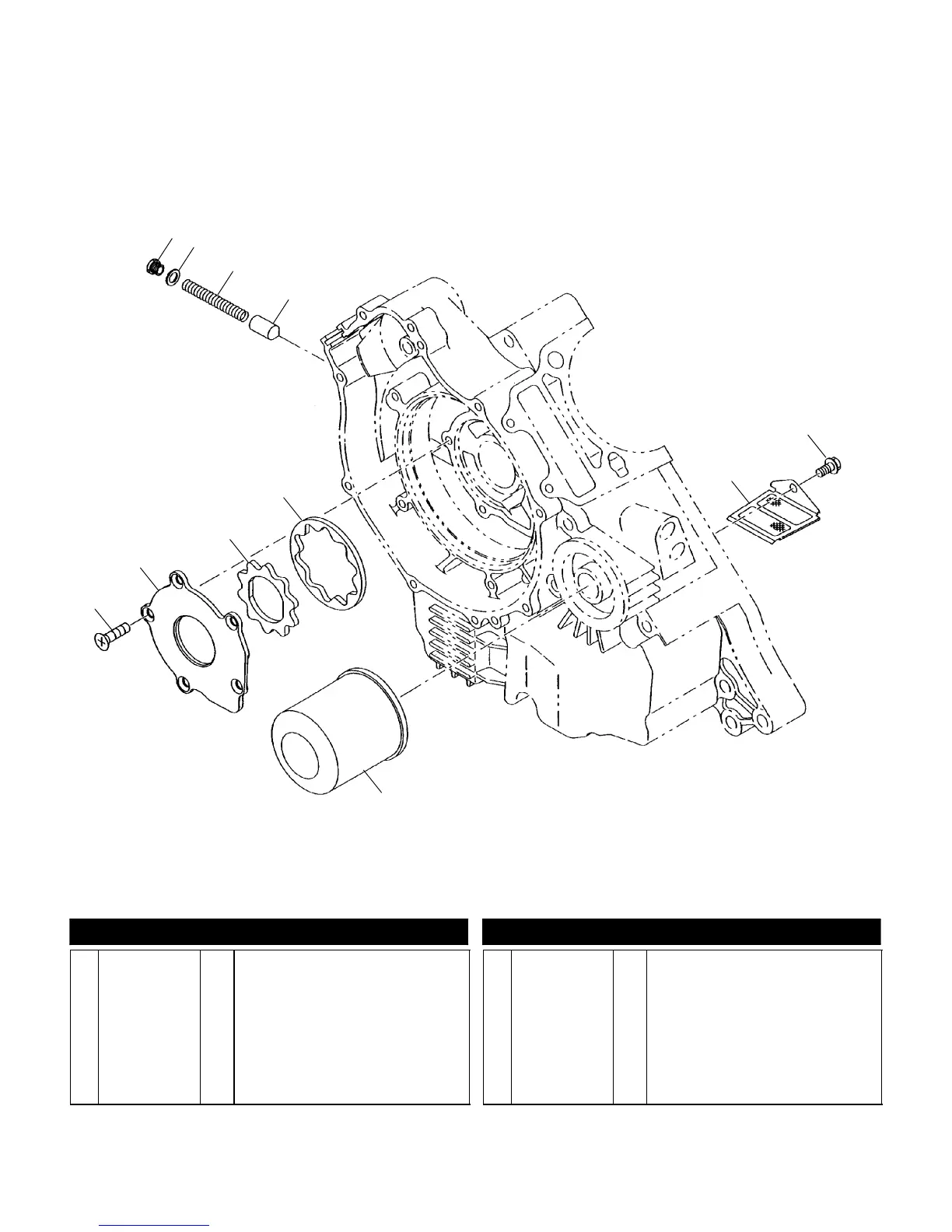

OIL PUMP and OIL FILTER
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
11
9
1
10
8
2
4
7
5
6
3
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 3083453 1 Plug
2 3082956 1 Gasket
3 3086455 1 Spring
4 3086222 1 Valve, Relief
5 3083568 1 Bolt, Flange
6 3086454
3087015
1
1
Strainer, Oil
Strainer, Oil (For Engine Serial Num-
bers 35878-39057 Only)
7 3084963 1 Filter, Oil
8 3086451
3086805
5
5
Screw (If built before 3/1/99)
Screw (If built after 3/1/99)
9 3086450 1 Cover, Oil Pump
10 3086452 1 Rotor, Inner
11 3086453 1 Rotor, Outer
7/00
