Polaris 325 MAGNUM 4X4 HDS A00CD32FA User Manual

A14

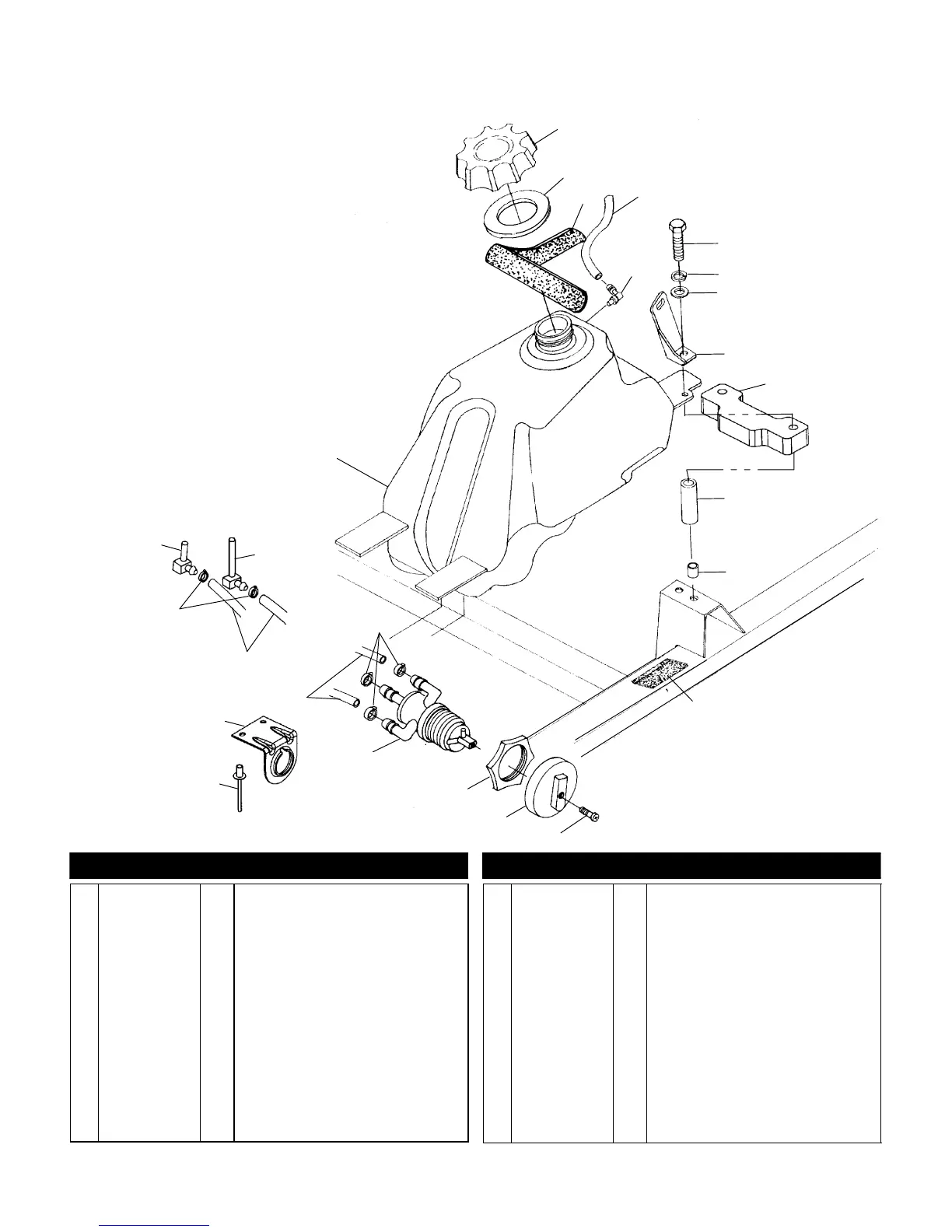

FUEL TANK
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA an d 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
24
5
22
23
9
16
15
1
11
2
13
3
17
21
14
7
4
20
8
6
21
12
20
19
18
10
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 5430725 1 Cap, Gas Tank
2 5810144 1 Gasket, Fuel Cap
3 5811899 1 Seal, Foam
4 8360009-600 AR Line, Fuel
5 5431053 1 Vent, Tank
6 7517451 2 Bolt
7 7552801 2 Washer
8 7558301 2 Washer
9 5222154-067
5222155-067
1
1
Bracket, Mounting, Rear, LH
Bracket, Mounting, Rear, RH
10 5811796 1 Foam, Intake, Splash
11 5332457
5333936
2
2
Spacer (If built before 1/17/00)
Spacer (If built after 1/17/00)
12 7547069 4 Nutsert
13 5810317 2 Pad, Fuel Tank Bracket
14 7517505 1 Screw
15 5432559 1 Knob, Fuel Valve
16 5432733 1 Nut, Fuel Valve
17 7052161 1 Valve, 3-Way
18 7661637 2 Rivet
19 5240577-067 1 Bracket, Fuel Valve
20 8450040-600 AR Line, Fuel
21 7080003 4 Clamp, Hose, Red
22 7052149 1 Fitting, Fuel Outlet, Reserve
23 7052146 1 Fitting, Fuel Outlet, Main
24 2520183 1 Asm., Fuel Tank (Incl. 5,22,23)
2/00
