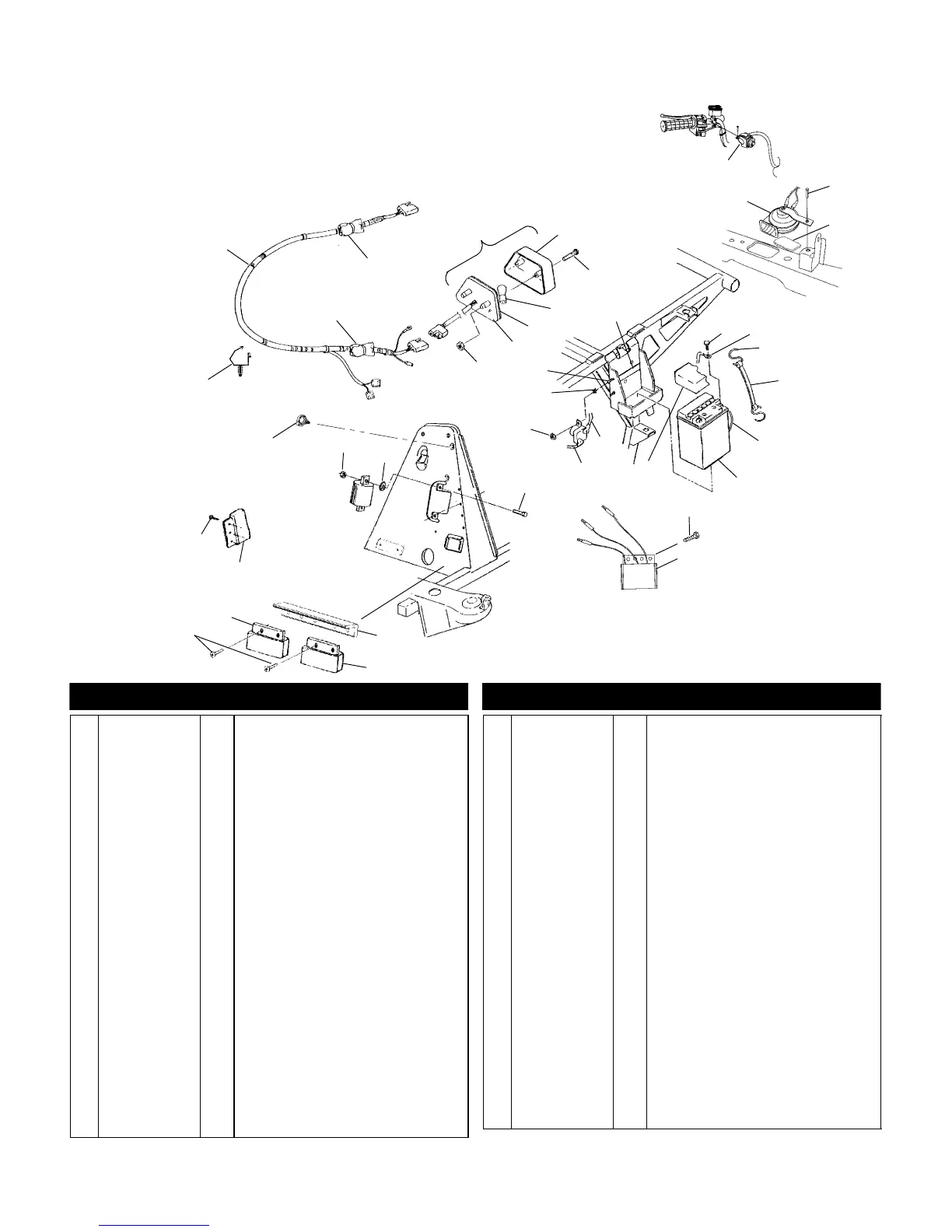

ELECTRICAL/TAILLIGHT
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA and 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
1
2
4
5
6
7
8
9
10
13
12
11
29
28
14
27
19
20
21
22
23
24
30
12
11
38
37
34
31
33
35
36
32
3
26
25
15
16
17
18
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 2460737
2460821
2460833
2460834
1
1
1
1
Harness, Main Wire (AA)(CA)
(If built before 8/01/99)
Harness, Main Wire (AA)(CA)
(If built after 8/01/99)
Harness, Main Wire (FA)
Harness, Main Wire (FB)
2 2200593 1 Kit - Circuit Breaker, 20 AMP
3 2201795 1 Kit - Circuit Breaker, 10 AMP
4 2432034 1 Asm., Taillight w/Brak e Ligh t (Incl.
5-10)
5 4032046 1 Lens, Taillight
6 4032029 2 Screw, Taillight
7 4030043 1 Bulb, Taillight
8 4032045 1 Gasket, Taillight
9 4032064 1 Backing, Taillight/Brake Light
10 7670054 2 Nut, Speed
11 7541925 4 Nut, Nylok
12 7571602 4 Washer
13 7512027 2 Screw
14 5810290 3 Pad, Battery
15 4010311 1 Switch, Horn
16 4010310 1 Horn
17 7517386 1 Screw
18 5810317 1 Pad
19 2200361 1 Kit - Battery Bolt, Short
20 4010095 1 Cable, Battery/Engine
21 7010032 2 Hook, Battery Strap
22 5410424 1 Strap, Battery Holddown
23 5432077 AR Tube, Battery Vent
24 4140006 1 Battery
25 7511876 2 Screw
26 4010354 1 Limiter, Speed (FA)(FB)
27 5431769 1 Cover, Battery
28 4010094 1 Cable, Battery/Solenoid
29 4010093 1 Cable, Solenoid/Starter
30 7512007 2 Bolt
31 5132214 1 Sink, Heat
32 4010249 1 Switch, Thermister LR-60
33 7512018 5 Screw
34 4060191 1 Rectifier, Regulator, LR 35
35 4010195 1 Limiter, RPM LR 83-3 (AA)(CA)
36 7512017 2 Screw
37 4020149 7 Clip, Rosebud
38 7670109 3 Clip, Routing
2/00
