9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
5.5

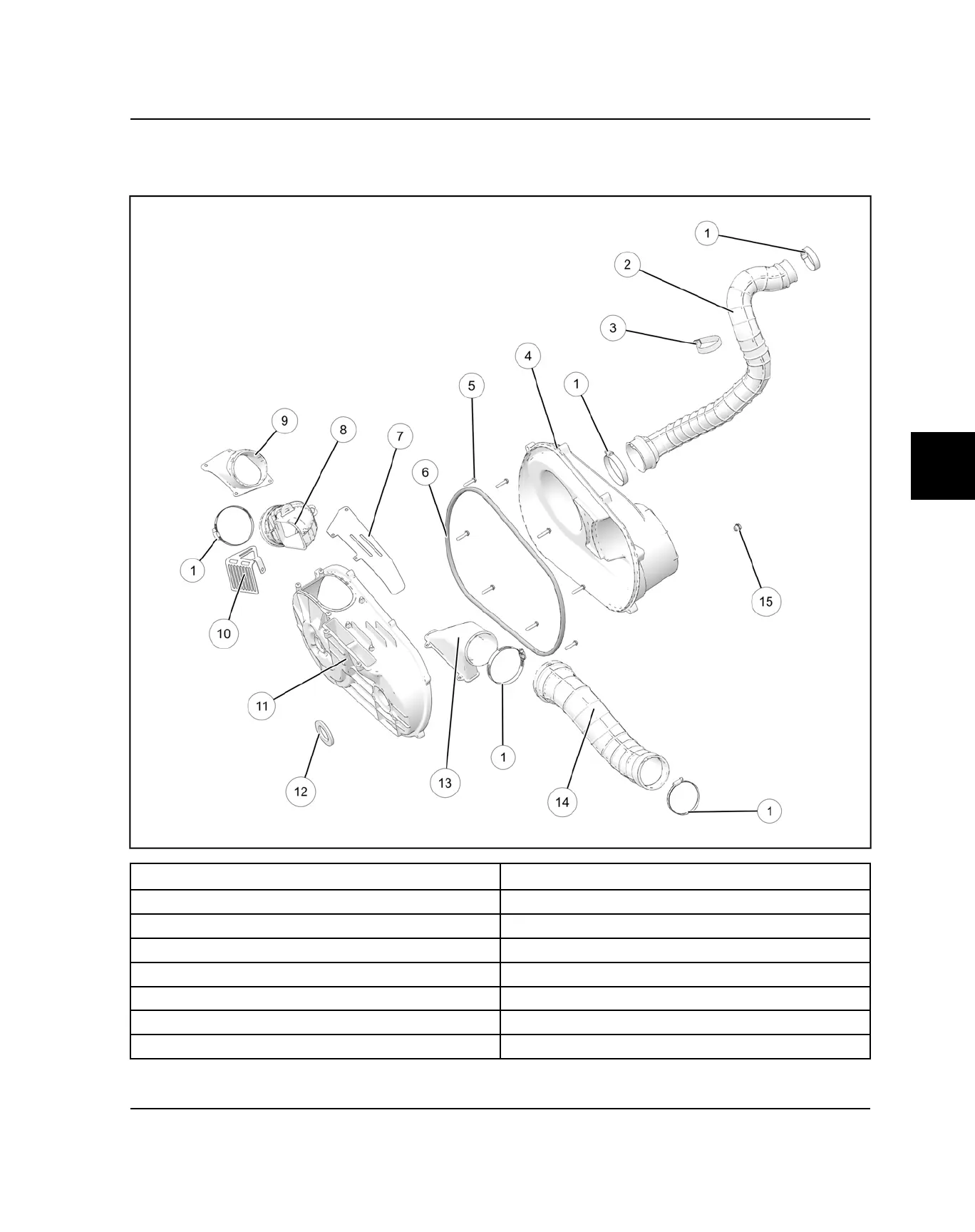

ASSEMBLY VIEWS - PVT SYSTEM
PVT COVERS AND DUCT COMPONENTS
q
Band Clamp
o
Outlet Duct
w
Intake Hose
a
Outlet Duct Screen
e
Intake Hose Bracket
s
Inner Clutch Cover
r
Outer Clutch Cover
d
Inner Cover Seal
t
Outer Cover Screws
f
Intake Duct
y
Outer Cover Seal
g
Inlet Hose
u
Guard Plate
h
Clutch Cover Drain Screw
i
Outlet Hose
