9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
11.37

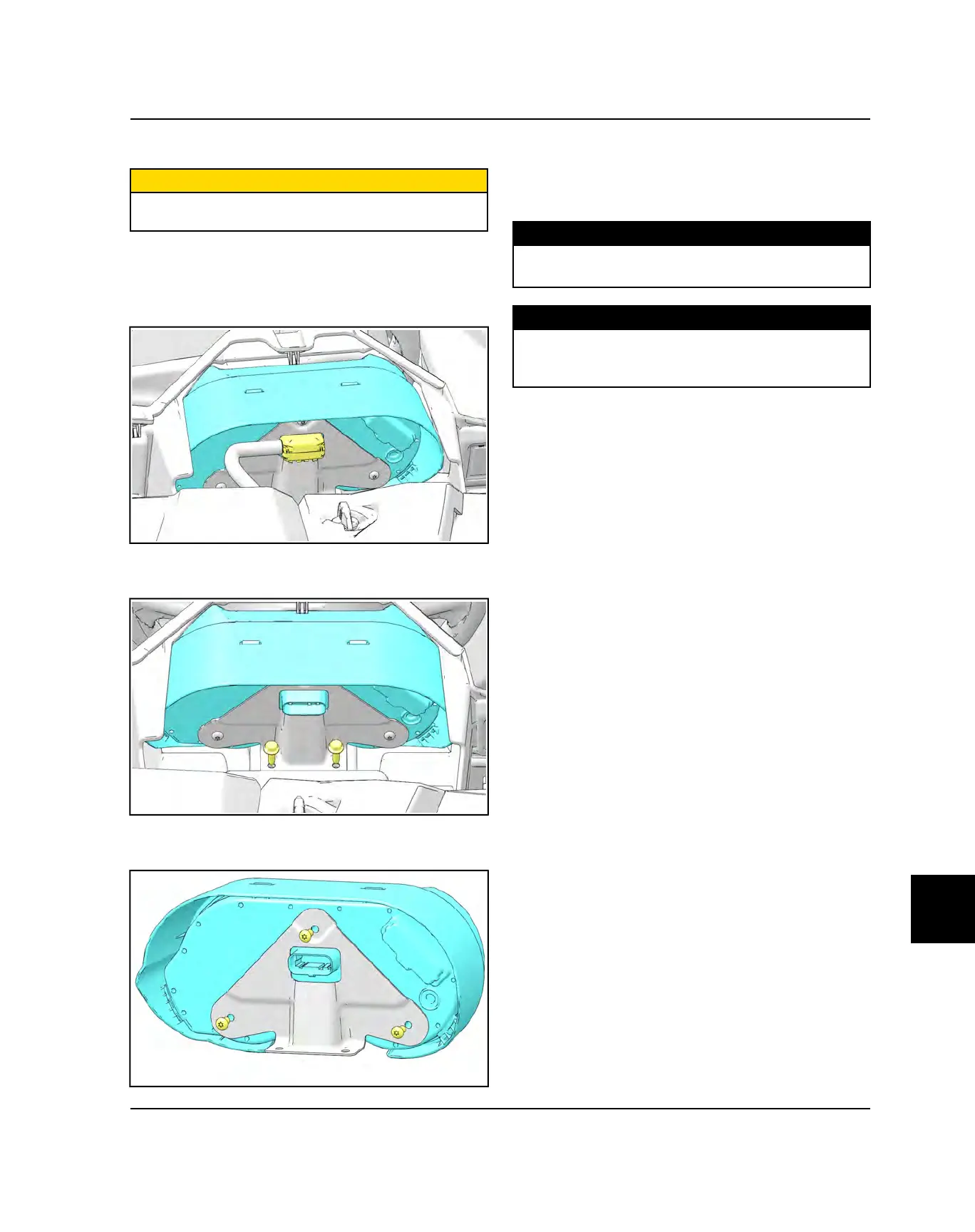

INSTRUMENT CLUSTER REPLACEMENT
CAUTION
Do not allow alcohol or petroleum products to come in
contact with the instrument cluster lens.
1. Remove the upper dash panel. Refer to “Interior
Body Component Removalpage 10.35” procedure.
2. Disconnect the wire harness connector from the back
side of the instrument cluster.
3. Remove the fasteners holding the instrument cluster
mounting bracket to the vehicle.
4. Remove the fasteners holding the instrument cluster
mounting bracket to the instrument cluster.
5. Push the instrument cluster bezel off the instrument
cluster.
6. For installation, reverse removal procedure. Torque
fasteners to specification.
TORQUE
Instrument Cluster to Mounting Bracket Fasteners:
30 lb-in (3.4 Nm)
TORQUE
Instrument Cluster Mounting Bracket to Vehicle
Fasteners:
3.5 lb-ft (4.7 Nm)
ELECTRICAL
