9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual

WINCH SERVICE

WINCH REPLACEMENT

Removal

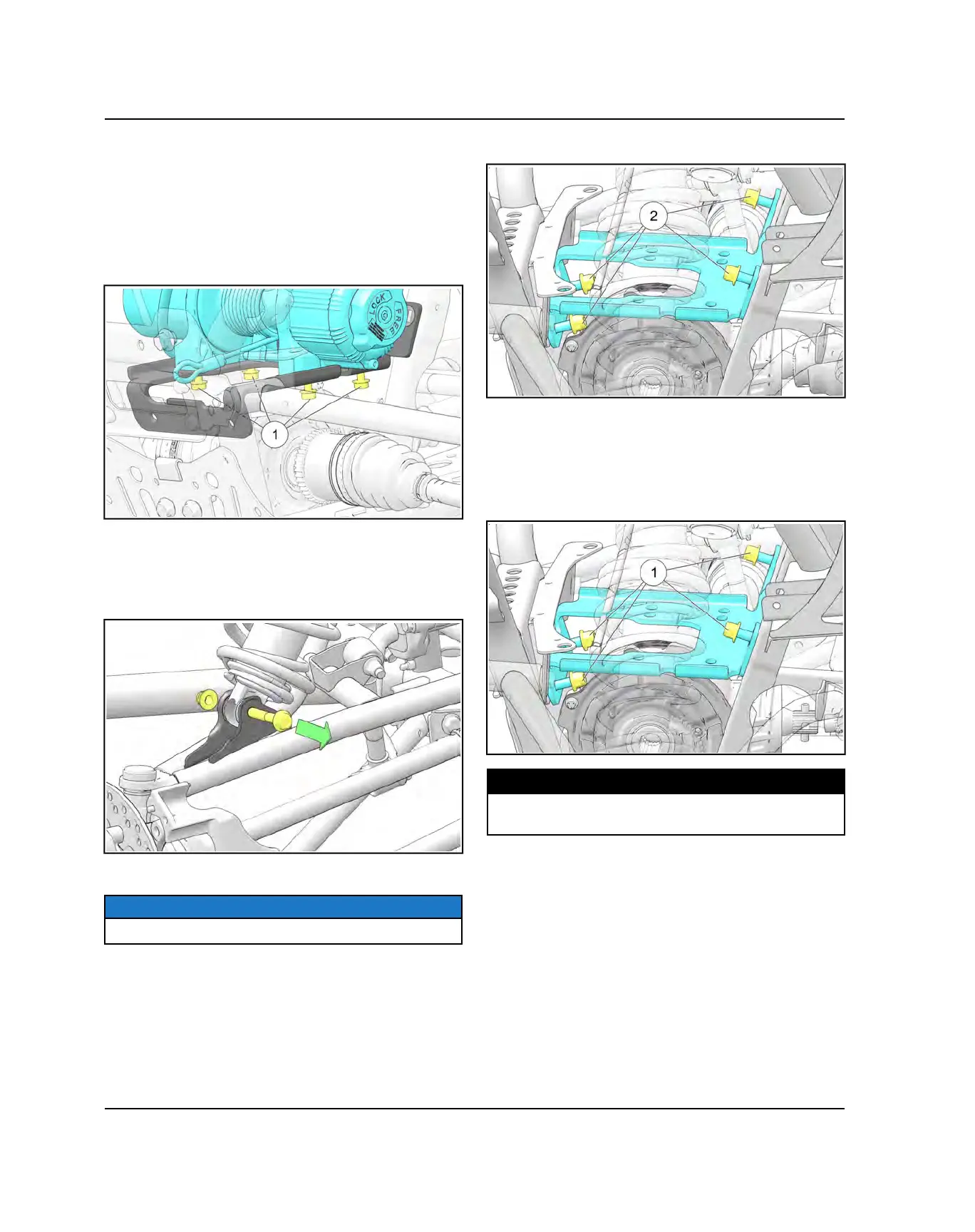

1. Disconnect Battery.

2. Remove four fasteners

securing winch to mounting

plate.

3. Disconnect electrical wires from bus bar.

4. Disconnect contactor connector.

5. Remove the lower fastener on the passenger front

shock.

6. Remove winch from passenger side.

NOTICE

If required, Remove winch mounting plate.

7. Remove four 15mm nuts

retaining mounting plate.

8. Remove winch mounting plate from vehicle.

Installation

1. Reinstall winch bracket and fasteners

if previously

removed. If not, skip to step 2.

TORQUE

Winch Mounting Plate:

30 lb-ft (41 Nm)

2. Install the winch from the passenger side.

ELECTRICAL
