10.41

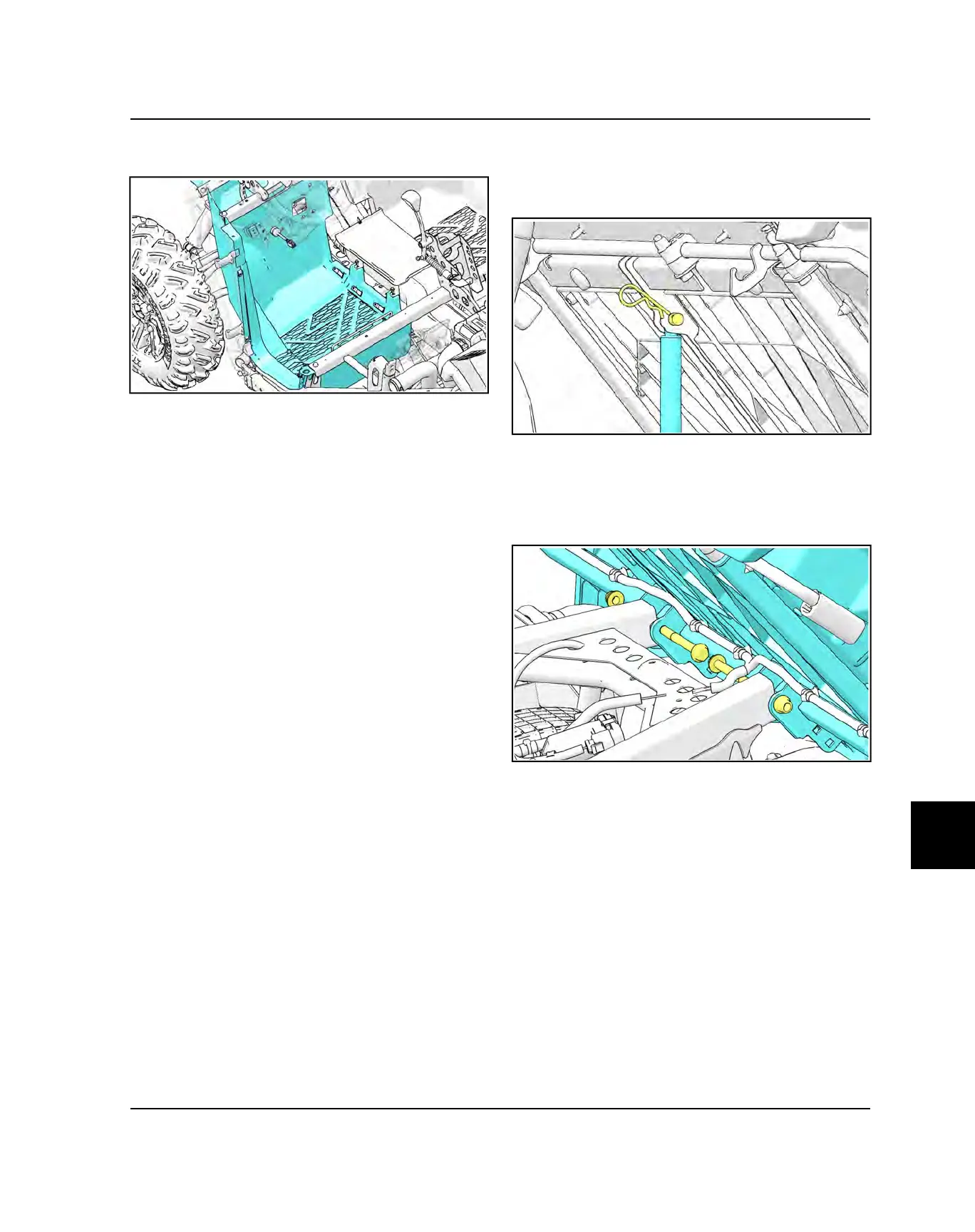

19.Remove the remaining fasteners holding the RH and
LH main floors to the vehicle.
CARGO BOX REMOVAL
1. Pull the cargo box handle and lift the cargo box up.
2. Remove the pin holding the shock to the cargo box.
3. Disconnect the cargo box wire harness from the main
wire harness.
4. Remove the fasteners holding the cargo box to the
vehicle frame. With the help of an assistant, remove
the cargo box from the vehicle.
BODY / FRAME
