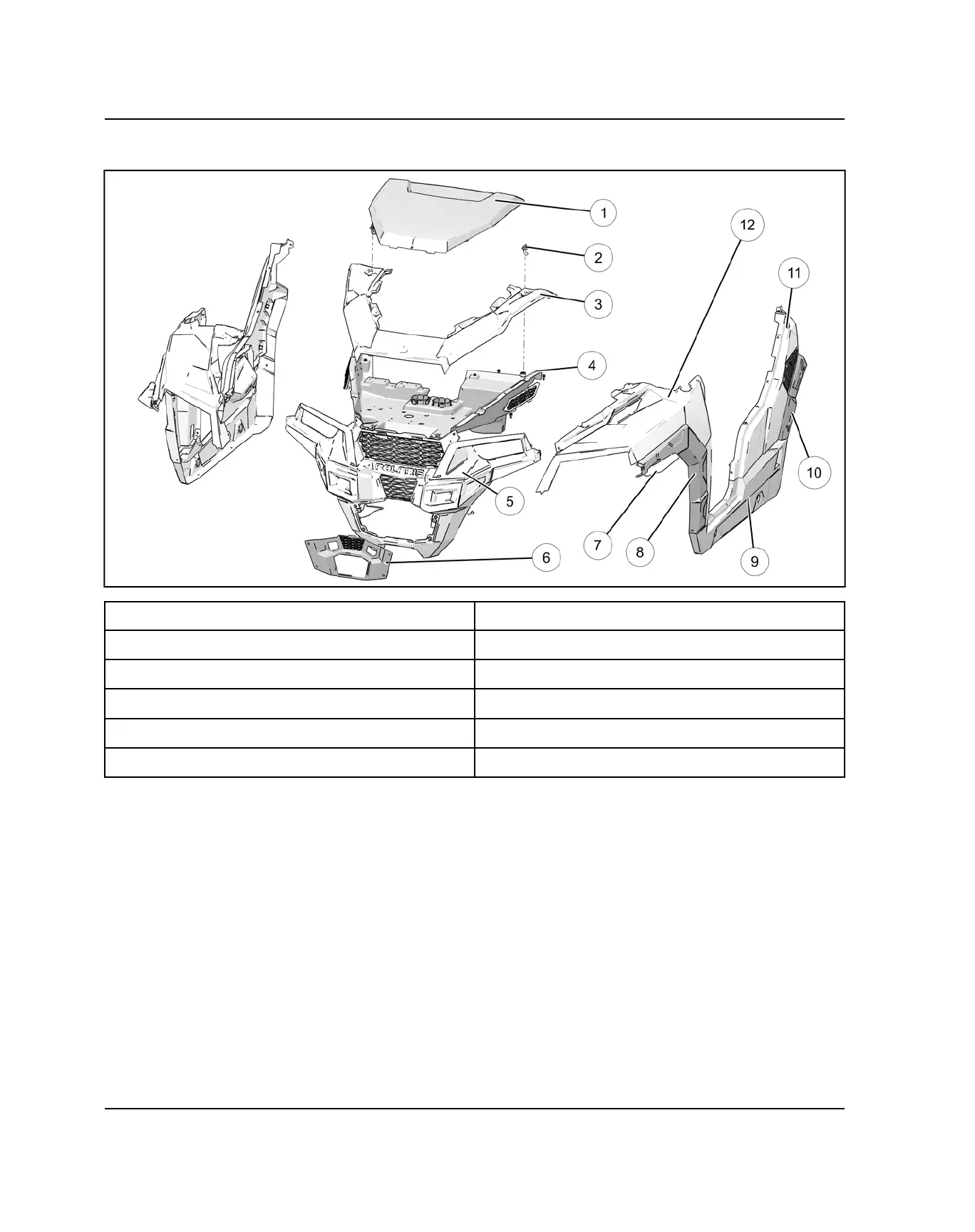

EXTERIOR BODY COMPONENT ASSEMBLY VIEW (INT'L)
q
Inner Hood
u
Mud Fender, LH
w
1/4 Turn Latch
i
Front Render Flare, LH
e
Outer Hood
o
Rocker Assembly, LH
r
Front Upper Floor Panel
a
Rear Fender, LH
t
Front Upper Fascia
s
Rear Fender Flare, LH
y
Front Lower Fascia
d
Front Fender, LH
