STEERING MAINTENANCE
STEERING INSPECTION
The steering components should be checked periodically
for loose fasteners, worn tie rod ends, ball joints and
damage. Also check to make sure all cotter pins are in
place. If cotter pins are removed, they must be replaced.
Replace any worn or damaged steering components.
Steering should move freely through the entire range of
travel without binding. Check routing of all cables, hoses,
and wiring to be sure the steering mechanism is not
restricted or limited.
NOTICE
Check front end alignment whenever steering
components are replaced.
WARNING
Due to the critical nature of the procedures outlined in
this chapter, Polaris recommends steering component
repair and adjustment be performed by an authorized
Polaris MSD certified technician.
STEERING WHEEL FREE-PLAY
1. Position the vehicle on level ground.
2. Lightly turn the steering wheel left and right. Verify
free-play is within specification.
MEASUREMENT
Steering Wheel Free-Play:
0.8-1.0 in (20-25 mm)
3. If there is excessive free-play or the steering feels
rough, inspect the following components.

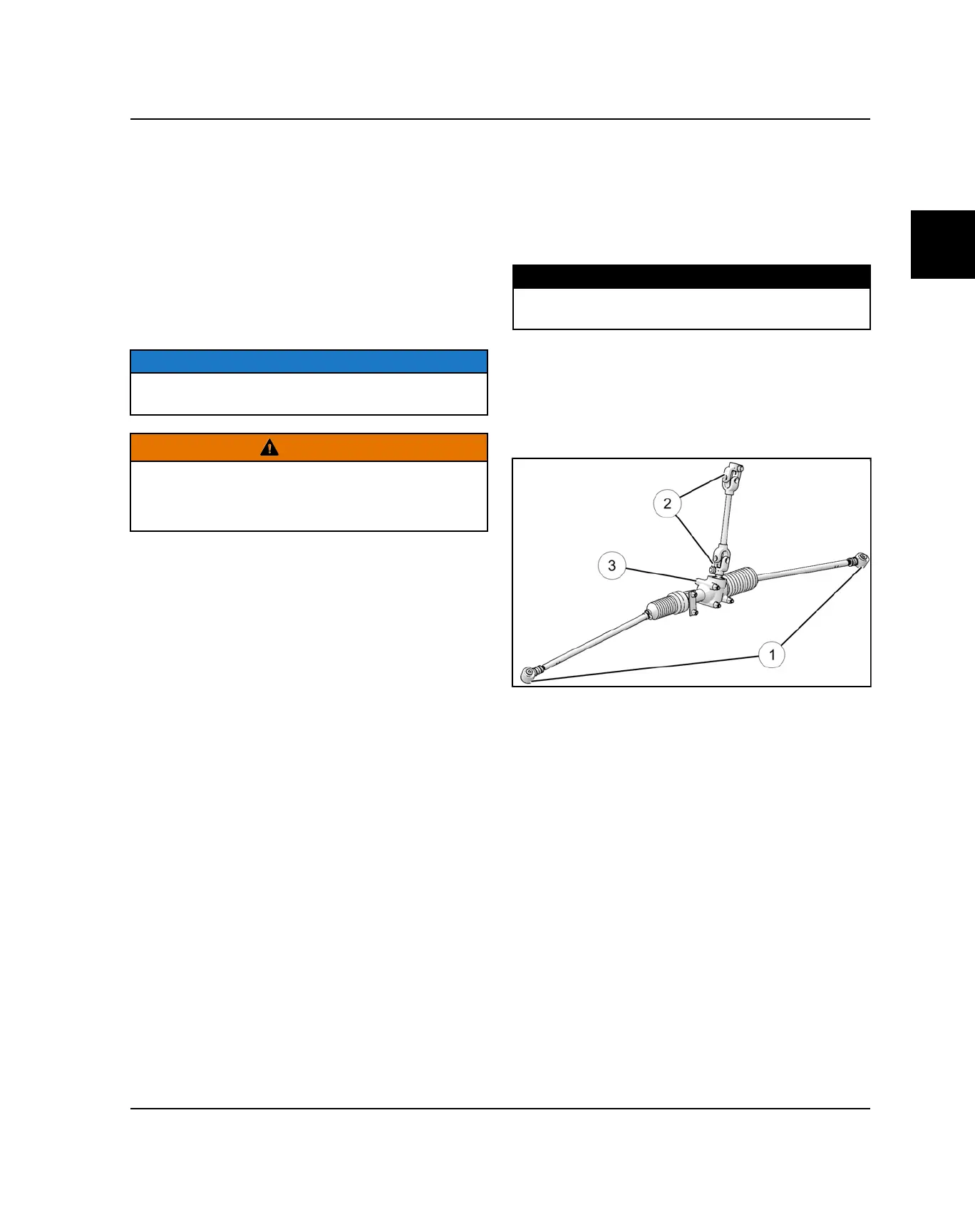

• Tie Rod Ends
q
• Steering Shaft U-Joints
w
• Steering Gearbox
e
