7.26
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
8. When installing the front prop shaft onto the front
gearcase, use a new roll pin.

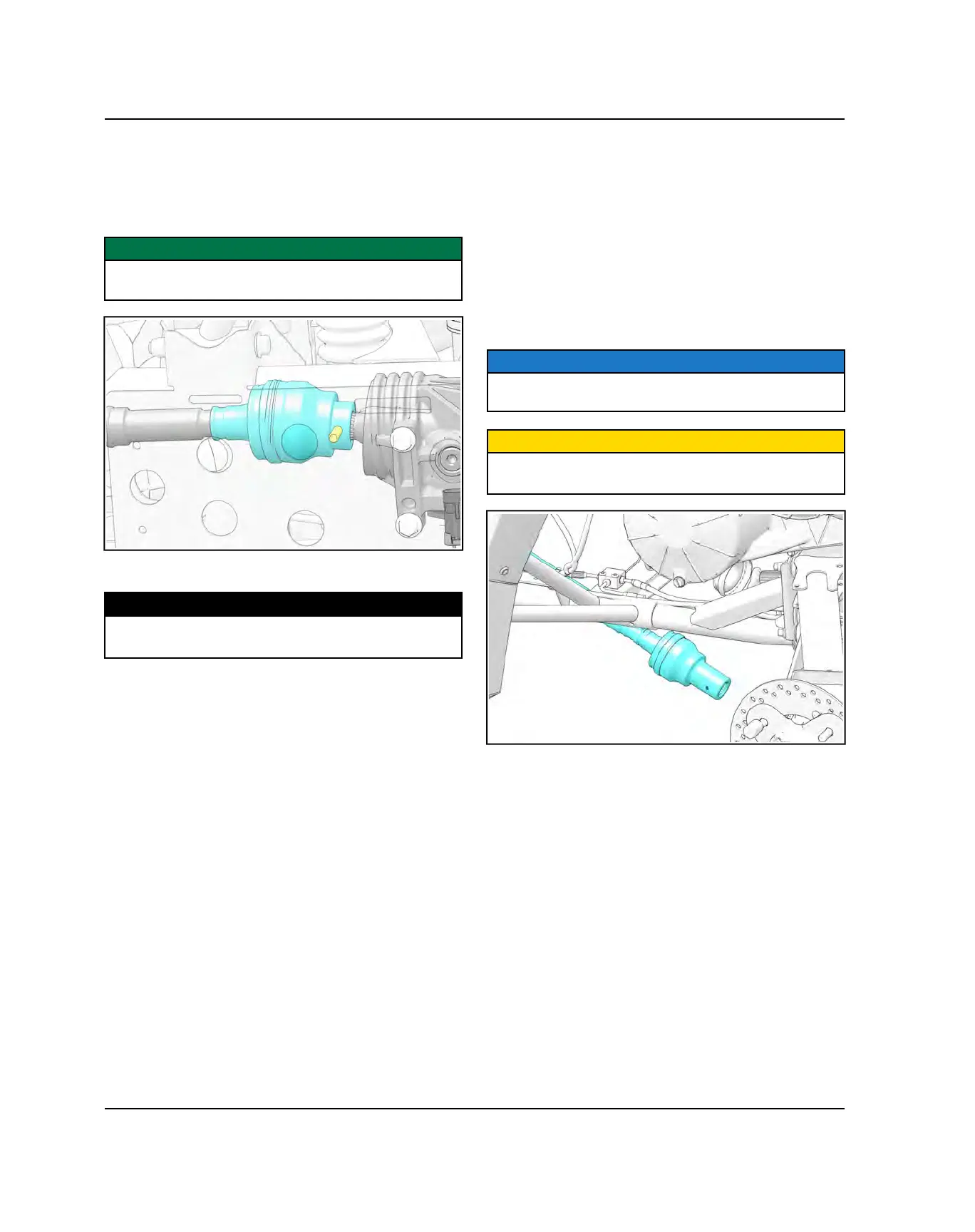

9. Align the front prop shaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
IMPORTANT
Always use a new roll pin when installing the front
propshaft onto the gearcase. Do not reuse roll pins.
10.Torque the support bearing fasteners to specification.
TORQUE
Support Bearing Fasteners:
33 lb-ft (45 Nm)
11. Install the skid plates on the vehicle. Refer to “Skid
Plate Replacement”page 10.73 procedure.
PROPSHAFT INSTALLATION-GENERAL 4
(2018)
1. Lubricate front gearcase shaft splines with Anti-Seize.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front, center and rear propshaft mid joint
with Polaris All Purpose Grease.
4. Slide the rear propshaft forward from the left rear of
the machine just below the PVT cover. Install the rear
prop shaft on the transmission output shaft.
NOTICE
If necessary, separate the support bearing to gain
clearance.
CAUTION
Use care not to damage brake lines when installing
propshafts.
5. Lubricate the support bushing with light oil to ease
installation and install the bushing on the rear
propshaft bearing.
FINAL DRIVE
