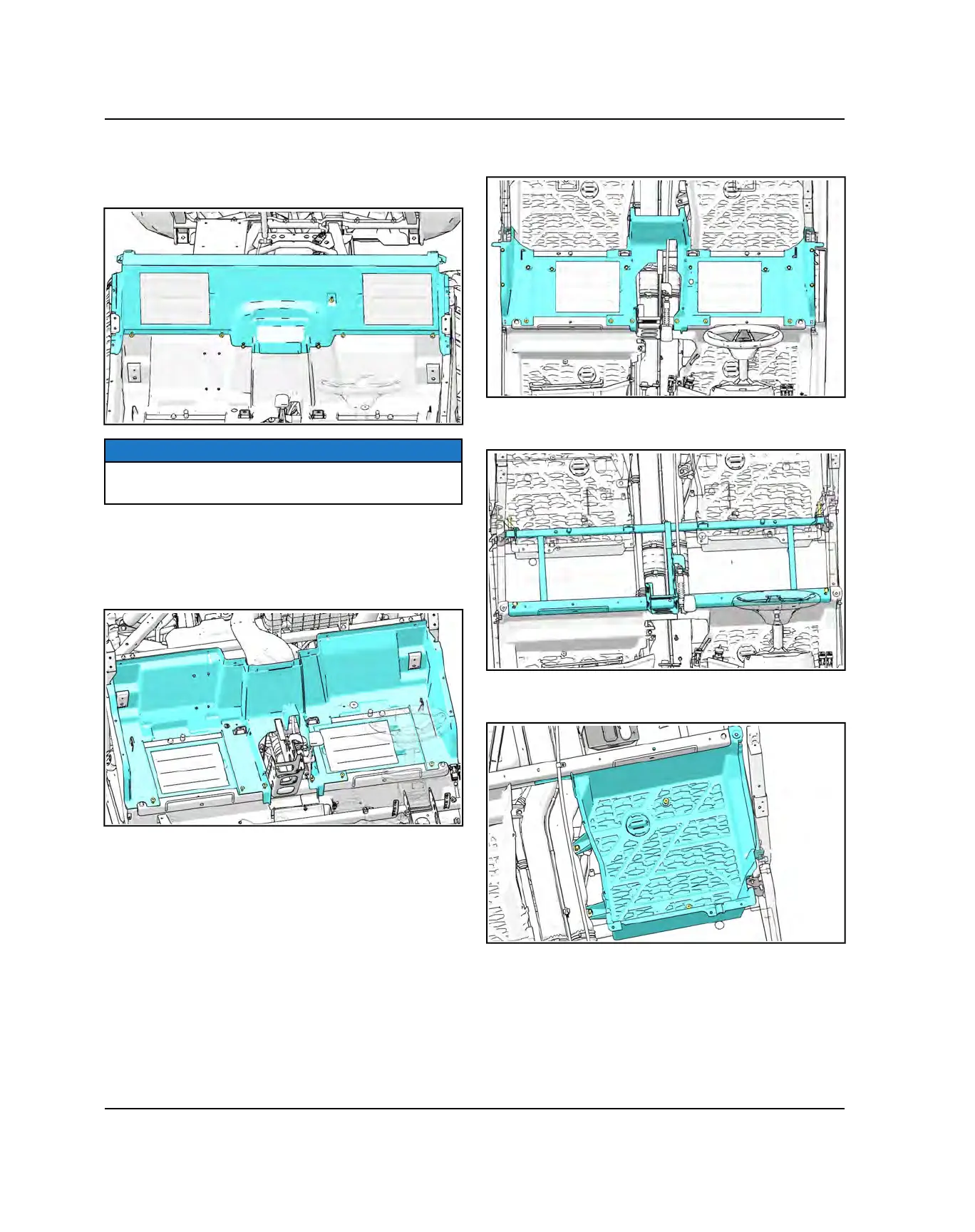

13.Remove the fasteners holding the rear upper close-
off panel to the vehicle. Disconnect the ECU and
remove the rear upper close-off panel from the
vehicle.
NOTICE
If necessary, loosen/remove the fasteners holding the
door latch mounts to the vehicle to aid in panel removal.
14.Remove the fasteners holding the rear lower close-off
panel to the vehicle. Remove the seat belt buckles,
seat belt shoulder strap mounts and brackets, and
fuse box from the panel. Remove the lower close-off
panel from the vehicle.
15.Remove the fasteners holding the front close-of panel
to the vehicle.
16.Remove the fasteners holding the front seat base
frame to the vehicle.
17.Remove the remaining fasteners holding the rear RH
and LH floors to the vehicle.
18.Remove the brake pedal, accelerator pedal, and
mounting bracket. Refer to “Brake Pedal
Removal”page 9.38 procedure.
