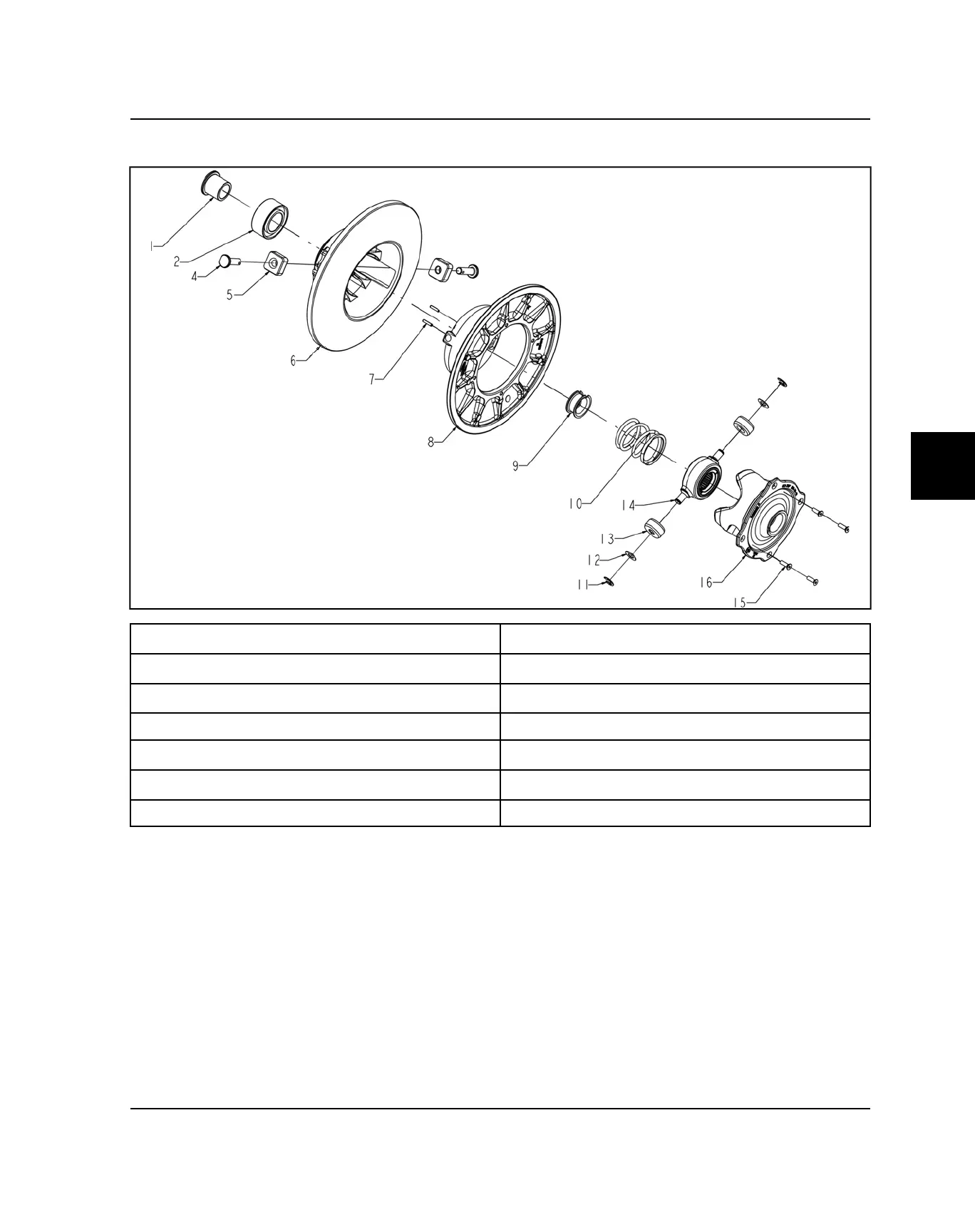

DRIVEN CLUTCH ASSEMBLY VIEW
q
Shoulder Sleeve
o
Flanged Bearing
w
Ball Bearing
a
Spring
r
Roller Pin
s
Retaining Ring
t
Puck
d
Thrust Washer
y
Stationary Sheave
f
Clutch Roller
u
Spring Pin
g
Spider
i
Moveable Sheave
h
Screw
PVT SYSTEM
