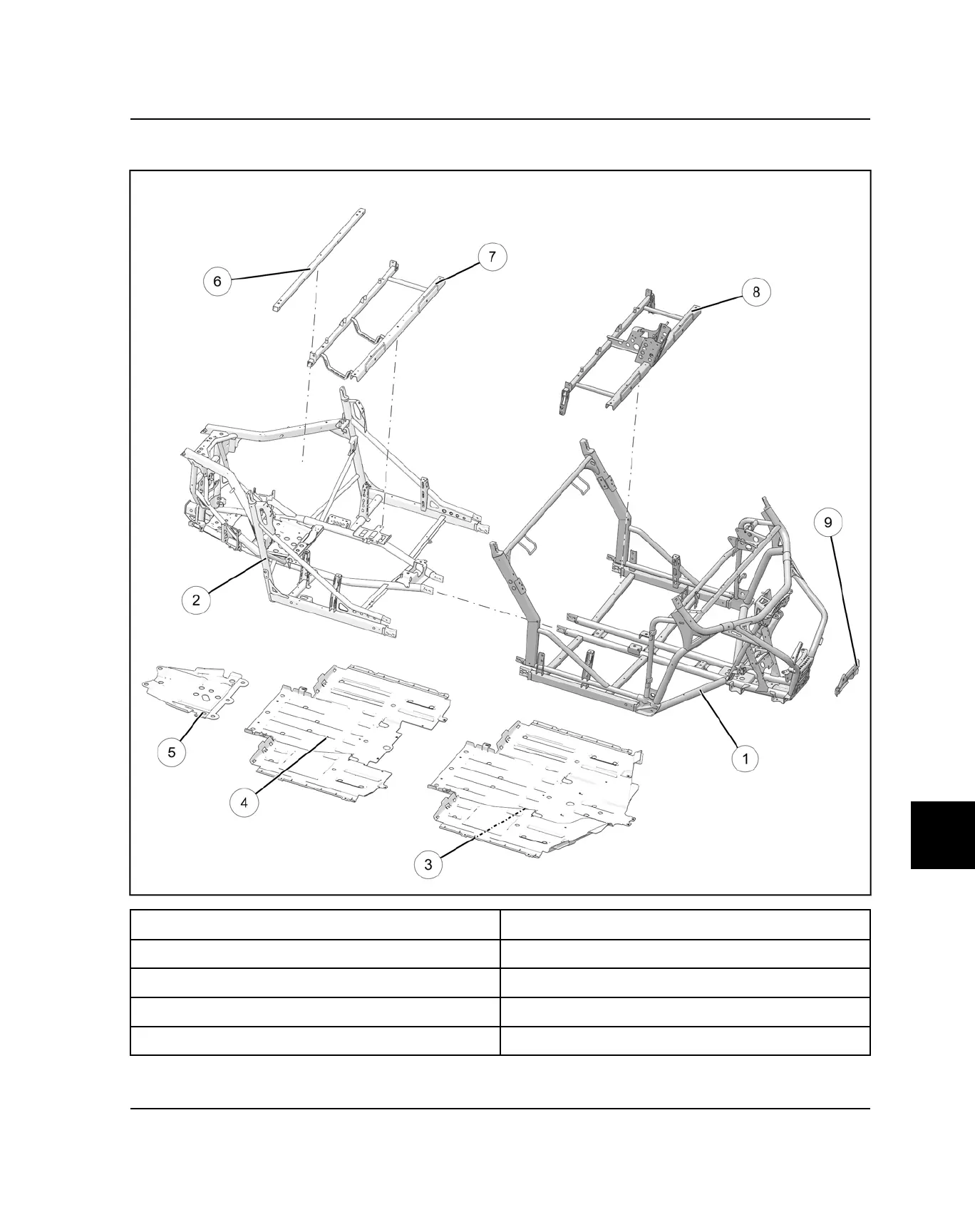

FRAME ASSEMBLY VIEW - GENERAL 4 (2019)
q
Frame, Main Front
y
Frame, Top
w
Frame, Main Rear
u
Frame, Seat Base Rear
e
Plate, Skid Front
i
Frame, Seat Base Front
r
Plate, Skid Center
o
Bracket, Suspension Mount
t
Plate, Skid Rear
