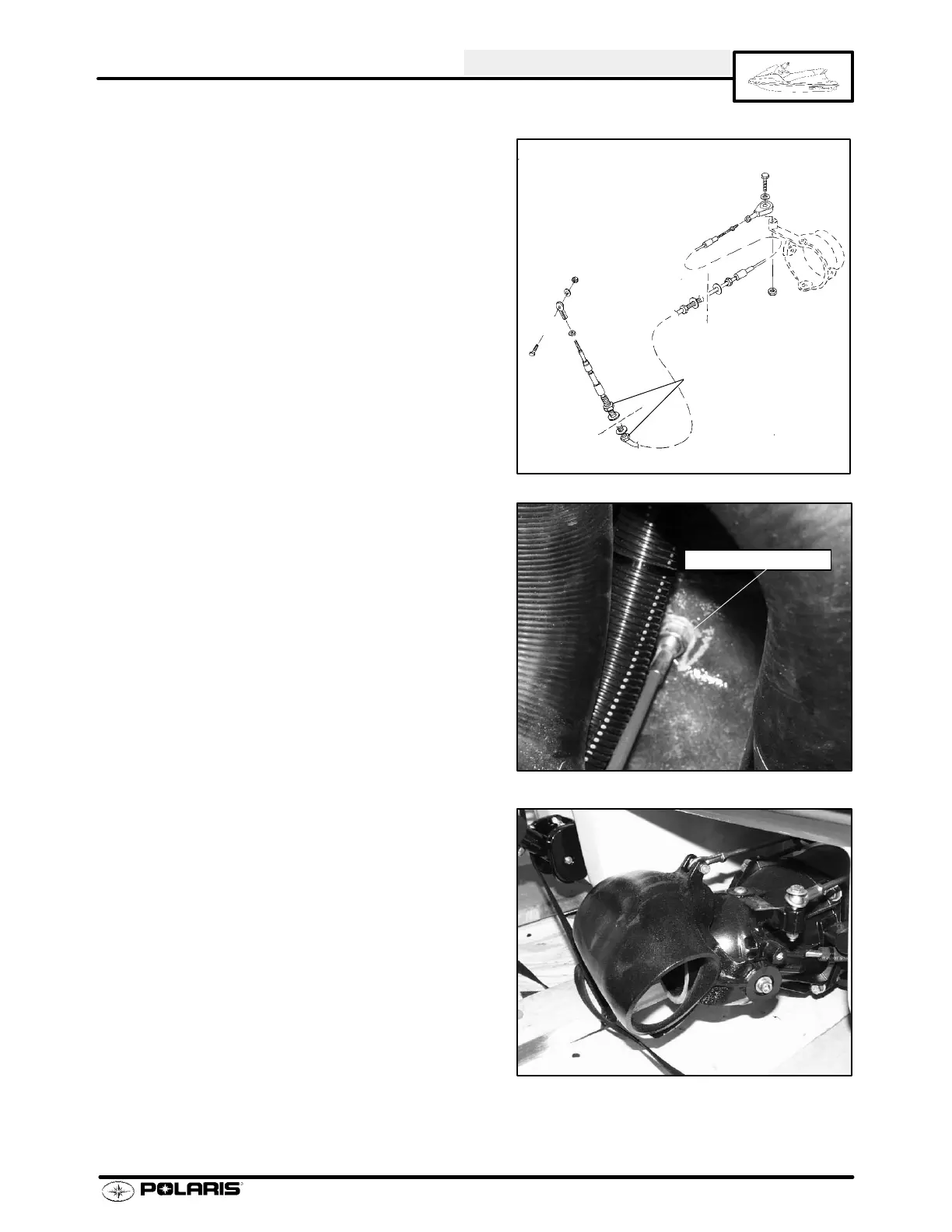

Hull/ControlSystems
6.17
Steering Cable Adjustment -- Continued
8. Use main cable adjuster nuts to make major
adjustments. Adjuster nuts are located at forward
end of cable near steering pod. Open front
compartment and remove storage tray for access to
bottom nut. See Ill. 3.
9. Using two 11/16² open end wrenches, hold one nut
and loosen the other. Lengthen or shorten cable to
adjust nozzle centering. T ighten cable nuts
securely after adjustment is complete.
10. Turn handlebars to left and right through entire
steering range. The bars should move freely and
smoothly without binding. If resistance or binding is
evident check rod end positioning, cable condition,
and routing to locate and correct the cause.
Reverse Cable Adjustment
The reverse cable does not require periodic adjustment.
If the reverse linkage does not function properly, inspect
the cable for damage. Inspect all linkage, fasteners,
brackets, and pivots for wear or damage. When a new
cable is installed the cable must be adjusted.
1. Place reverse shift lever in reverse position.
2. Loosen cable adjuster nuts.
3. Verify that the gate is in its full down position and
locked.
4. Check gate locking by pulling up on gate when in
down position.
5. Move shift lever to forward position. Reverse gate
must be well above the water stream.
6. T ighten adjuster nuts securely.
7. Seal the cable threads and adjuster nuts with
marine grade silicone sealant (PN 8560054) and
tighten securely. Allow sealant to cure fully before
operating craft.
Use main cable
nuts for major ad-
justments
Tighten to 22ft.lbs.
(30Nm).
Ill. 3
Reverse Cable Nut
