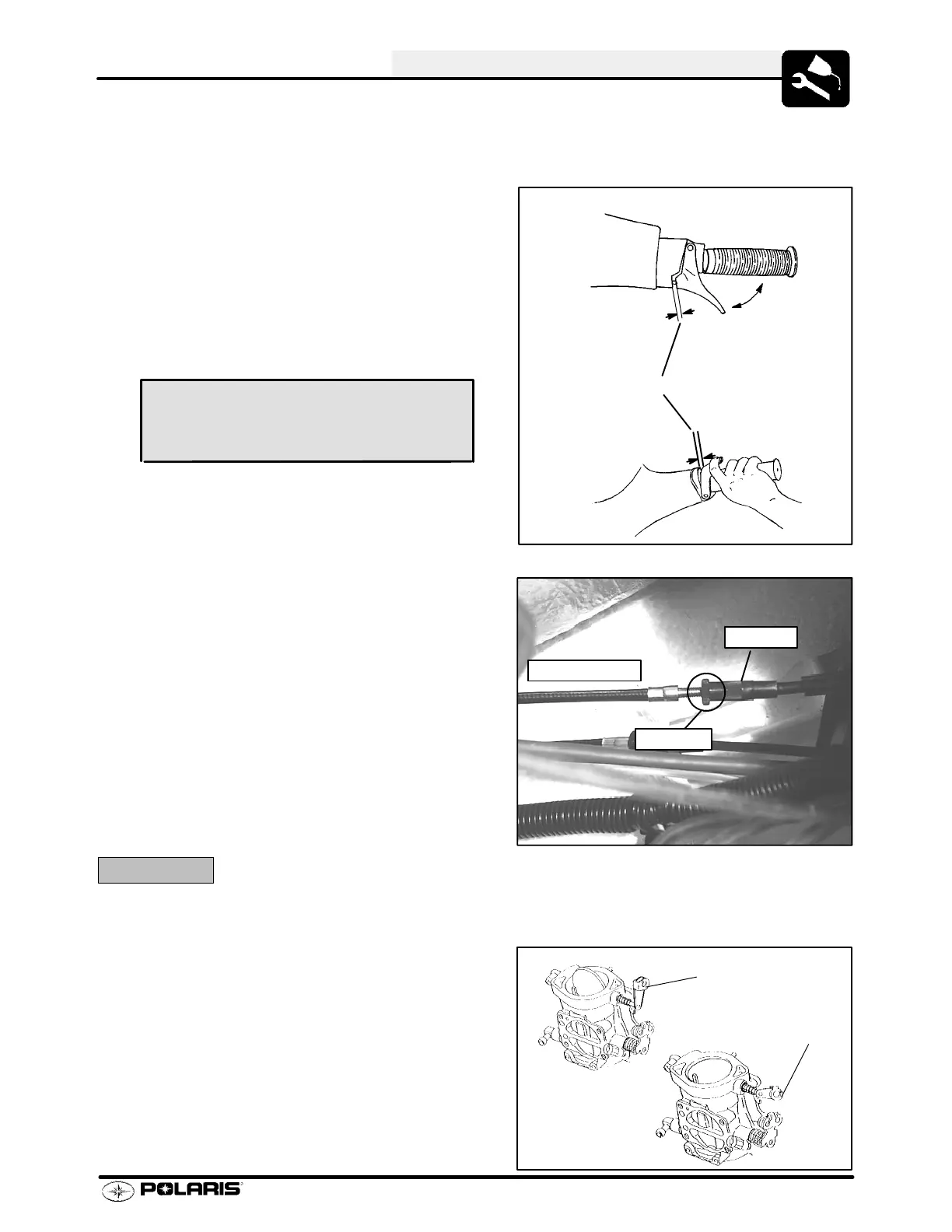

Maintenance
2.19
Engine -- Continued
Throttle / Choke Cable Inspection
1. Check for smooth throttle opening and closing in all
handlebar positions. Throttle operation should be
smooth and lever must return freely without binding.
2. Inspect cable for proper routing, kinks, or damage.
3. Inspect both ends of cable and replace if frayed, kinked
or damaged.
Throttle Cable Adjustment
1. On models equipped with inline adjusters, loosen the
lock nut.
2. T urn the adjuster in (clockwise) to increase the amount
of throttle lever freeplay. T urn the adjuster out
(counterclockwise) to decrease the amount of freeplay.
3. T ighten locknut securely when adjustment is complete.
4. Start engine and turn handlebars to left and right
through entire turning range. If engine RPM increases
re-check cable condition, routing, and lever free play,
and correct or adjust as necessary.
CAUTION:
Never operate the engine for more than 15 seconds without cooling water . Severe engine damage may occur from
overheating.
Choke Cable Adjustment
1. On models with inline adjusters, turn the adjuster in
(clockwise) to increase the amount of choke lever
freeplay. Turn the adjuster out (counterclockwise) to
decrease the amount of choke lever freeplay.
2. T ighten nuts securely and re-check lever free play. Turn
bars from full left to full right through entire range of
motion and verify that at least the minimum lever play is
present in all handlebar positions. Be sure cable is
routed properly through the handlebar pad and down
the steering post
Throttle Lever Free Play
Throttle Lever Freeplay
.020 - .060² (.5 - 1.5 mm)
Lock Nut
Adjuster
Throttle Cable
Choke Off
Choke Applied
Keihin Carburetor
