Ignition Tim ing Adjustm ent -- Ignition Point Adjustm ent Unit

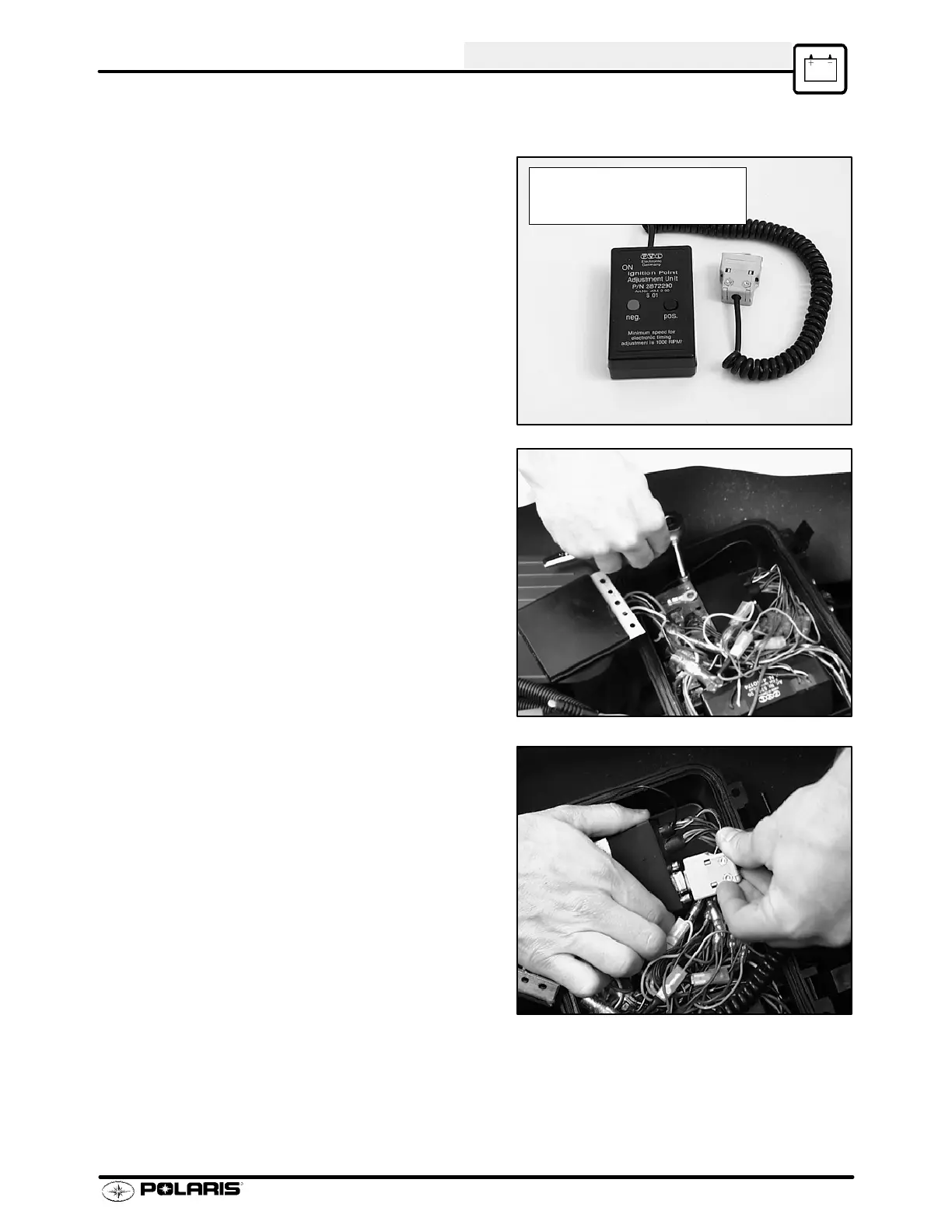

1. Set timing as indicated in previous section.
2. Remove battery cover and exhaust hoses as
required to access the battery and electrical box.
3. Remove negative (-) cable from battery terminal.
4. Carefully open the electrical box. Remove the LR
module and the CDI.
5. With the CDI box accessible, attach the harness
of the Ignition Point Adjustment Unit, (PN
2872290), to the serial port on the CDI.
6. Reassemble the electrical box completely.
Reconnect the battery and exhaust hoses.
7. Remove the timing cover plug.
Ignition Point Adjustment
Unit
Part Number 2872290
