7.13
PVT System
7
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
Drive Belt Removal - Team / P2 (SPA)
NOTE: Turn the key to the “OFF” position and allow
the engine to come to a complete stop.
P2 (SPA) = Single Point Adjuster
1. Verify the driven clutch is not in reverse. Open the
clutch guard.

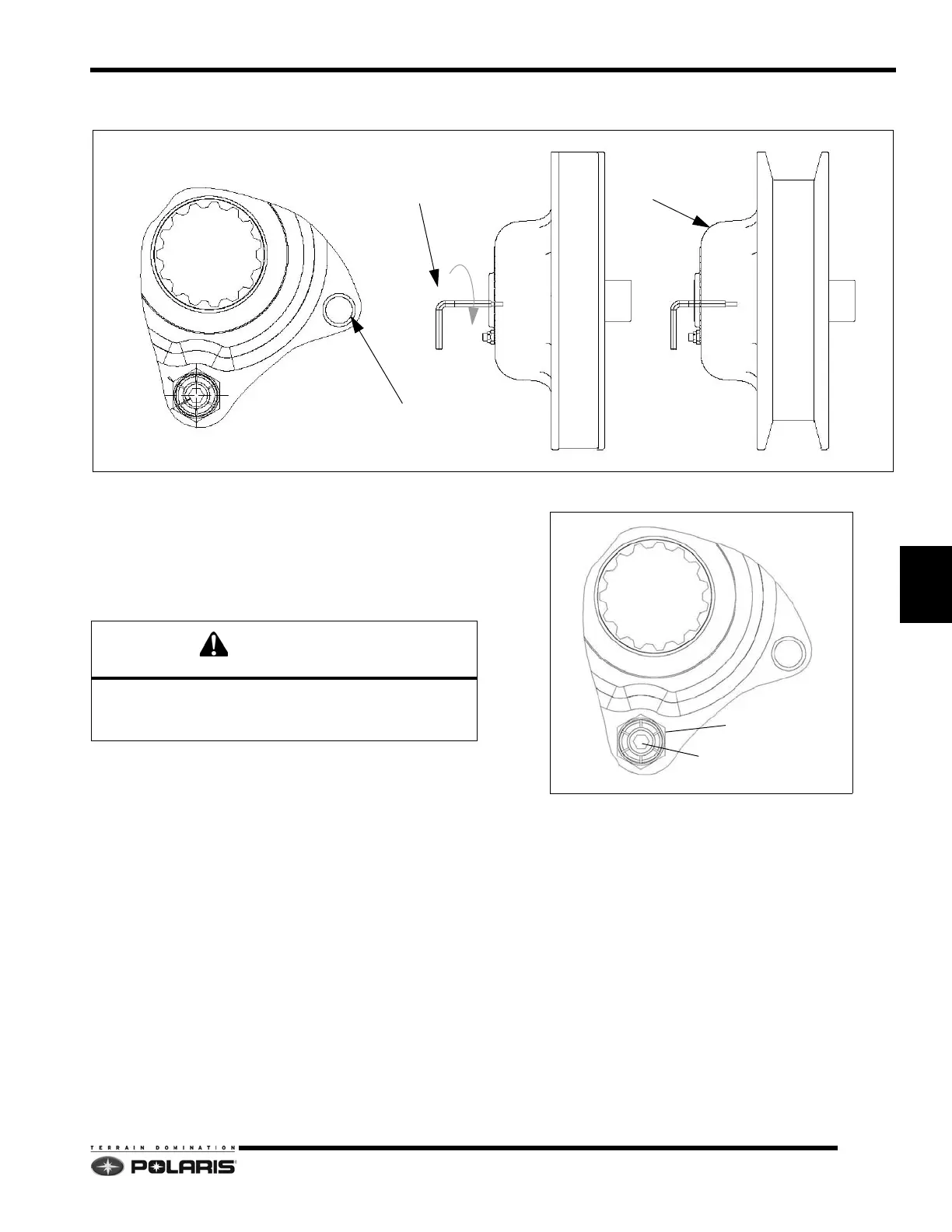

2. Insert the L wrench, PN 2874857 (A), into the
threaded hole (B) located on the driven clutch, and
turn it clockwise until the clutch sheaves are in the
open position (C).
3. Remove the drive belt.
Drive Belt Installation - Team / P2 (SPA)
1. With the L wrench inserted into the threaded hole (B)
and the sheaves in the open position, install the drive
belt.
NOTE: Install belt so that the numbers can be read
correctly on the left side of the machine or in the
direction in which the belt was originally installed.
2. Remove the wrench. “Wiggle” the belt to remove slack
while removing the wrench.
3. Close the clutch guard.
Adjusting Belt Deflection - Team / P2 (SPA)
1. Loosen the jam nut.
2. Using an 1/8
Allen head wrench, turn the stud
counter-clockwise to decrease belt deflection and
clockwise to increase belt deflection.
3. When the proper belt deflection is achieved torque the
lock nut to 90 - 110 in-lb. (10 - 12 Nm).
NOTE: When using a MBL drive belt, the belt
deflection should be set so that .9
to .10of the outer
cogs are outside of the driven sheaves.
Damage to the driven clutch or L wrench will occur when
attempting to open the driven clutch when the driven
clutch is in the reverse position.
