PVT System
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
Drive Belt Removal - P2 (Cam Adjuster)
NOTE: Turn the key to the “OFF” position and allow
the engine to come to a complete stop.
1. Verify the driven clutch is not in reverse. Open the
clutch guard.
2. Insert the L wrench, PN 2874857, into one of the
threaded holes located on the driven clutch. Turn it
clockwise until the clutch sheaves are in the open
position.
3. Remove the drive belt.
Drive Belt Installation - P2 (Cam Adjuster)
1. With the L wrench inserted into one of the threaded
holes and the sheaves in the open position, install the
drive belt.
NOTE: Install belt so that the numbers can be read
correctly on the left side of the machine or in the
direction in which the belt was originally installed.
2. Remove the wrench. “Wiggle” the belt to remove slack
while removing the wrench.
3. Close the clutch guard.
Adjusting Belt Deflection - P2 (Cam Adjuster)
1. Loosen, but do not remove the three screws on the
deflection cam.
2. Rotate (clockwise) the deflection cam towards #1 in
small increments to decrease belt deflection.
3. Rotate (counterclockwise) the deflection cam towards
#5 in small increments to increase belt deflection.
4. Do not rotate cam past #1 or #5.
5. When the proper belt deflection is achieved torque the
lock nut to 12 ft. lbs. (16 Nm).
Damage to the driven clutch or L wrench will occur when
attempting to open the driven clutch when the driven
clutch is in the reverse position.

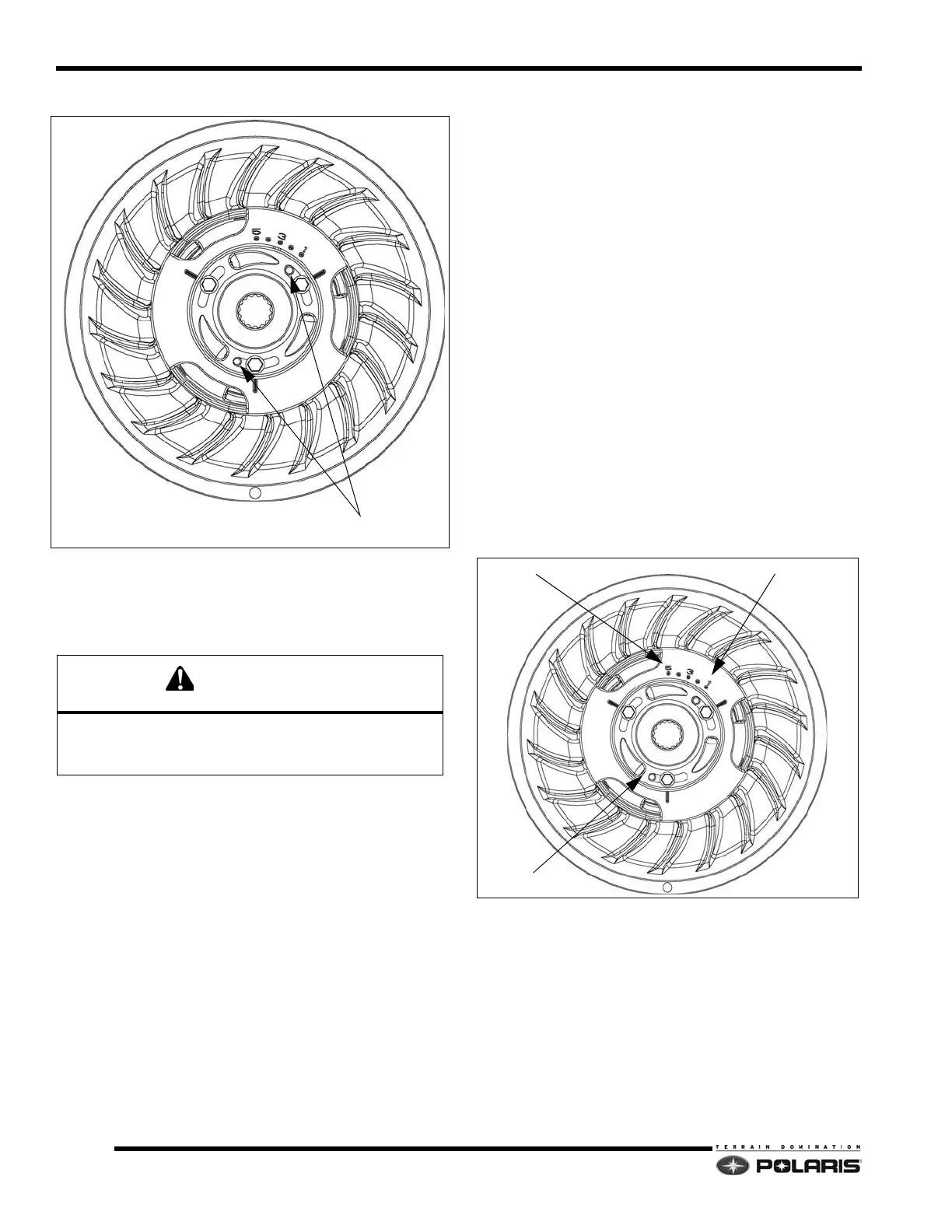

DEFLECTION CAM
#1 - LESS DEFLECTION
#5 - MOST DEFLECTION
