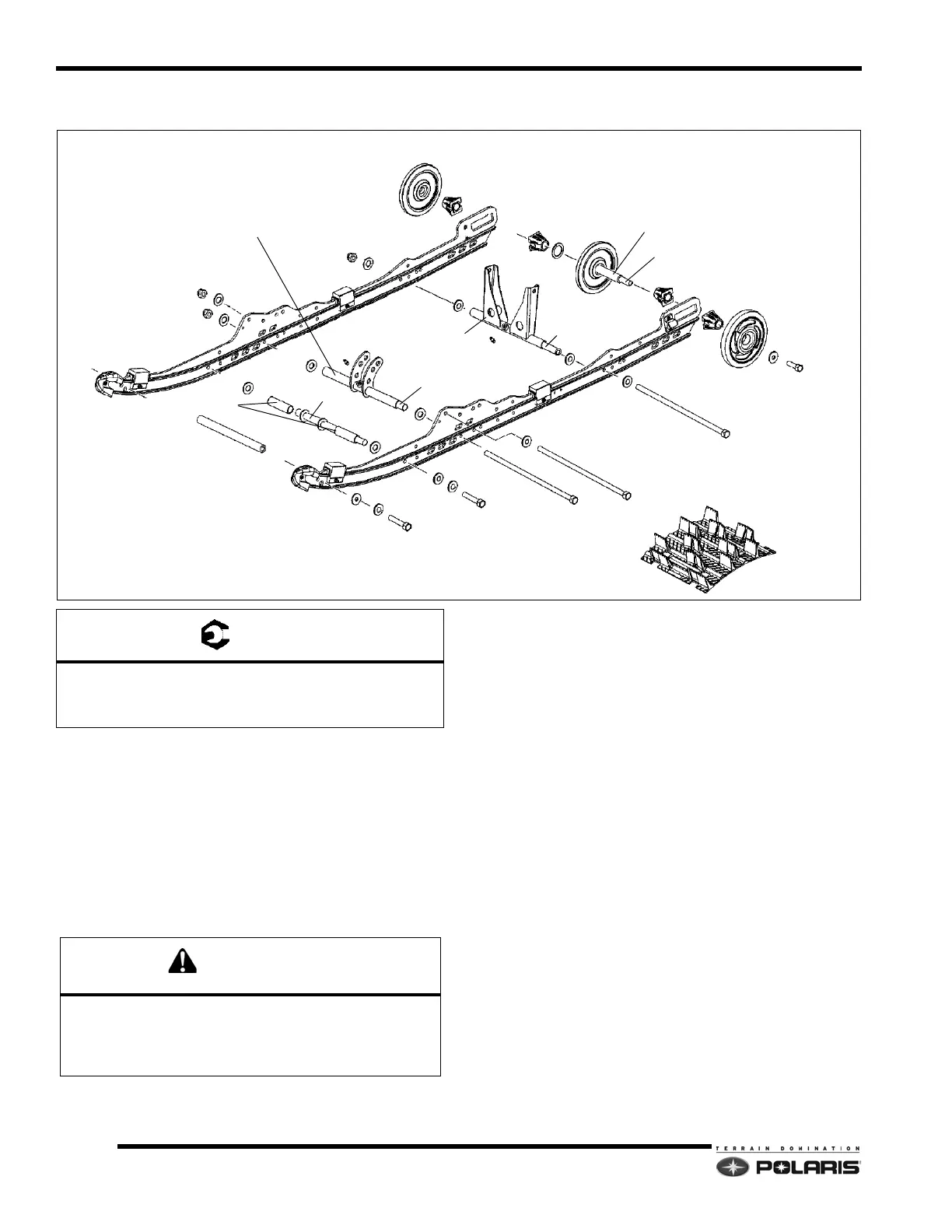

EDGE RMK Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
SHAFT
SHAFT
SHAFT
SPACER
SHAFT
SHAFT
REAR PIVOT ARM
SHOCK PIVOT ARM
CENTERING SLEEVES
A
B
A
C
A
A
= T
A = 35 Ft.Lbs.
B = 45 Ft.Lbs.
C = 19 Ft.Lbs.
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
