8.23
Steering and Suspension Systems
8
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

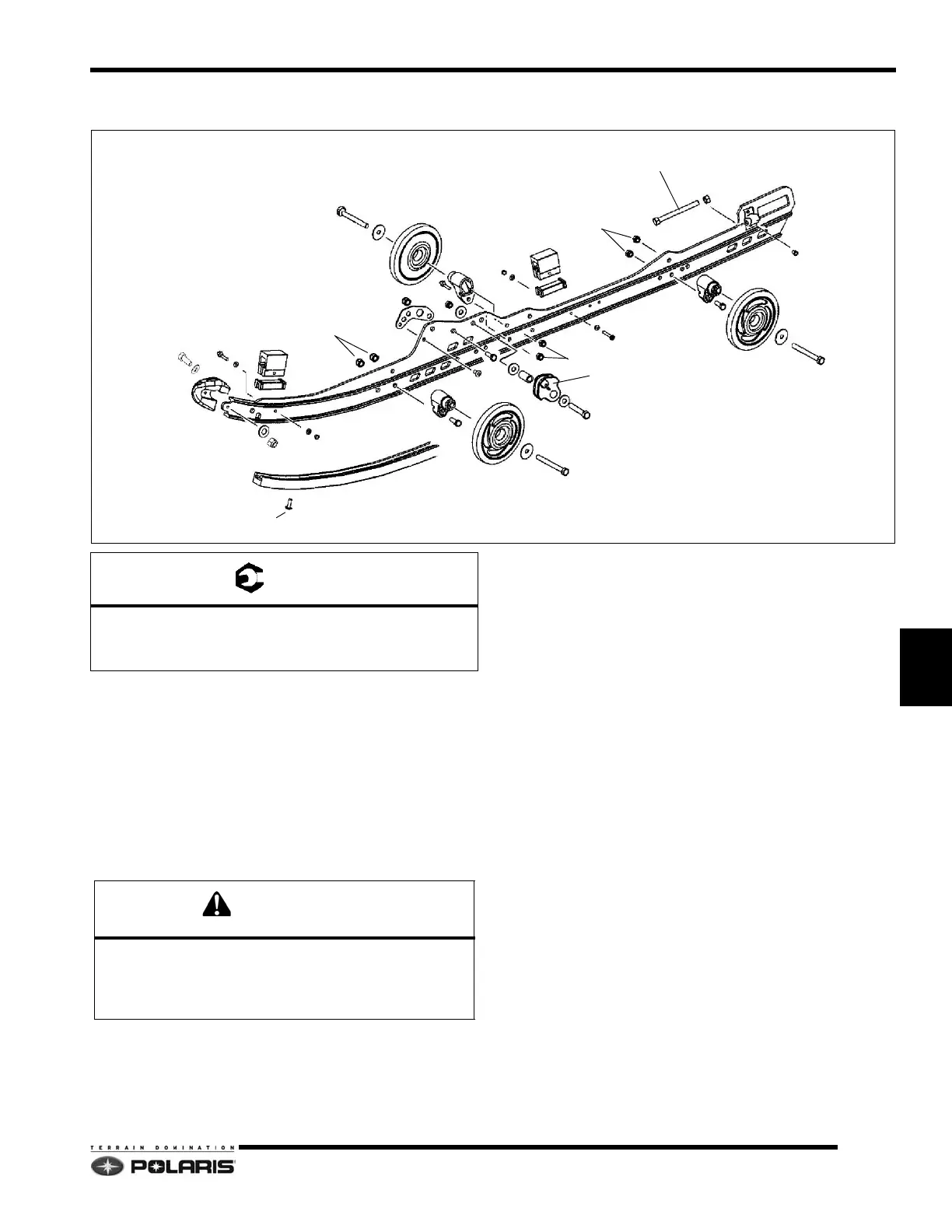

EDGE RMK Rail Assembly
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
RAIL TIP
SLIDER
CARRIER WHEEL
CARRIER WHEEL
CARRIER WHEEL
IDLER ADJUSTER BOLT
SPRING GUIDE
SLIDER FASTENER
A
B
B
B
C
B
A = 3 - 6 Ft.Lbs.
B = 19 Ft.Lbs.
C = 35 Ft.Lbs.
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
