8.24
Steering and Suspension Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

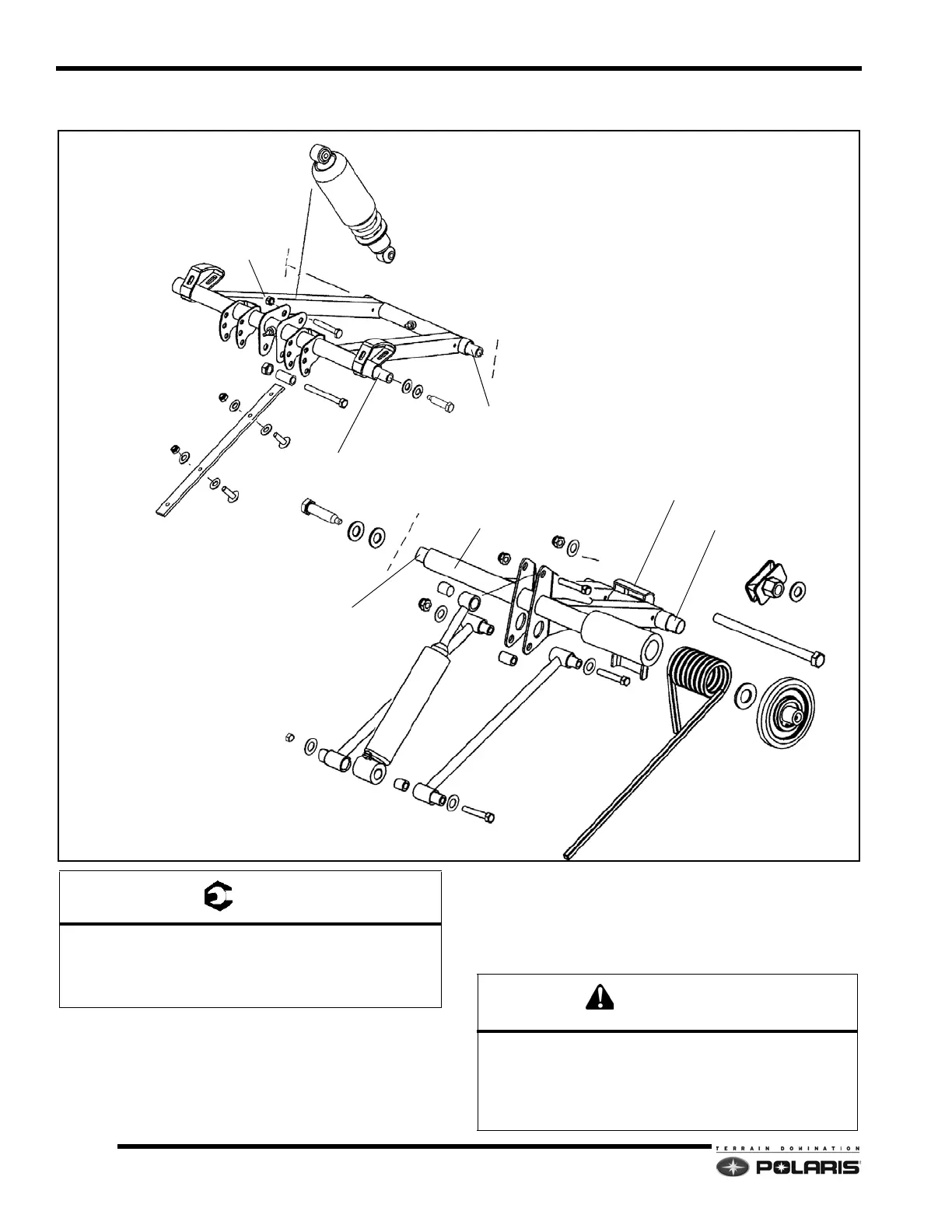

EDGE RMK Front / Rear Torque Arms
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
TORQUE ARM
SHOCK ASSEMBLY
LIMITER STRAP
SHAFT
SHAFT
TORQUE ARM
TORSION SPRING
SHAFT
SCISSOR
SHAFT
SHOCK ROD
SHOCK ASSEMBLY
A
A
B
C
C
D
B
D
D
D
A = 40 Ft.Lbs.
B = 19 Ft.Lbs.
C = 12 Ft.Lbs.
D = 25 Ft.Lbs.
The fasteners securing the rear suspension to the
tunnel are pre-coated with a locking agent when new.
Never re-use these fasteners when removed. Always
use new pre-coated fasteners when mounting the
suspension to the tunnel.
