Widetrak Rail Assembly
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
• Thoroughly grease all inner shafts prior to
installing into outer shafts.

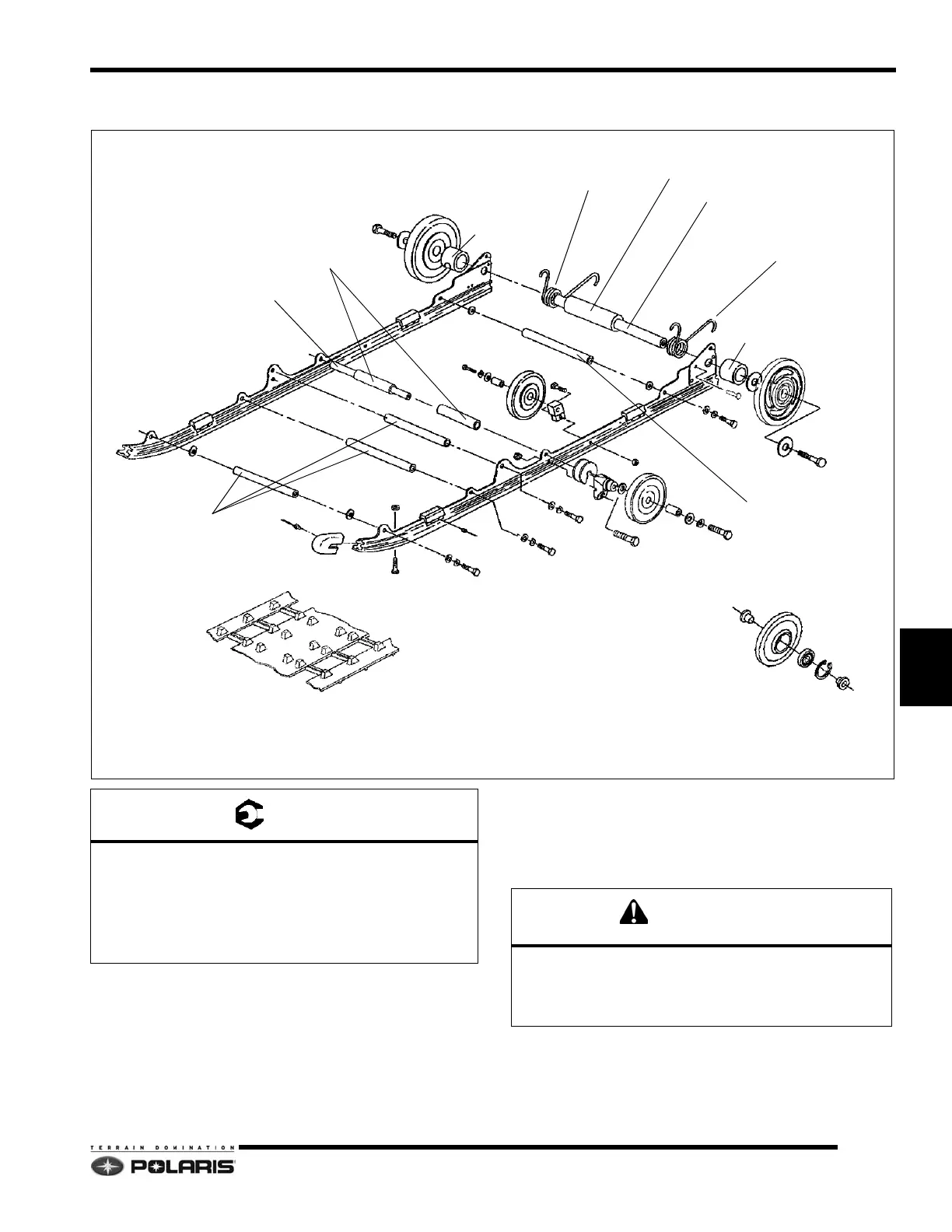

EXTENSION SPRING
EXTENSION SPRING
SPACER
IDLER SHAFT
SPACER
SPACER
CENTERING SLEEVES
INNER SHAFT
INNER / OUTER SHAFTS
INNER / OUTER SHAFTS
A
A
A
B
C
D
C
A
E
E
F
A = 45 Ft.Lbs.
B = 50 Ft.Lbs.
C = 19 Ft.Lbs.
D = 55 - 65 Ft.Lbs.
E = 36 Ft.Lbs.
F = 3 - 6 Ft.Lbs.
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
