Polaris Widetrak LX 2008 - Page 223

8.28
Steering and Suspension Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

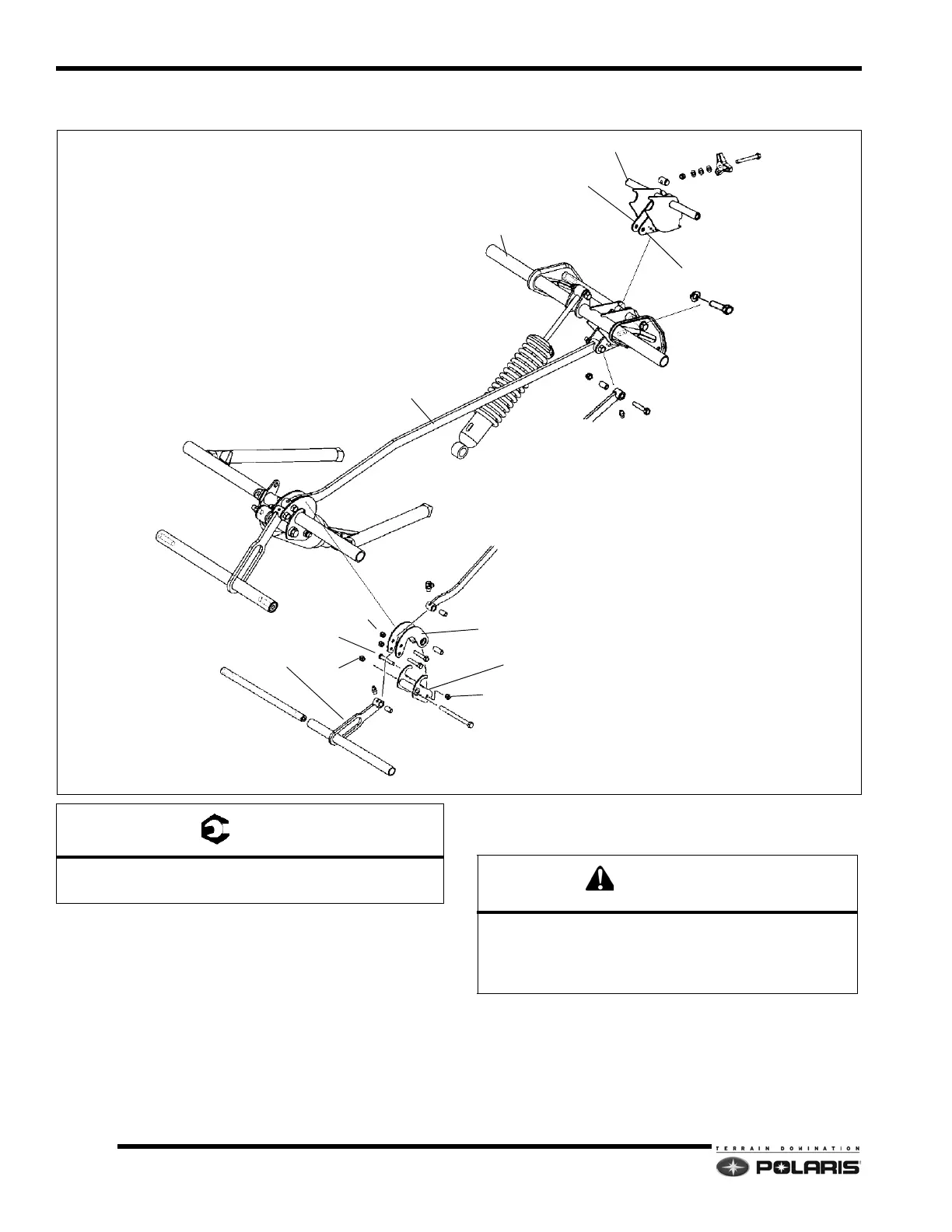

Widetrak Suspension Coupler
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
ADJUSTMENT KNOB
REAR TORQUE ARM
COUPLER
INNER SHAFT
OUTER SHAFT
CLEVIS
INSIDE COUPLER LINK
OUTER COUPLER
RH INNER ADJUSTMENT ARM
LH INNER ADJUSTMENT ARM
ADJUSTER
A
B
B
B
B
B
= T
A = 45 Ft.Lbs.
B = 19 Ft.Lbs.
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
