8.29
Steering and Suspension Systems
8
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

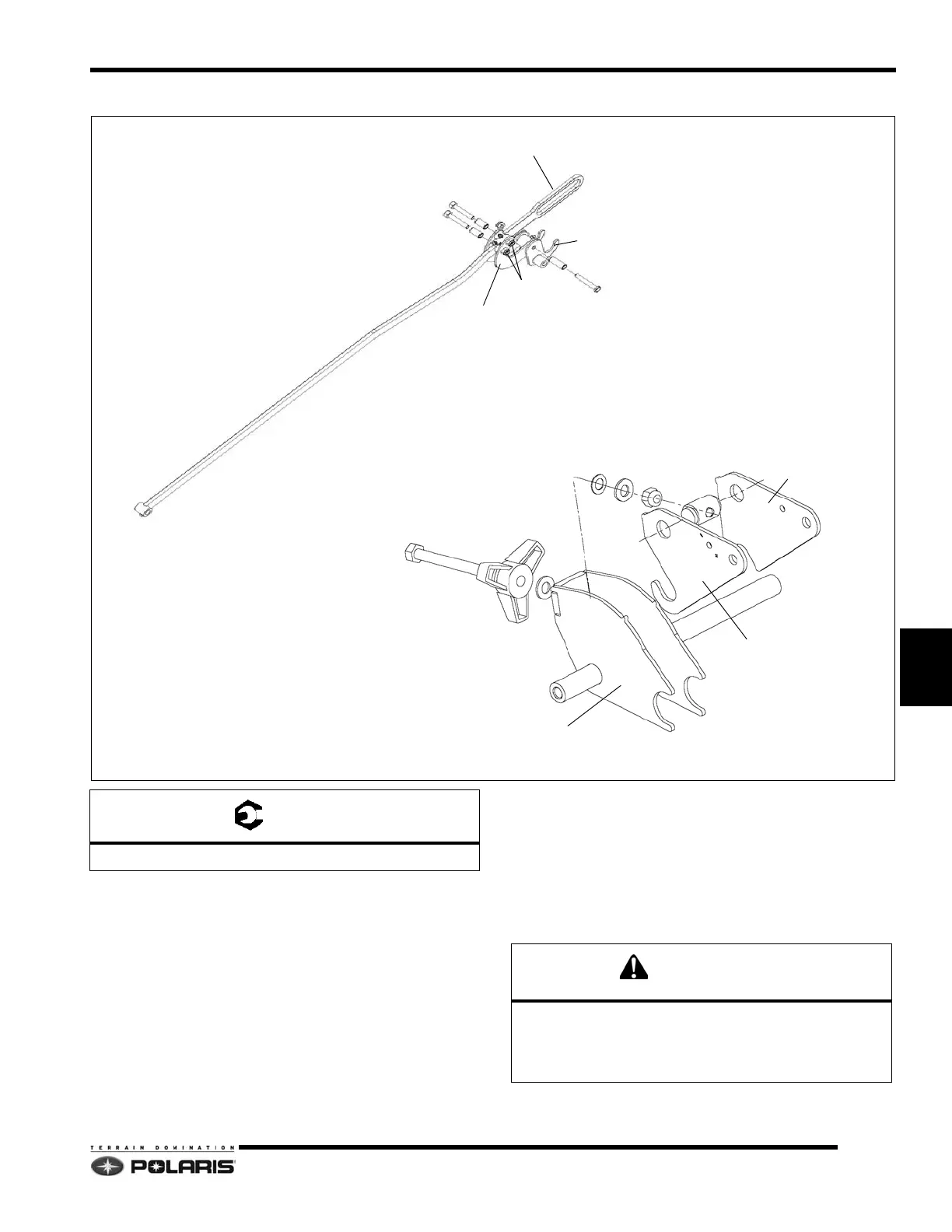

Widetrak Suspension Adjuster / Coupler Views
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
= T
A = 19 Ft.Lbs.
CLEVIS
COUPLER
INSIDE COUPLER
OUTER COUPLER
A
A
KNOB
RH INNER ADJUSTER
LH INNER ADJUSTER
ADJUSTER ASSEMBLY
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
