ENGLISH
11
Understanding Your LCD TV

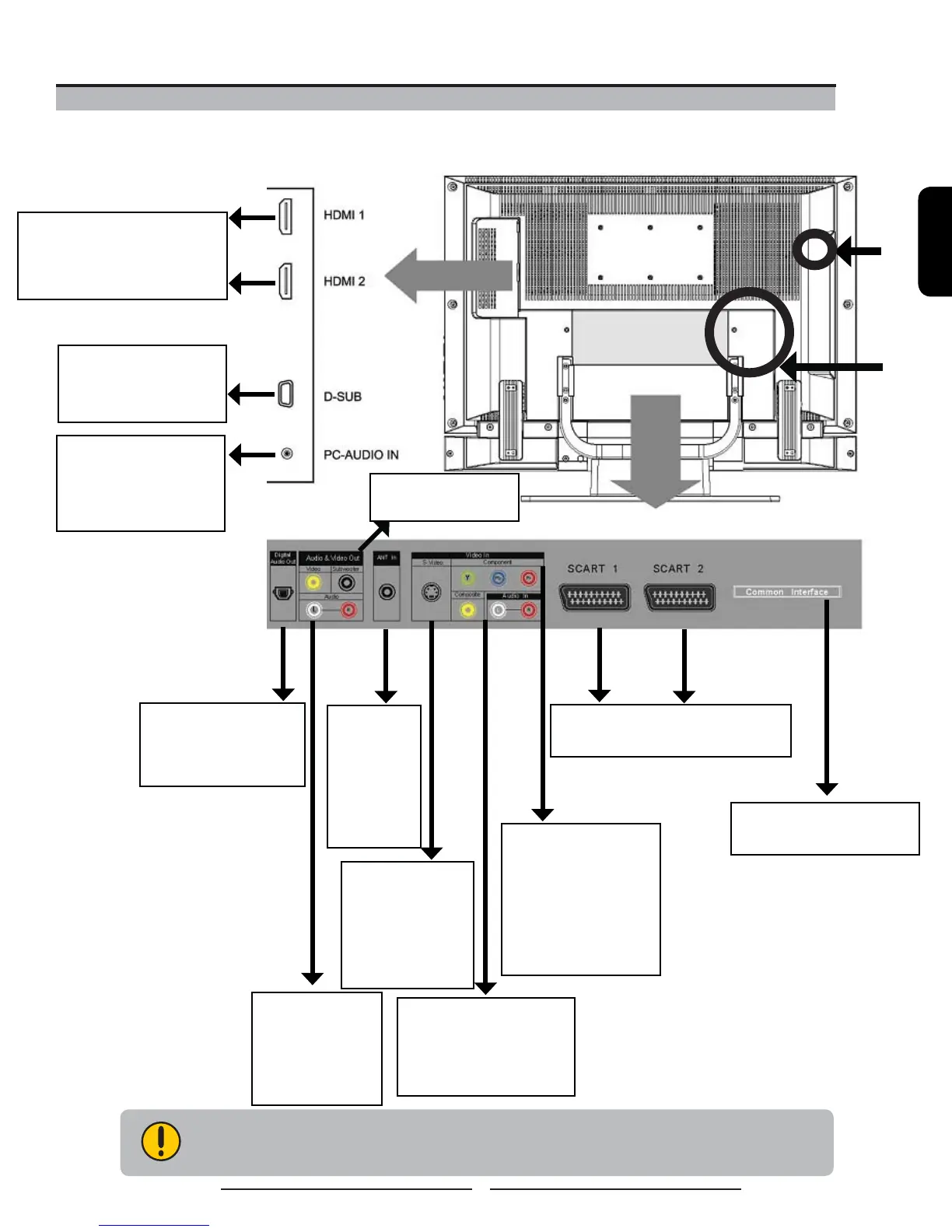

Back View of TV
NOTE:
Composite Audio Out (L/R): The level of audio output cannot be changed using the volume control on your display. This
connector should be used with an external audio amplifi er that can be used to control the volume.
HDMI 1 & HDMI 2 Inputs
Connect HD digital AV equipment
with the HDMI connector. HDMI
supports enhanced, high-defi nition
video and two-channel digital audio.
D-SUB (VGA) Input
Connect to a Personal
Computer, or other AV
equipment with VGA.
Composite A/V Inputs
Connect to the Composite
VIDEO and AUDIO (L/R)
outputs on external equipment
video using the yellow, red, and
white composite cables.
S-VIDEO Input
Connect to the S-
VIDEO and AUDIO (L/
R) outputs on external
video equipment.
Use in conjunction
with composite audio
cables (red and white).
ANT IN
Connect
antenna cable
to the ANT IN
from antenna to
receive
standard or
digital
television.
Composite A/V
Outputs
Connect to the Composite
VIDEO and AUDIO (L/R)
inputs on AV equipment
using the yellow, red, and
white composite cables.
PC AUDIO IN
Connect to a Personal
Computer, or other AV
equipment using an Audio
Cable. Provides audio for D-
SUB (VGA) connection.
Component Inputs
Connect to a DVD player,
Digital Set-Top-Box, or
other A/V equipment with
component (YPbPr) A/V
inputs using green, blue,
and red component cables.
Use in conjunction with
composite audio cables
(red and white).
Subwoofer Output
Connect to a Subwoofer
or Speaker System.
DIGITAL AUDIO
Output
Connect to the DIGITAL
AUDIO jack on the digital or
standard 5.1 audio system.
SCART 1 & SCART 2 Inputs
Connect to the SCART output on external
video equipment using a SCART cable.
AC Power
Switch
AC Power
Cord Input
Common Interface
Common interface slot for future
use with Pay-to-View Channels.
To Next Page
