4 - 29
e. Rotate Clutch Gear until bottom and top of Mid-Link is visible (Figure 4-38).
f. Using a dental pick or a slotted narrow blade flat screwdriver, remove the Mid-Link from the
Re-cock Link.

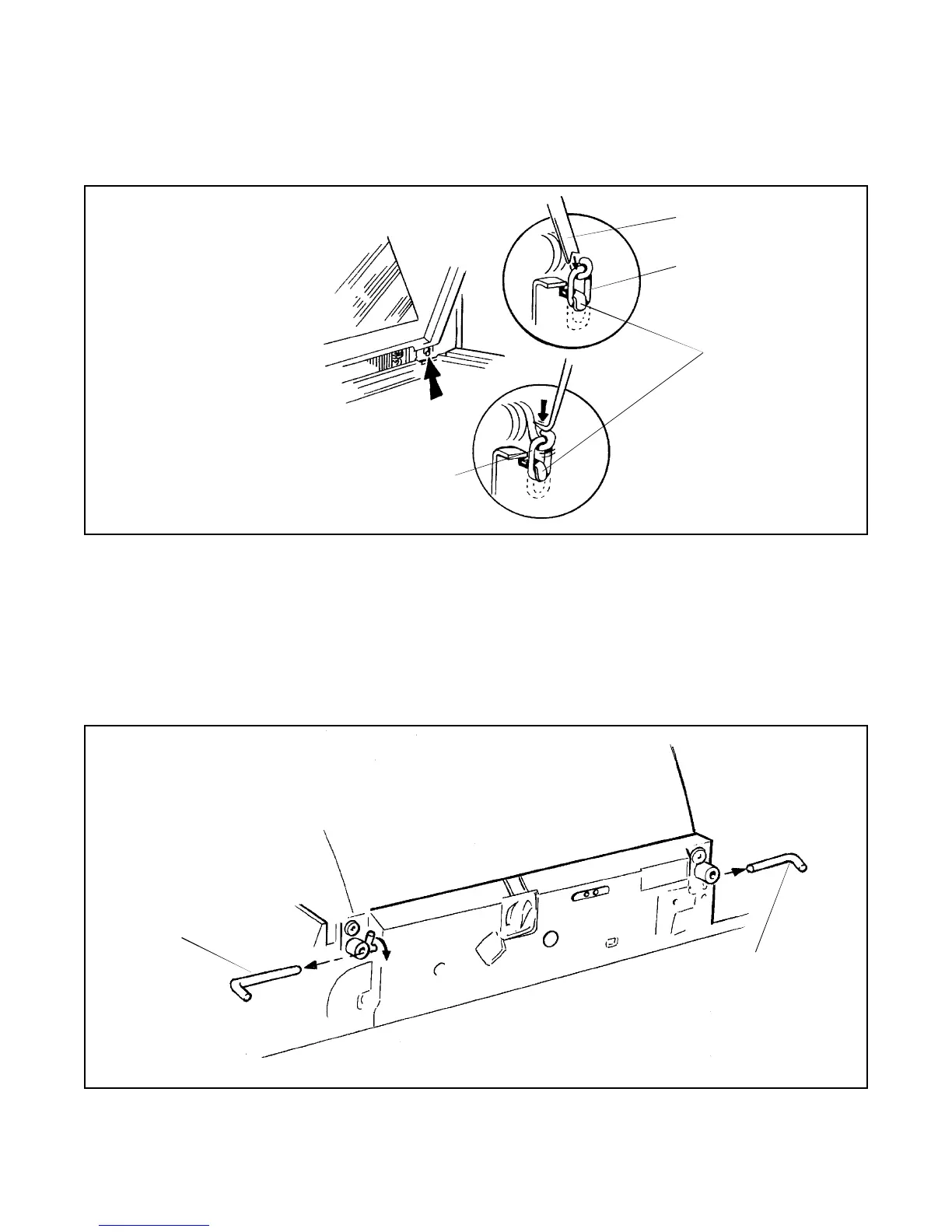

Figure 4-38. Removal of Mid-Link
g. Using tweezers, remove the Mirror Carrier hinge pins (Figure 4-39) to release the VMC/
Bellows Assembly and theTaking Mirror Carrier Assembly from the Main Body of the camera.
h. Lift off VMC/Bellows Assembly and the Taking Mirror Carrier Assembly. Keep Assemblies
together.
Figure 4-39. Removal of Mirror Carrier Hinge Pins
MID-LINK
HINGE PIN (LONG)
HINGE PIN (SHORT)
RECOCK LINK
SLOTTED NARROW
BLADE SCREWDRIVER
MID-LINK
MID-LINK
