4 - 9
Left Hand Grip and Bottom Chute Cover
1. Removal (Figure 4-5)
a. Open the camera door.
b. Using a square drive, remove the two (2) long neck strap screws that clamps the Left Hand Grip
andBottom Chute Cover to the Main Frame of the camera.
c. Gently lift off the Left Hand Grip and the Bottom Chute Cover. If necessary, use a solder aid
tool to separate the two parts from the Main Frame of the camera.

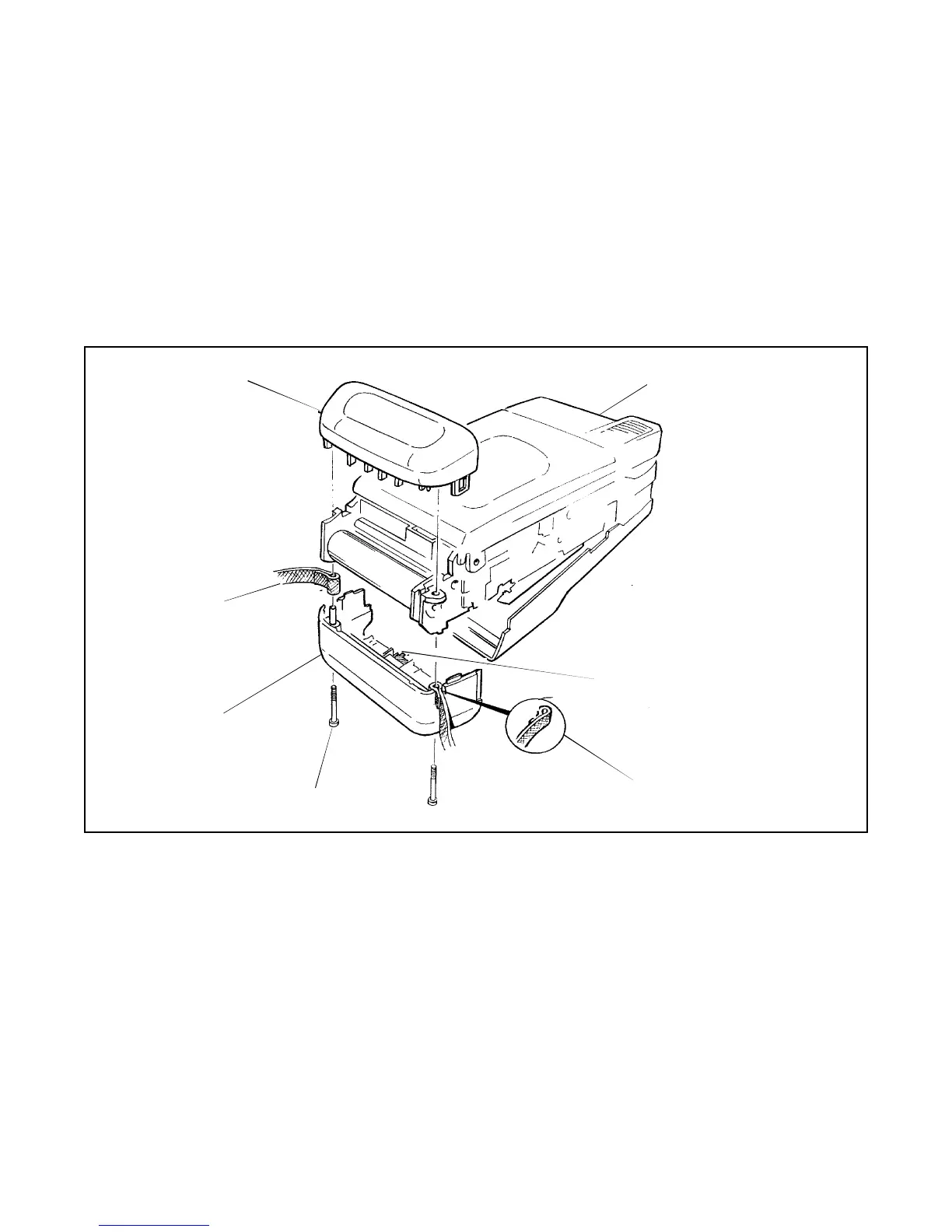

Figure 4-5. Removal of Left Hand Grip and Bottom Chute Cover
2. Reassembly
To reinstall the Left Hand Grip and Bottom Chute Cover, follow the removal steps in reverse order.
Note: When re-installing the Left Hand Grip and the Bottom Chute Cover make sure:
• Cover latch is released (to release push up metal tab).
• Neck Strap is properly positioned around the screw posts (Short side of the strap faces in
on both sides).
• Neck Strap MUST be re-installed or light leaks may occur.
• Both long neck screws MUST be tight or light leaks may occur.
LEFT HAND
GRIP
CAMERA
STRAP
BOTTOM CHUTE
COVER
SHORT SIDE OF
STRAP FACES IN
COVER LATCH
LONG NECK
SCREWS
CAMERA DOOR
