Polaroid Joshua Vision User Manual

4 - 28
Erect System (VMC/Bellows and Taking Mirror Carrier Assemblies)
1. Disassembly
a. Using a narrow blade flat screwdriver, lift tabs (Figure 4-36) to release VMC/Bellows
Assembly (Rubber Boot).

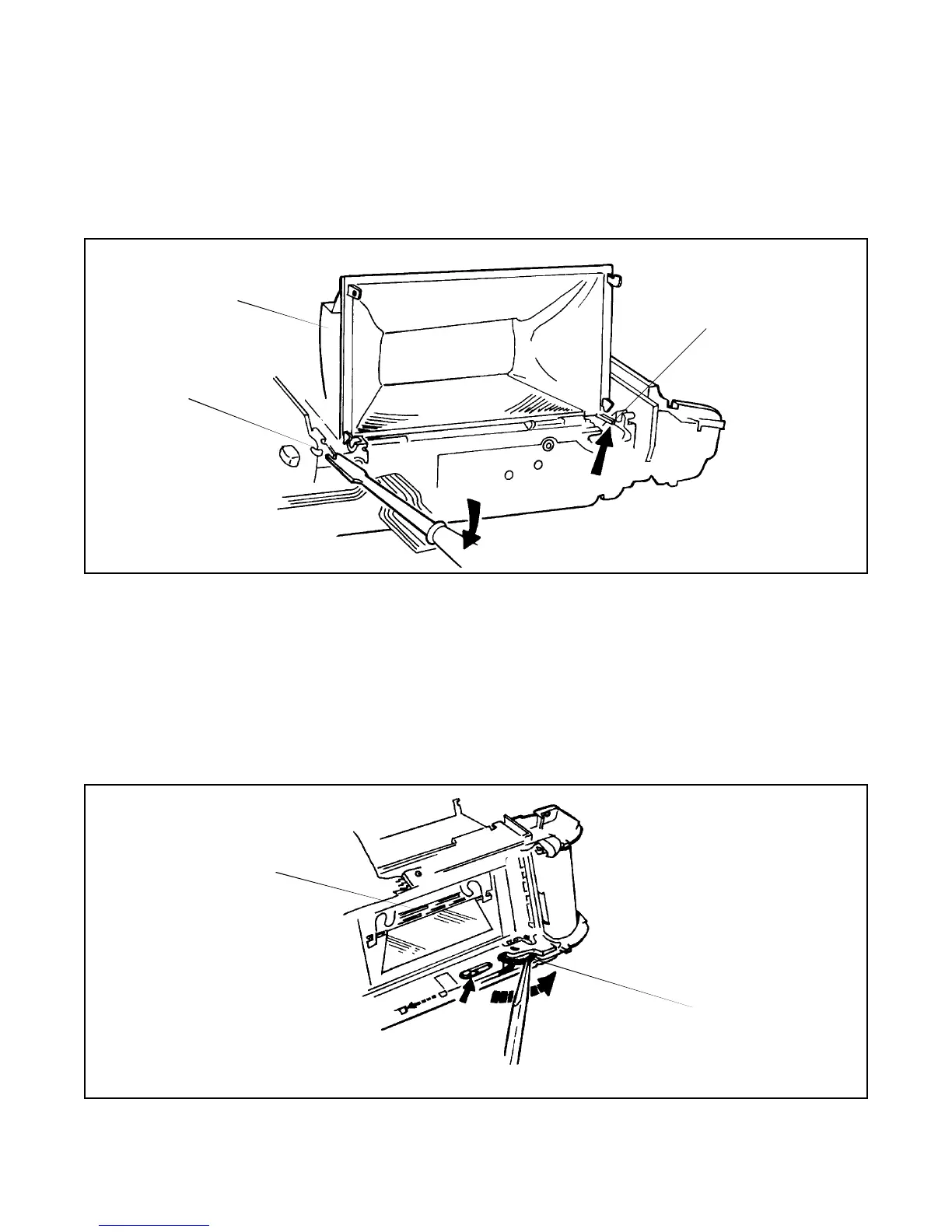

Figure 4-36. Release Boot Tabs
b. Rotate the Clutch Gear (Figure 4-37) counter clockwise (CCW) until the Pick retracts.
c. Rotate the Clutch Gear clockwise (CW) until the Mirror flys.
Note: Once the Mirror flys, remove the Baffle to facilitate the removal of the Mid-Link.
.
Figure 4-37. Retracting Pick
TAB
TAB
VMC/BELLOWS
ASSEMBLY
CLUTCH GEAR
BAFFLE
