3. Reassembly
To reassemble and reinstall the Rear Panel, follow the disassembly steps in reverse order.
Note: When installing the Rear Panel onto the Main Body of the camera make sure:
• Flat part of the Counter Window (Lens) is facing the bottom of the Control Panel
Decorative Plate.
• Self-Timer and Light/Dark Trim tabs (Figure 4-3) are positioned so that each one
properly inserts into the Main Body of the camera.

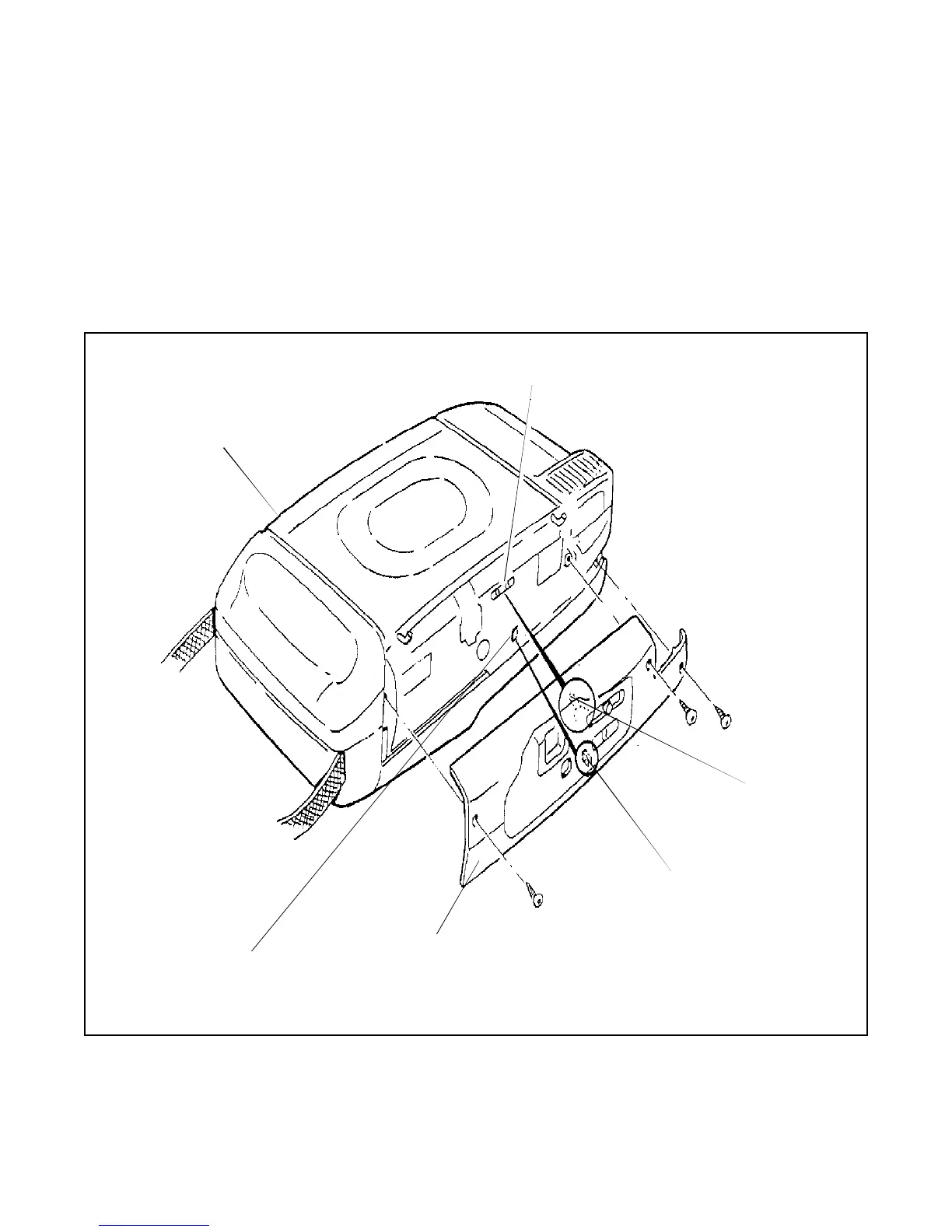

Figure 4-3. Location of Light/Dark Trim Tabs
CAMERA
BRIGHTNESS OVERRIDE
(LIGHT/DARK) SWITCH
SELF-TIMER TAB
LIGHT/DARK TAB
REAR PANEL
SELF-TIMER SWITCH
