Polaroid Joshua Vision

2 - 23
The End of Pack Switch (Figure 2-29) is operated by a cam on the Counter Wheel, when the Wheel reaches
the 0 position.

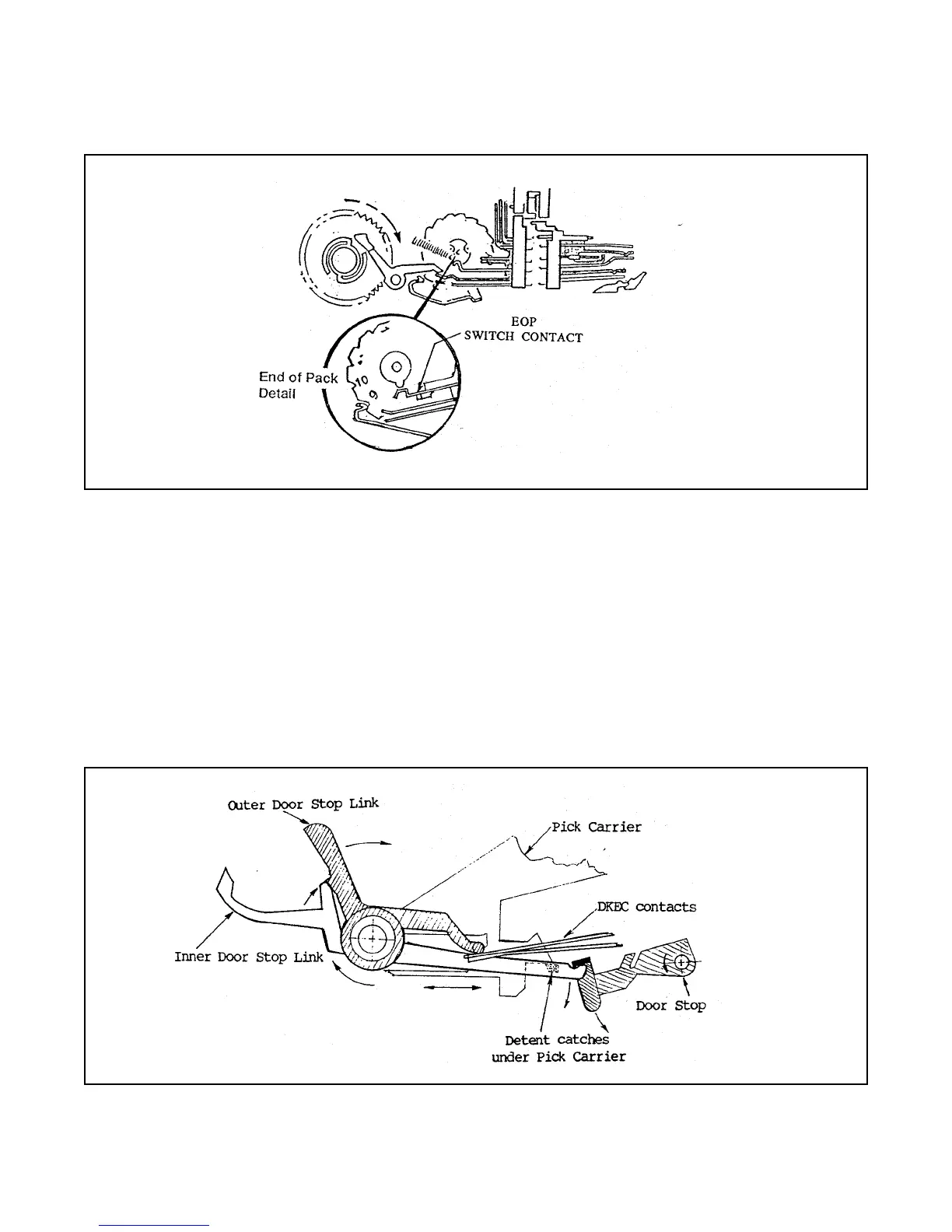

Figure 2-29. End of Pack (EOP) Switch and Counter Wheel Cam
Special Cases
Darkslide when Film Loading Door is Opened and Closed
When the Door is opened to remove/replace film or clean the Spread Rolls, the Pack Frame drives down the
Door Stop (See Figure 2-30).
Figure 2-30. Effect of Door Stop on Inner and Outer Door Stop Links and DKEC Switch
