2 - 16
Processing the Exposed Frame
The motor now runs forward, rotating the Timing Gear which cams the Outer Door Stop Link to close
DKEC (Figure 2-19).
Another cam, on the underside of the Timing Gear, drives the Pick Carrier forward (to the left) to its full
stroke and holds it there (Figure 2-20). A spring arm on the Pick Carrier indexes the Counter Wheel
(Figure 2-21).

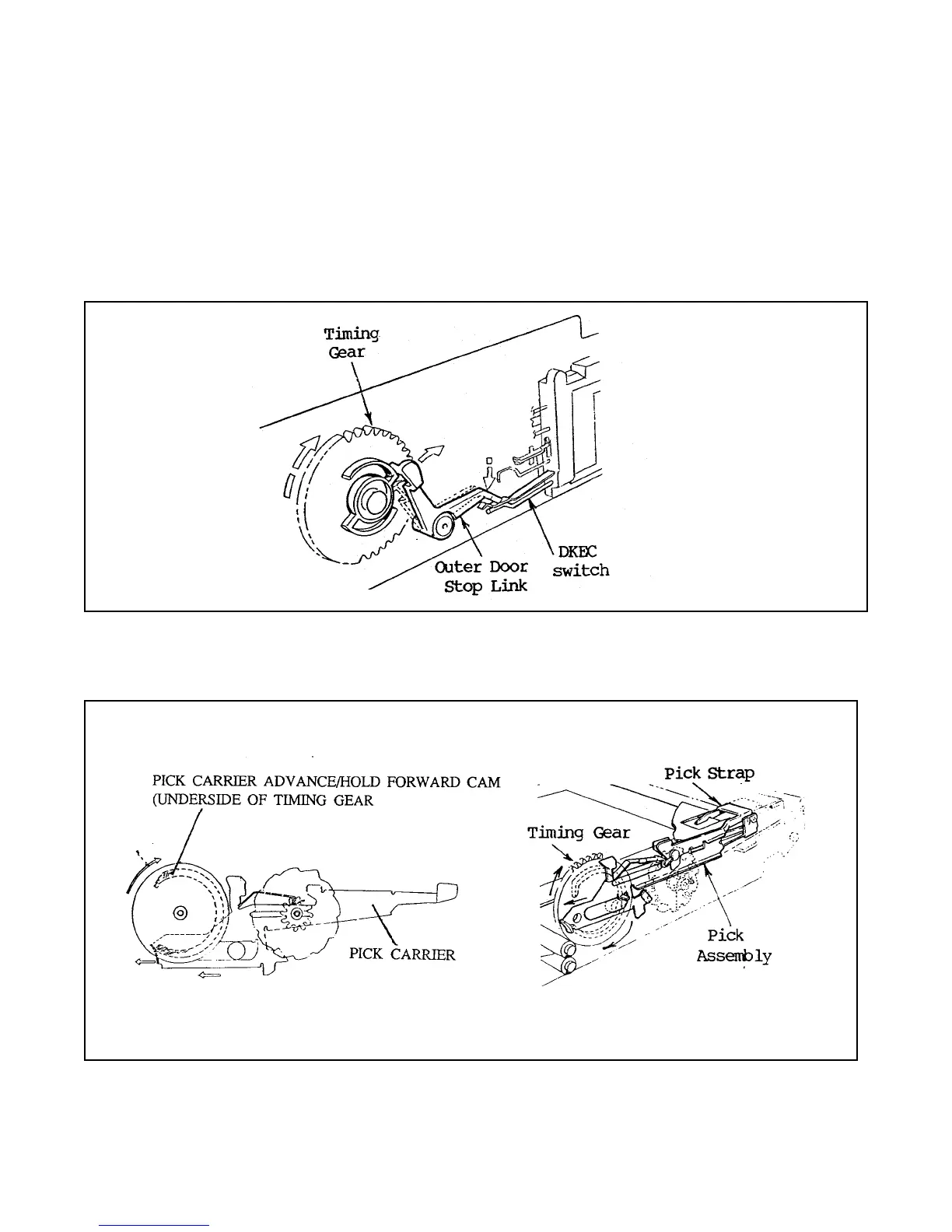

Figure 2-19. Timing Gear Cam Lifts Outer Door Stop Link to Close DKEC
Figure 2-20. Timing Gear Pick Advance cam (On Underside) Advances and
Holds Pick Assembly Forward
