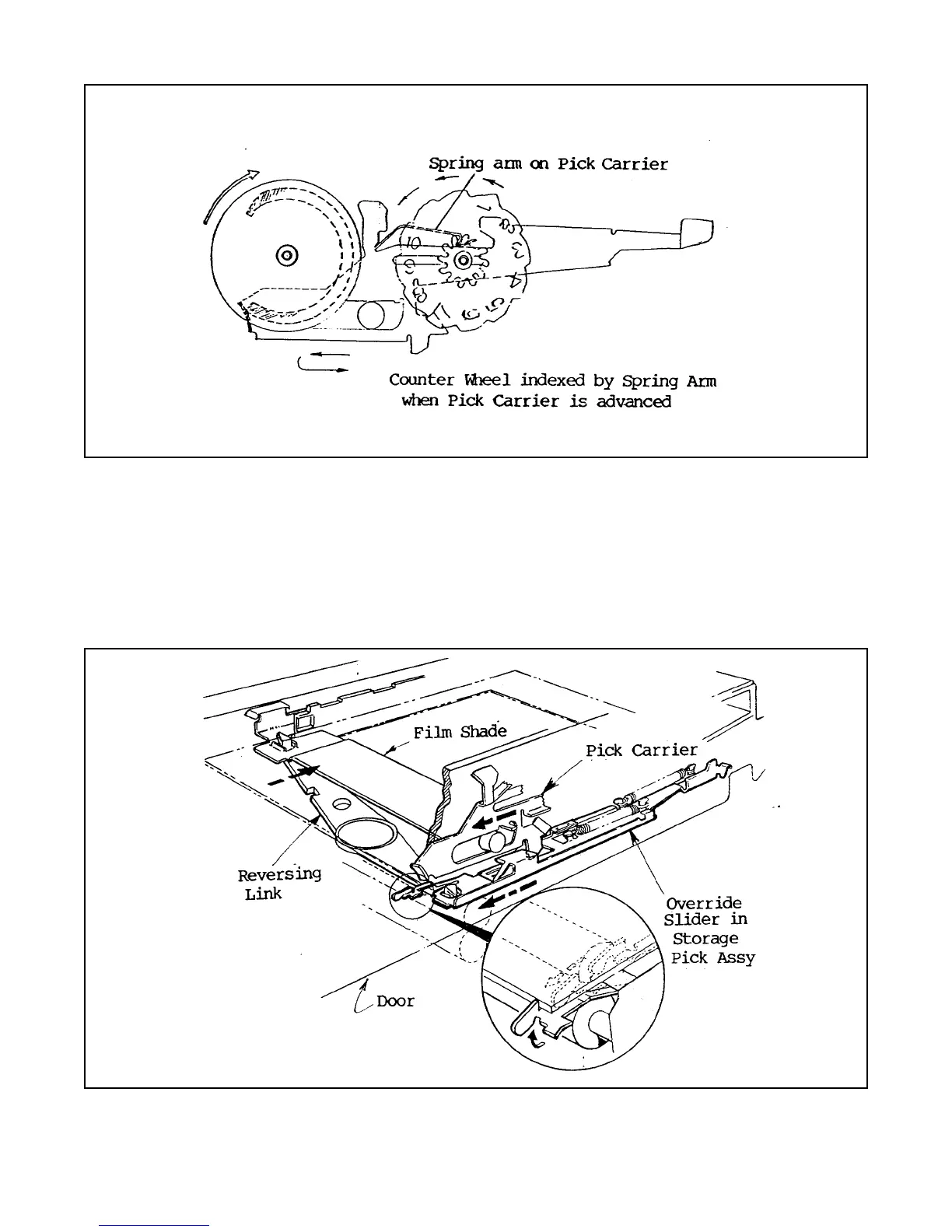

Figure 2-21. Spring Arm on Pick Carrier Indexes Counter Wheel
The Pick Carrier also drives the Override Slider in the Door. The Slider actuates the Film Shade through a
reversing linkage, moving the Film Shade into position to cover approximately the first 1.9 cm (.75") of
unexposed film (Figure 2-22).
Figure 2-22. Override Slider in Storage Pick Assembly Pivots Film Shade Actuator Link
