4 - 30
MID-LINK
2. Reassembly
To reassemble and reinstall the Erect System, follow the disassembly and removal steps in reverse
order.
Note: When re-installing the Erect System make sure it is installed as a single unit. Once it is
in position:
• Align the hinges of the VMC/Bellows and the Taking Mirror Carrier Assemblies to
the hinge posts on the Main Body of the camera.
• Install the hinge pins using needlenose pliers or tweezers.
• Rotate the Clutch Gear counter clockwise (CCW) until the Re-cock Link is visible.
• Install the Mid-Link to the Re-Cock Link (Figure 4-40) using the Mid-Link
Installation Tool.

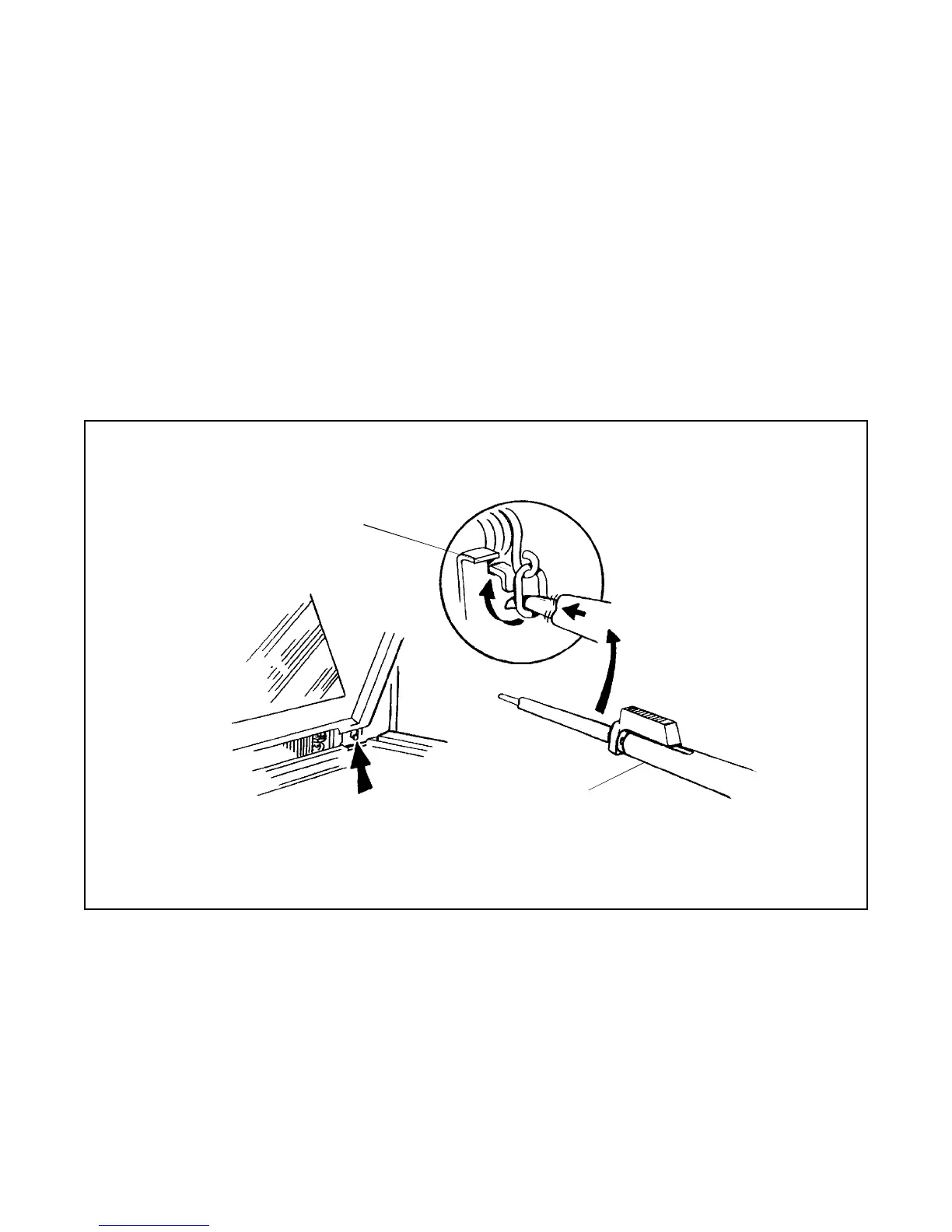

Figure 4-40. Installation of Mid-Link
MID-LINK
TOOL
RECOCK LINK
