Disassembly and Reassembly Procedures
Rear Panel
1. Removal (Figure 4-1)
a. Using a square drive, remove the three (3) screws that secures the Rear Panel to the Main
Body of the camera.
b. Using a solder aid tool, gently pry up the Rear Panel to release it from the Main Body of the
camera.
c. Lift off the Rear Panel.

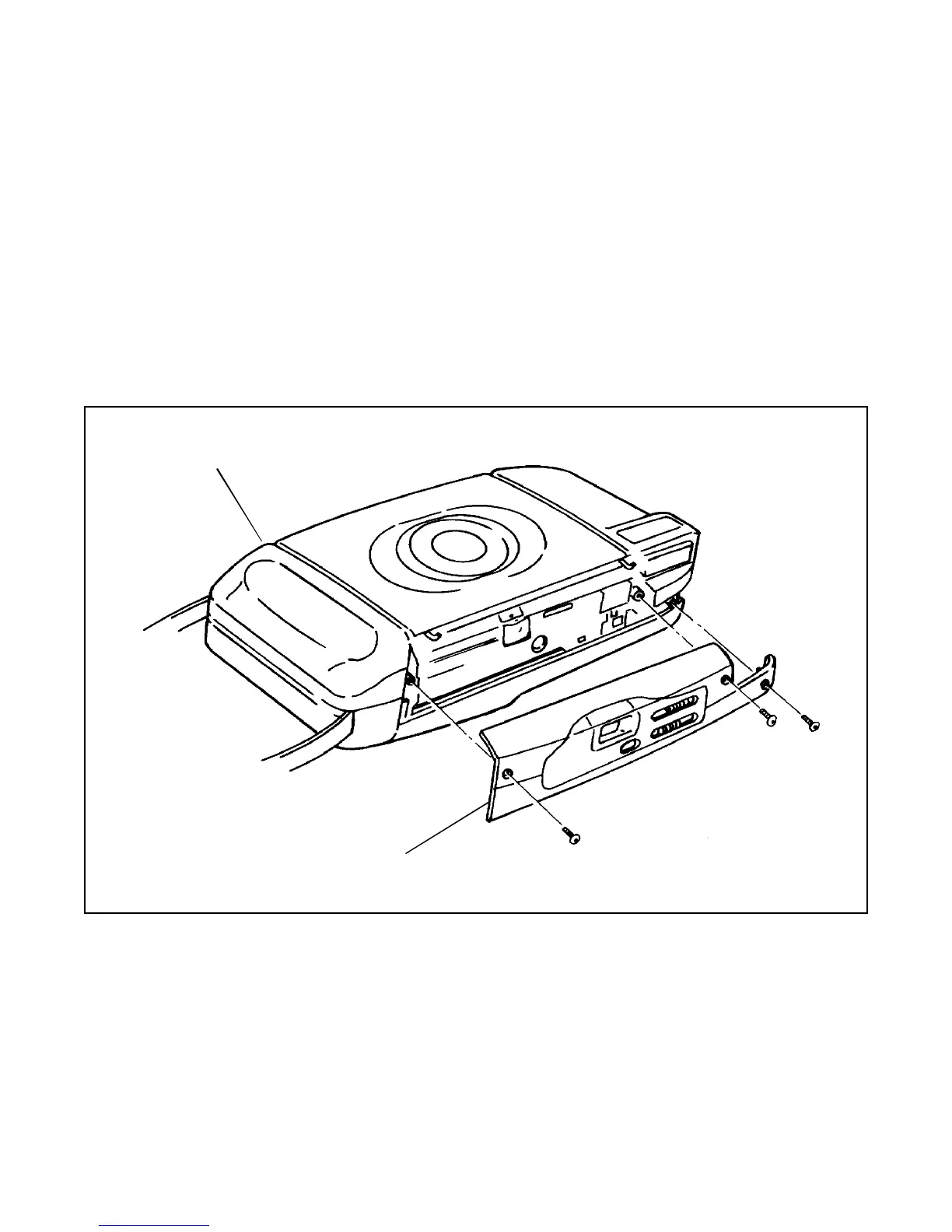

Figure 4-1. Removal of Rear Panel
2. Disassembly (Figure 4-2)
a. Using tweezers, remove the Self Timer Return Spring (Also used as Power Actuator Spring)
from the Self Timer Button.
b. Using a solder aid tool, gently pry up the Self Timer Button to release it from the Rear Panel. Lift
off the Self Timer Button.
CAMERA
REAR PANEL
