4 - 35
Main Frame (Gear Side - Inner)
1. Disassembly (Figure 4-43)
a. Using a square drive, remove the screw that secures the Gear Head Cover to the Main Body
of the camera. Lift off the Gear Head Cover.
b. Using the applicable tool (tweezers, needlenose pliers), remove the following from the Main
Frame:
• Gear #3
• Gear #2
• Gear #1
• Top Feed Roll
• Bottom Feed Roll
c. Using a small Phillips screwdriver, remove the two (2) screws that secures the D.C. Motor to the
Main Frame. Push out the D.C. Motor.

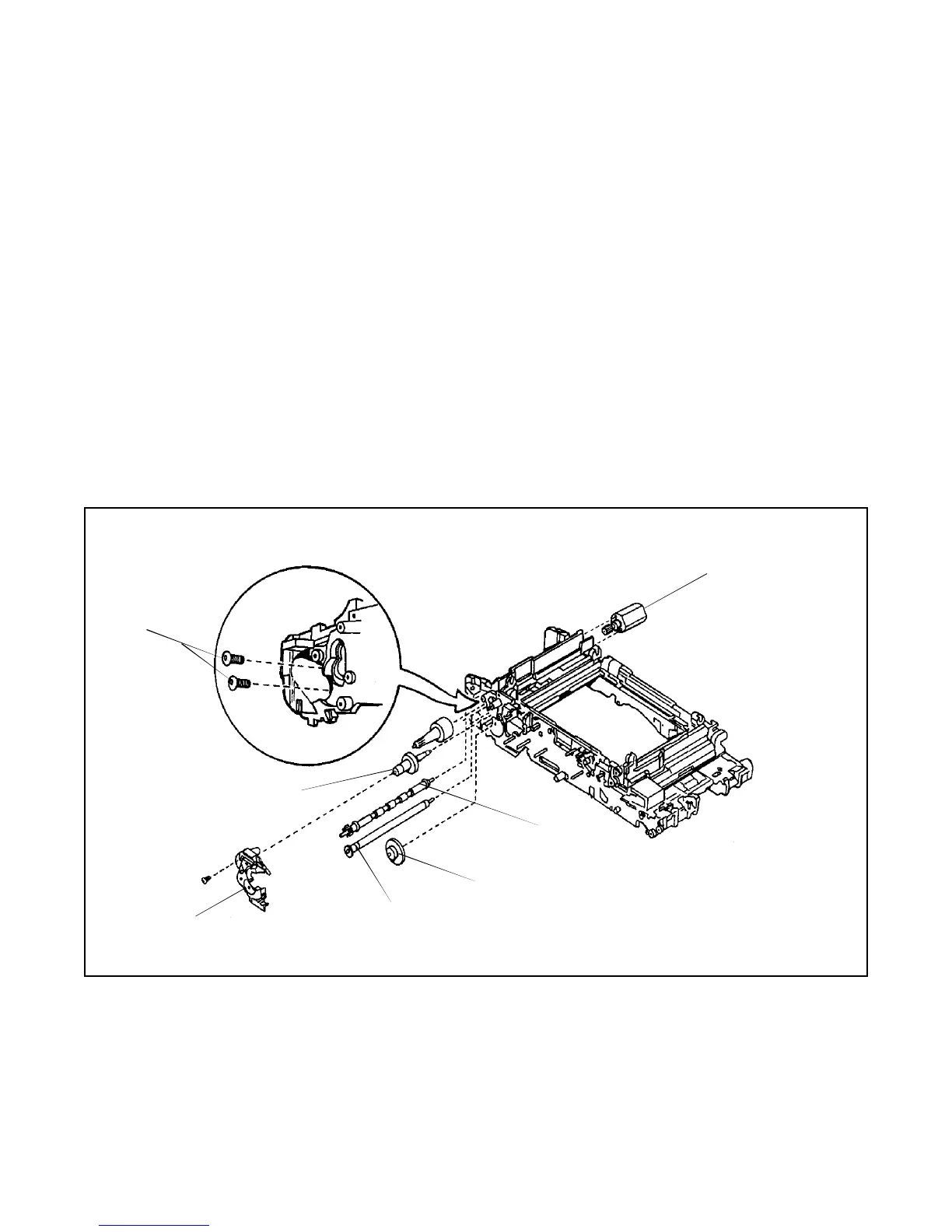

Figure 4-43. Disassembly of Main Frame (Gear Side - Inner)
2. Reassembly
To reassemble the Gear Side-Inner of the Main Frame of the camera, follow the disassembly steps
in reverse order.
GEAR #1
DC MOTOR
GEAR #2
GEAR HEAD
COVER
BOTTOM FEED
ROLL
GEAR #3
TOP FEED
ROLL
MOTOR
SCREWS
To Next Page
