4 - 8
Front Panel
1. Removal (Figure 4-4)
a. Using a square drive, remove the three (3) screws that secures the Front Panel to the Main
Body of the camera.
b. Using a solder aid tool, gently pry up the Front Panel to release it from the Main Body of the
camera.
c. Lift off the Front Panel being careful not to break its plastic locking tab.

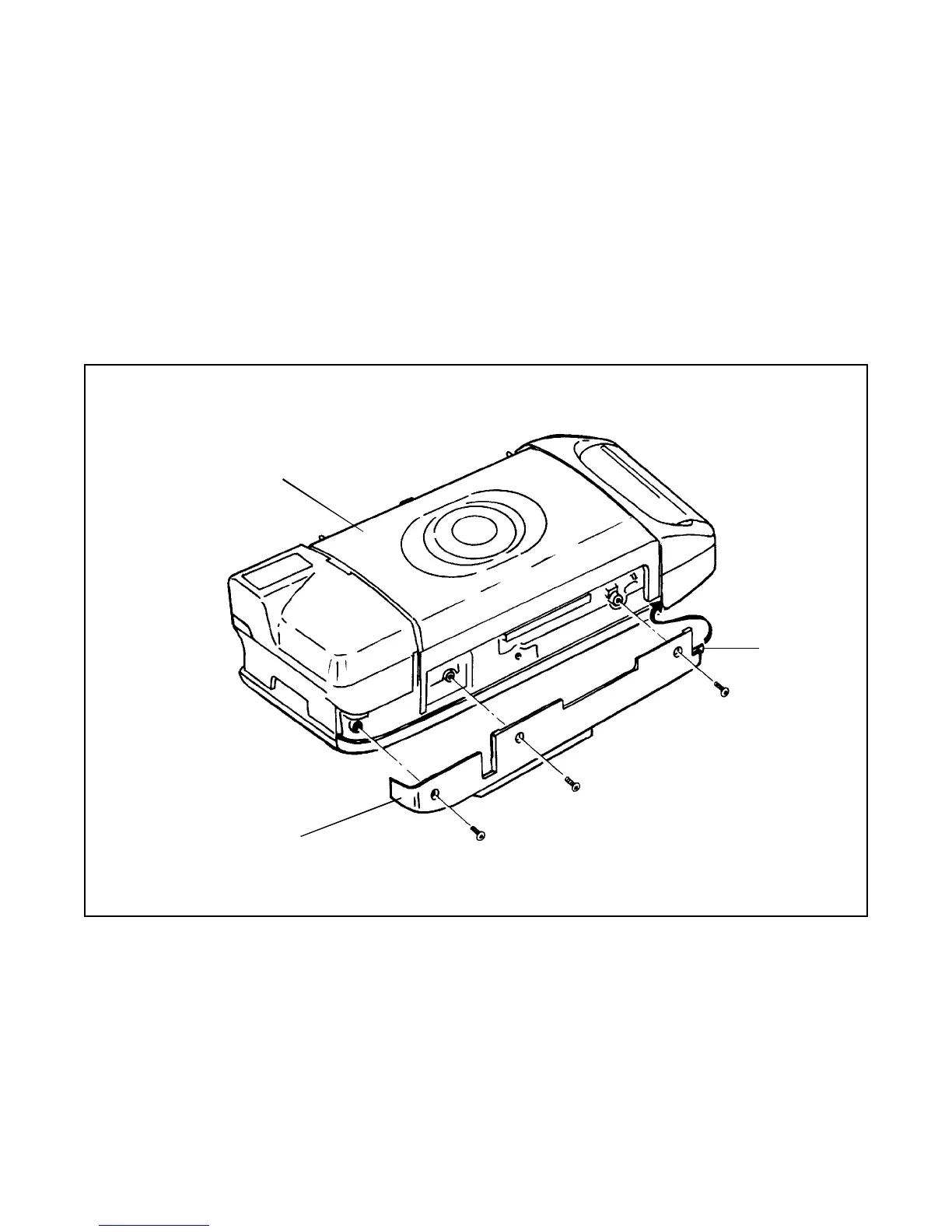

Figure 4-4. Removal of Front Panel
2. Reassembly
To reinstall the Front Panel, follow the removal steps in reverse order.
Note: When re-installing the Front Panel make sure the plastic locating tab is properly positioned
before inserting the Front Panel into the Main Body of the camera.
CAMERA
FRONT PANEL
PLASTIC
LOCKING
TAB
