The final stages of processing involve the frame being fed into the Spread Rolls and spread, and the Timing
Gear rotating to a position where the Pick Carrier Advance/Hold Forward cam on its underside allows the
Pick Carrier to retract under its own spring tension.
The Override Slider (part of the Storage Chamber Pick Assembly), under its own spring load, follows the
Pick Carrier. This causes the Chamber Pick first to advance and then retract (inset, Figure 2-27), pulling
the frame a short distance clear of the Spread Rolls and into the storage Chamber (Figure 2-27). This
prevents possible interference as the next frame moves through the Spread Rolls.
The Film Shade now retracts, and the Outer Door Stop Link opens the DKEC Switch a second time,
shutting off the motor.

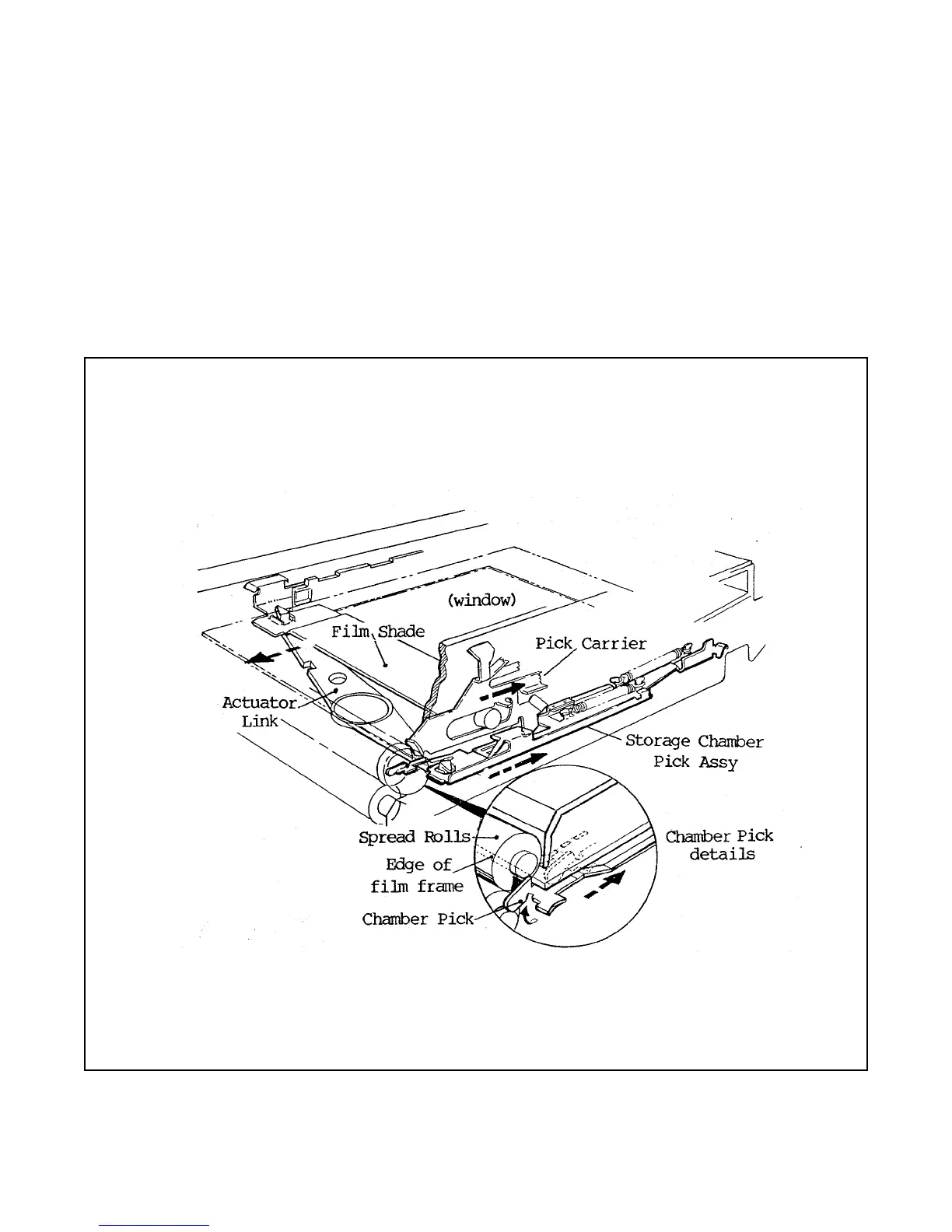

Figure 2-27. Chamber Pick Pulls Processed Frame Clear of Spread Rolls and intoCchamber
