n. Remove the Far Focus Lens from the Lens Mounting Plate (Figure 4-33) by removing the
following:
• Lift out the Lens Latch Spring
• Lift out the Lens Latch
• Push Blades towards solenoid # 1 to access Far Focus Lens. Lift out Far Focus Lens.

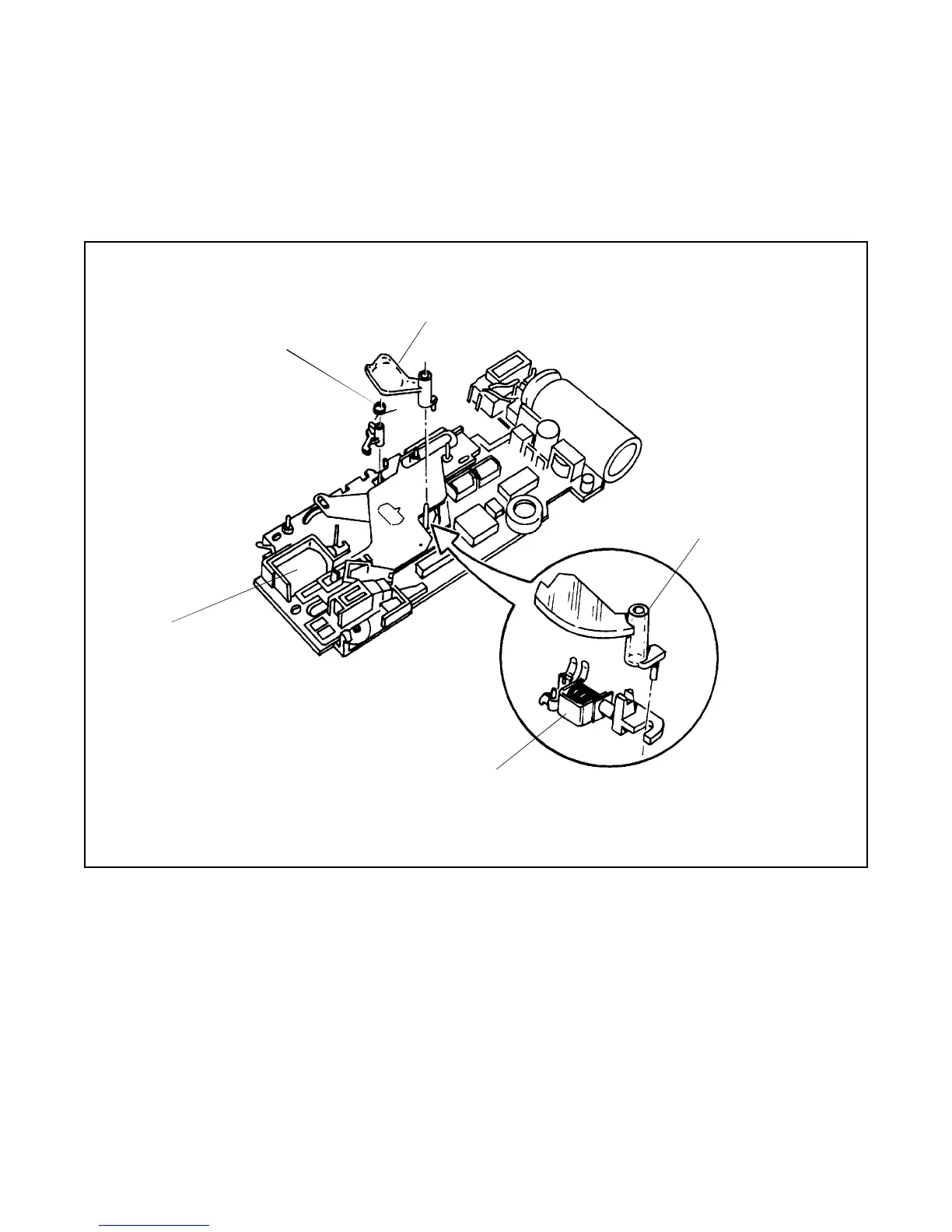

Figure 4-33. Removal of Far Focus Lens
o. Remove the PC Board from the Lens Mounting Plate. Pull PC board straight out (Figure 4-34)
to release it from Lens Mounting Plate.
p. Remove Blades from Lens Mounting Plate (Figure 4-35). If re-using the Blades, use gloves to
prevent oil deposits from getting on the Blades.
q. Remove Solenoid #1 from Lens Mounting Plate. Push up and then pull out to release it from
the Lens Mounting Plate (Figure 4-35).
SOLENOID #1
FAR FOCUS LENS
SOLENOID #2
FAR FOCUS LENS
LENS LATCH
SPRING
LENS LATCH
PLUNGER
(See Re-Assembly Note
on Page 4-27)
